CPU Processor

CPU  Interface LGA1700 Supports 12  Gen 13  Gen CPU

Chipset

Inte l H610

Power

2*12 PIN ATX

Supports  24PIN Standard ATX power input

2*4 PIN ATX

8PIN CPU power input,It is recommended to increase the power supply wattage according to the actual CPU power consumption and number of loads

Memory Support

2*DI MM-DDR4 memory slots support dual-channel DDR4 Max. 64G Memory

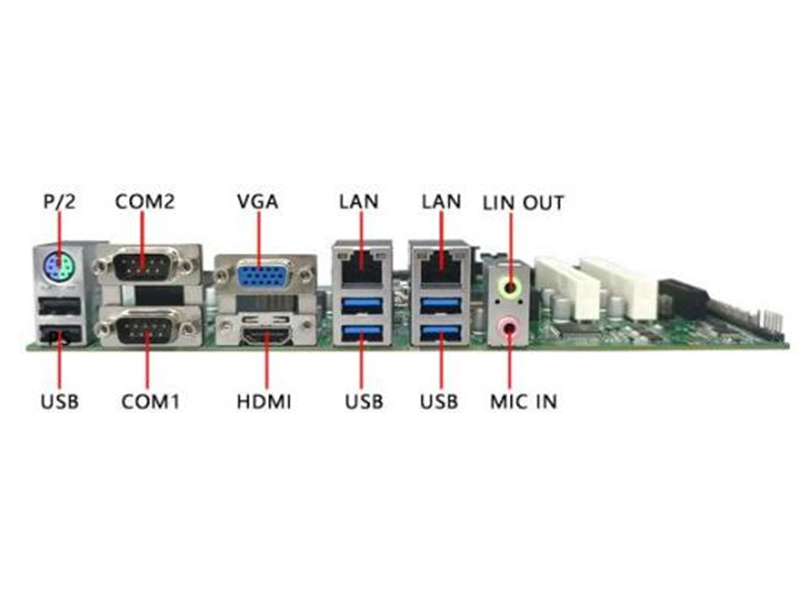

Display

1*VGA

Supports resolution 1920*1200@60Hz

1*HDMI

Supports maximum resolution 4096×2160@30Hz

Network

2*LAN Interface

RTL8111H Gigabit LAN

Audio

ALC897 Integrated digital audio decoding ,encoding-capable onboard Codec(codec），integrates DAC/ADC and digital processing module, capable of decoding digital signals into analog signals , meeting HD Audio output requirements

1*AUDIO Interface

Supports  OUT audio output(green)and MIC recording function (pink)

1*F_AUDIO Header

Standard audio header                                                                  （9Pin ，2*5Pin ，2.54mm）

Storage

3*SATA Interface

Standard SATA 7PIN 3.0 drive interface ; maximum transfer rate 6.0 Gbps

PCIE_M2

Supports  M.2     NVME/ SATA protocol

USB Function

4*USB3.0 Interface

USB3.0 port (blue)

2*USB2.0 Interface

USB2.0 port (black)

2*FUSB Header

Onboard 2  FUSB Header ,can be used for external USB expansion;

  （9Pin ，2*5Pin ，2.54mm  ）

Keyboard

PS2 Interface

Supports keyboard and mouse

Switch

1*JFP Header

Power switch, power LED, HDD LED and reset header

（10Pin ，2*5Pin ，2.54mm  ）

Auto Power-on

AT_ATX Header

Install the jumper cap for auto power-on                         (3Pin ，1*3Pin ，2.54mm  ）

Expansion Slots

1*PCI Ex4  Slot                   1*PCIE16X  Slot                     2*PCI Slot

Fan

1*SYS-FAN Socket

1*3PIN smart speed-control fan , supports speed detection (3Pin ，1*3Pin ，2.54mm）

1*CPU-FAN Socket

1*4PIN smart speed-control fan , supports intelligent speed control; supports speed detection

 （4Pin ，1*4Pin ，2.54mm）

Serial Port

6*COM

All support RS232 standard protocol, where COM1、COM2 uses dual-layer DB9 ports, supports RS232 and RS485 protocol,COM3-COM6 uses 2X18pin, 2.0mm Header

Other

JCMOS Header

Short to clear CMOS settings   (3Pin ，1*3Pin ，2.54mm）

JLPC Header

LPC bus low-level debug interface

JLPT Header

Compatible with IEEE 1284 parallel port standard ,mainly used to expand LPT  parallel  Interface , used to connect legacy dot-matrix / inkjet printprinters, industrial equipment, programmers and other parallel peripherals

Operating Environment

Operating temperature ：0℃ ~60℃;          Operating humidity ：5%~95%RH , non-condensing

BIOS

AMI UEFI   BIOS

Watch Dog

Watchdog programming , supports hardware reset function (256 levels ，0~255 seconds） ，Supports auto power-on , scheduled power-on

Operating System

Supports  Windows 10 ，Windows11,   LINUX System

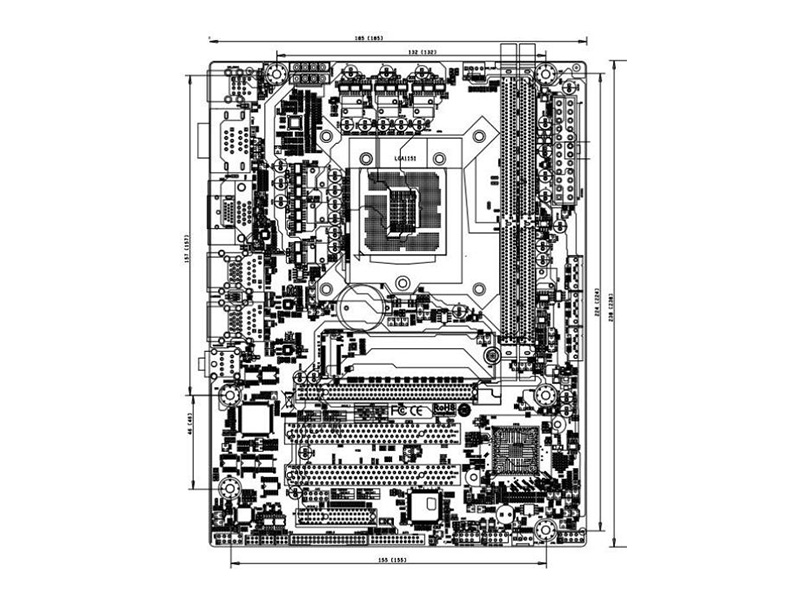

AOS-MSH612L6C

LGA1700 socket, supports Intel12 Gen,13 th Gen Core G6900、G7400、i3-12100、i3-13100、i5-12400、i5-12400F、i5-13400、i5-13400F、i7-12700、i7-13700、i9-12900、i9-13900 Processor
