AOS-RK3568
Product introduction：
Parameter introduction
Android development board
Rockchip RK3568 CPU
Supports 2G memory, 16G storage

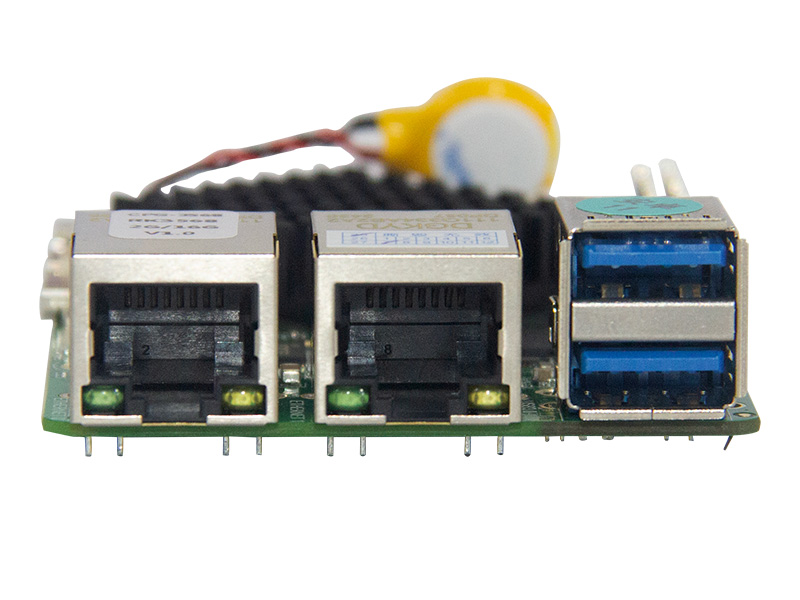

Supports 2×RJ45 Gigabit Ethernet ports
Supports 2×3.0USB, 2×Micro HDMl, 2×MIPI DSl
Supports type-C power supply interface
Size 85mm (L) × 56mm (W) × 17mm (H)
The product complies with CE FCC ROHS specifications
System supports Android 13
Specifications
Function & Interface | Detailed Description |
CPU | RK3568 Cortex-A55 quad-core, up to 2.0GHz |
DDR | LPDDR4 2GB (4GB|8GB optional) |
Storage | The default comes with an 16GB EMMC NAND chip that can scale up to 128GB |
HDMI Output | 2 Micro HDMI 2.0 display interface supports up to 4K@60FPS output |
MIPI-DSI | 2-way 31-Pin FPC MIPI-DSI display port supporting up to 1920x1200 |
MIPI CSI | 1-way MIPI CSI interface, up to 16 megapixel MIPI camera support |
USB 2.0 Interface | 2 USB horizontal connectors ( 1 USB3.0 and 1 USB3.0-OTG), 2 built-in USB2.0 host |
Serial Port | 1 1.25mm 3-pin built-in serial port |
Micro SD Card | Self-elastic micro SD card socket, up to 256GB capacity |
WiFi | Built-in high performance SDIO interface WiFi6 module, support IEEE 802.11 b/g/n/ax |
Bluetooth | Built-in high performance UART interface BT module with support for V2.1+EDR/BT v3.0/BT v3.0+HS/BT v5.2 |
Ethernet | 2-way 10/100/1000M Adaptive Ethernet RJ45 connector + 4-Pin POE header |
Fan Control | One FAN port |
GPIO Interface | 40pin 2.54mm pin: Supports I2S, CAN, I2Cx3, UARTx5, PWMx2, SPI, GPIO interfaces |
PCIe 2.0 | 16pin PCIe 2.0 FPC port expands PCIe peripherals |
Real Time Clock | Ultra-low-power RTC circuit (CR1220 battery) with timer and alarm functionalities |
LED Indicator | Blue LED indicator for running |
Buttons | Recovery mode button, power switch button and reset button |
DC Input | Supports 5V-2A voltage DC power input (type-c) |
Ambient Requirement | Working temperature -20°C ~ 70°C, working humidity 0%~95% (non-condensing) |
Physical Size | Length*Width*Height (85mm*56mm*17mm), PCB top side height 16mm |
Operating System | Recommended Android 11，optional Android 11/12, Linux Buildroot/Debian 11/Ubuntu-20.04, Tongxin UOS and OpenHarmony 4.0 |
Dimensional drawing
Ordering information
Ordering information | illustrate |
AOS-3568 | Android RK3568 CPU, 1G memory, 8G SSD storage |
Android RK3568 CPU, 2G memory, 16G SSD storage | |
Android RK3568 CPU, 4G memory, 32G SSD storage |
Applications
Industrial computers, industrial tablets, self-service terminals, all-in-one kiosks, medical devices,
digital signage, POS registers, etc.
