AOS-H610AGD
Product introduction£º
Product introduction
COM-E module industrial motherboard (custom size 175*190mm)
AdlerLake-S H610 12-14 generation I3 12100/I5/I7 14700 CPU
Support asynchronous three-four displays (HDMI+DP +VGA+LVDS)
Support independent display (GT1030/RX550/1050TI/1060/3080 2-16G)
Support Gigabit network port (optional dual network port), 1*HDMI IN (optional)
Support dual-channel DDR5 memory, maximum support 96G
Support 1*SATA3.0/MSATA/M.22280 NGFF/MVME interface
2*USB2.0, 4*USB3.0, 1*type-c, 1*PCIEX16, 6*RS232
Support network wake-up, power-on, watchdog, etc.
Products comply with CE FCC ROHS specifications
AOS-MMH610OA
COM Express Modules
COM-E Modular Industrial Motherboard (Custom Size 175*190mm)
Adler Lake-S H610 12th-14th Generation Intel Core i3 12100/I5/I7 14700 CPU
Supports asynchronous triple- and quad-display (HDMI+DP+VGA+LVDS)
Supports discrete graphics (GT1030/RX550/1050Ti/1060/3080 2-16GB)
Supports Gigabit Ethernet (optional dual Ethernet), 1 HDMI IN (optional)
Supports dual-channel DDR5 RAM, up to 96GB
Supports 1 SATA 3.0/MSATA/M.22280 NGFF/MVME port
2 USB 2.0, 4 USB 3.0, 1 Type-C, 1 PCI Express 16, 6 RS232
Supports Wake-on-LAN, Power-on, Watchdog Timer, etc.
Complies with CE, FCC, and ROHS regulations
Specifications
Processor | CPU | Support Intel Core 12-13-14th CPU i3-12100 (3.3GHz/4 CORE/8 threads/12MB/HD730/14nm/60W/LGA1700) |
Chipset | Intel® H610/B660/Q670 | |
BIOS | AMI 32Mbit, supports diskless boot, network wake-up, power-on, watchdog and other functions | |
Memory | Capacity | 8GB SO-DIMM DDR5 4800MHz memory , Max.96GB |
Storage | SATA interface MSATA interface M.2 interface
| 1*SATA 3.0 1*MSATA 1*M.2 Key M NVME 2280 1*M.2 Key M SATA 2280 |
show | Chipset
Output
| CPU integrated graphics card HD Graphics VGA+HDMI+DP+LVDS Single display, dual display, triple, quad display (synchronous/asynchronous display) 1 ¡Á VGA (Maximum supported resolution: 1920¡Á1080) 1 ¡Á HDMI (Maximum supported resolution: 3840x2160 60HZ) 1 ¡Á DP (Maximum supported resolution: 7680x4320 60HZ)
|
show | Independent graphics card output
Optional independent graphics card models and display output channels | HDMI+HDMI+HDMI+DP single display, dual display, triple display, quad display (synchronous/asynchronous display) 1 ¡Á HDMI (maximum supported resolution: 3840x2160) 1 ¡Á HDMI (maximum supported resolution: 3840x2160) 1 ¡Á DP (maximum supported resolution: 3840x2160/7860*4320) GTX1030 2GB(HDMI/DP) GTX1050 2GB(HDMI/HDMI/DP) RX550 4GB(HDMI/HDMI/HDMI) GTX1050TI 4GB(HDMI/HDMI/DP) GTX1650 4GB(HDMI/HDMI/DP) GTX1060 6GB(HDMI/HDMI/DP) GTX1070 8GB(HDMI/DP/DP) GTX1080 8GB(HDMI/DP/DP) RTX3050 6GB(HDMI/HDMI/DP) RTX3050 8GB(HDMI/HDMI/DP) RTX3060 6-12GB(HDMI/HDMI/DP) RTX3070 8GB(HDMI/HDMI/DP) RTX3080 16GB(HDMI/HDMI/DP) RTX4060 8GB(HDMI/HDMI/DP)
A1000 4G(DP/DP) A2000 8G(DP/DP) T1000 4G(DP/DP) P1000 4G(DP/DP) P2000 4G(DP/DP) P3000 6G(DP/DP) |
Network | Chip WIFI/3G/4G | 1 ¡Á 10/100/1000M£¨RJ45 LAN£©Optional dual network ports 1 x WIFI Module support 802.11b/g/n £¨M.2 PCIE half card£© |
I/O | USB 3.0 USB2.0 Type-c COM Power button Reset OPS interface LED light DC JACK one-key restore Audio | 3¡Á USB3.0 (B660/H670 chip can support 6 USB3.0) 3¡Á USB2.0 1x Type-c 1x COM optional 1 ¡Á power button 1 ¡Á Reset button 1 ¡Á OPS interface (80pin) 1 x power indicator light & 1x hard disk indicator light 1 ¡Á DC JACK 1 x one-key restore 1 ¡Á LINE-OUT & MIC-IN £¬Integrated 6-channel sound effect |
Onboardfunctions | COM port USB2.0 PCIEX4 MINI PCIE M.2 LVDS GPIO COM-E VGA SPK PANEL SATA
| 6*RS232 (2 of which are optional RS422/485) optional (default single COM) 1*USB pin (expandable to 2*USB2.0) supports up to 4 sets of USB2.0 1*PCIEX16£¨MXM£© 1*MINIPCIE(3G/4G) 1*M.2 WIFI/5G 1*LVDS 1*8-input 8-output GPIO 1*COME (optional) 1*JVGA (optional) 1*SPK£¨3-5W£© 1*Front panel 1*SATA
|
Power supply | Input Rated power consumption | DC JACK 12V-19V 60W |
Watchdog | Output Interval | nterrupt, system restart 255-level timer interval Operating |
Physical parameters | Dimensions | 175mm (L) x 190mm (W) |
Environment | Temperature Humidity | temperature: 0¡ãC ~50¡ãC Storage temperature: -20~70¡ãC 5%~90% non-condensing |
Operating system | Version | Windows 10/Windows 11/ Linux |
Ordering information
Sales model | Description |
AOS-MMH610OA-L1 | 12-13-14th i3/i5/i7 CPU(Single network singleCOM) |
AOS-MMH610OA-L2 | 12-13-14th i3/i5/i7 CPU(Dual network6COM) |
AOS- MMH610OA-L3 | 12-13-14th i3/i5/i7 CPU(Dual network 6COM+MXM£¨Graphics card) |
Dimensions
Baseboard (AOS-MOH610AGD)
COM Express Baseboard Module
COM-E Module Industrial Motherboard (Custom Size)
Supports Alder Lake-S 12-13-14th Generation Intel Core i3/i5/i7 (i5 12400)
Supports 4-6 Intel RJ45 ports (PoE optional, 2 fiber ports optional)
Supports Gigabit Ethernet and asynchronous triple displays (HDMI + DP + LVDS)
Supports dual 3G/4G communication modules
Supports 6 COM ports, 16-input/16-output GPIO
Supports 1 x M.2 (NVME), 1 x PCI Express 4, 4 x USB 3.0
Supports Wake-on-LAN, Power-on, Watchdog Timer, etc.
Specifications
Processor | CPU | Support Intel® Alder LAKE Core 12-13-14th CPU i3-12100 (3.3GHz/4 CORE/8 threads/12MB/HD730/14nm/60W/LGA1700) |
Chipset | Intel® H610/B660/H670/Q670 | |
BIOS | AMI 32Mbit, supports diskless boot, network wake-up, power-on boot, watchdog and other functions | |
Memory | Capacity | 4GB 2*DDR5 4800 MHz memory , Max.96GB |
Storage | SATA interface M.2 interface MSATA interface | 1*SATA 3.0 1*M.2 Key M NVME/SATA 2280 1*MSATA |
Display | Chipset Output
| CPU integrated graphics card HD Graphics DP+2*HDMI+LVDS single display, dual display, triple display (synchronous/asynchronous display) 1 ¡Á DP (maximum supported resolution: 3840¡Á2160) 2 ¡ÁHDMI (maximum supported resolution: 3840x2160 30HZ) |
Network | оƬ
| 2 ¡Á RTL8111H 10/100/1000M (RJ45 LAN) optional POE network port 6 ¡Á INTEL I226 2.5G (RJ45 LAN) optional POE network port |

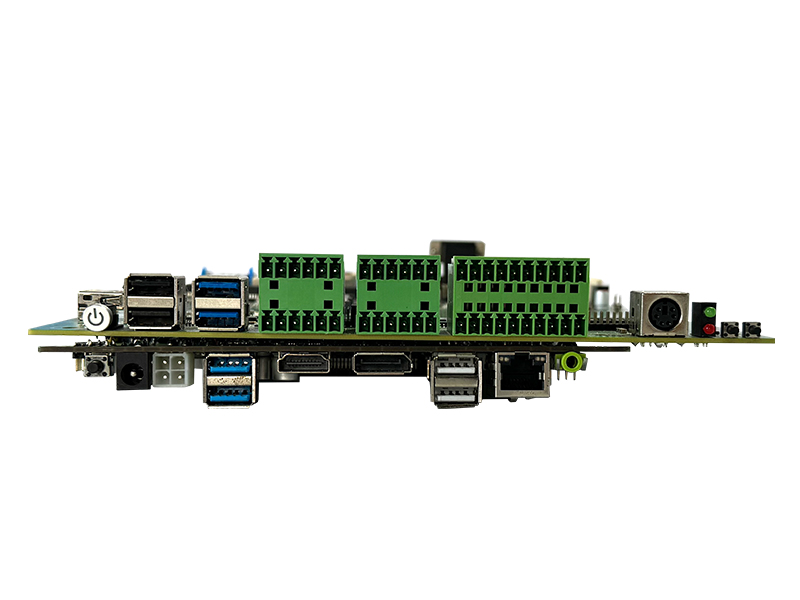

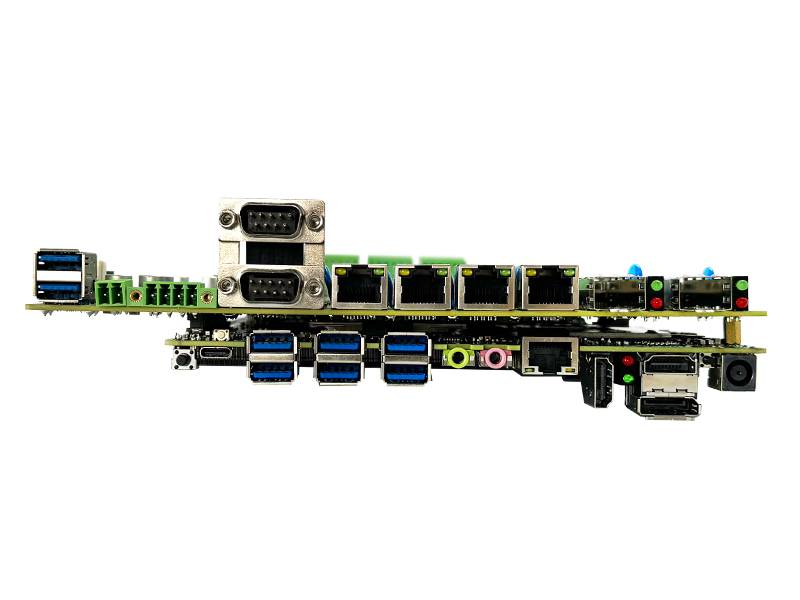

I/O | forward USB 3.0 SW Phoenix Terminal DC Phoenix Terminal COM RJ45
Back switch USB2.0 USB3.0 COM Phoenix Terminal GPIO |
2x USB3.0 1 ¡Á 2PIN Phoenix interface (power on/off) 1 ¡Á 4PIN Phoenix interface (9-36V wide voltage, maximum 120W (12V/10A)) 2 ¡Á RS232 COM 6 ¡Á Intel i226 2.5G RJ45 network ports (support optional POE, two of which support optional optical fiber) 1 x switch button 2 x USB2.0 2 x USB3.0 4 ¡Á RS232/485/422 COM optional 16-input and 16-output GPIO Phoenix terminal (supports DIO, optocoupler isolation) |
Onboard Features
Extended function
| COM mouth USB2.0 SATA M.2 PCIEX4 MINI PCIE
COM USB PCIE PCI CAN | 6*COM pins are multiplexed with I/O interface 1*USB pin (can be expanded to 2*USB2.0) 1*SATA(2.5inch hard disk) 1*M.2 NVME(PCIEX4) 1*PCIEX4(ÓëM.2 reuse) 2*MINIPCIE(3G/4G/WIFI)
Expandable multiple COM Expandable multiple USB Expandable multiple PCIE Expandable multiple PCI Expandable multiple CAN |
Power supply | Input Rated power consumption | DC JACK 9V-36V 60-120W |
Watchdog | Output Interval | Interrupt, system restart 255-level timing interval |
Physical parameters | Dimensions | 273mm (L) x 180mm (W) |
Environment | Temperature Humidity | Operating temperature: 0¡ãC ~50¡ãC Storage temperature: -20~70¡ãC5%~90% non-condensing |
Operating system | Version | Windows 10/Windows 11/ Linux |
Ordering Information
Sales Model | Description |
AOS-MOH610AGD | 6 Electrical/6COM/2USB3.0(H610) |
AOS-MOH610AGD | 4 Electrical 2 Optical/6COM/2USB3.0(B660)
|
AOS-MOH610AGD | 4 Electrical 2 Optical /6COM/6USB3.0(Q670) |
Dimensional Drawings
Display with use
Application fields
Suitable for robotics, visual inspection, industrial automation, industrialmanufacturing, intelligent transportation, new energy, electricity, military industry,medical and other fields.
