AOS-USB-TO-4xRS232-485-422

Product introduction£º

Specifications

USB-Type Function Converter Motherboard

Dimensions (70mm x 79mm)

USB 2.0 signal (1) to 4 RS232/485/422 COM ports

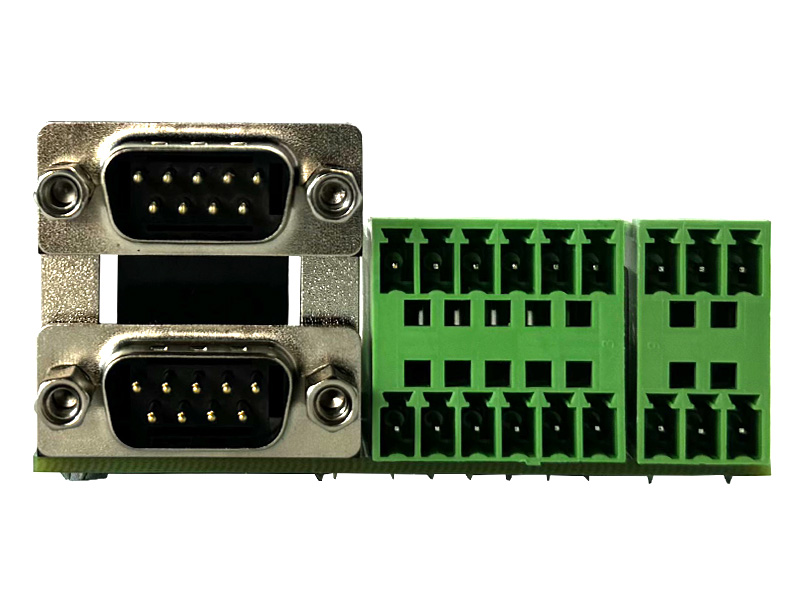

USB 2.0 Type-A (pin) to 4 RS232 (2 DBP + 2 pins)

USB 2.0 Type-A (pin) to 4 RS422 (2 Phoenix connectors + 2 pins)

USB 2.0 Type-A (pin) to 4 RS422 (2 Phoenix connectors + 2 pins)

USB 2.0 Type-A (pin) to 4 RS422 (2 Phoenix connectors + 2 pins)

USB 2.0 signal (1) to 4 RS23/485/422 ports, allowing for any combination of functions

Compliant with CE, FCC, and ROHS regulations

System support for Windows 7, Windows 10, Windows 11, Kylin OS, and UOS...

Ordering information

Sales model	specification
AOS-USB-TO-4x232-485-422	The USB connector is converted to 4*RS232(2*DB9+2* pin /4*RS232 pin), which can also be selected with 422/485.
	The USB connector is converted to 4*RS485(2* Phoenix /2* pin), and it can also be optional with 422/232.
	USB pin to 4*RS422(2* Phoenix /2* pin), and 485/232 can also be selected.
	I/O default: 2* RS232 DB9+2*422/485 Phoenix terminal +2* TTL (the pin built in the motherboard is optional).

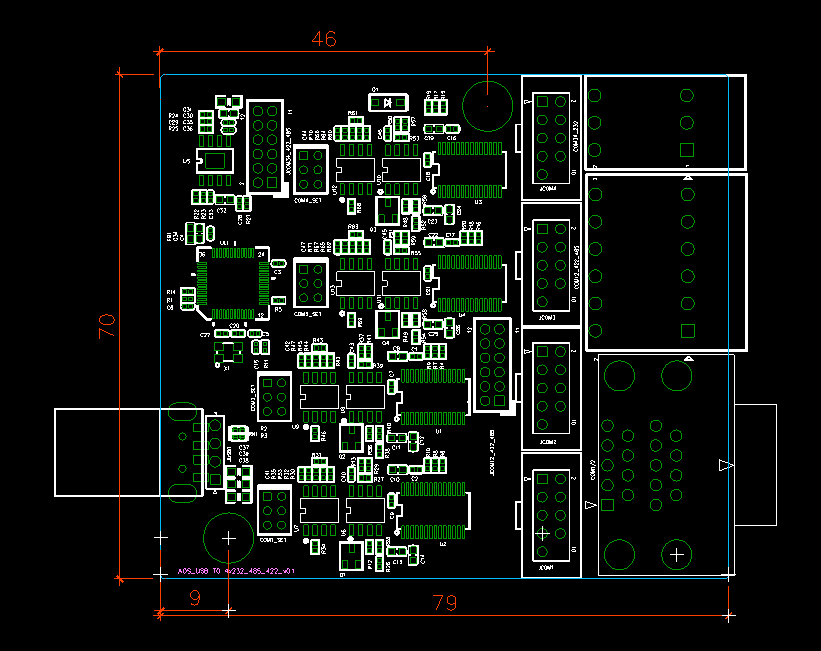

dimensional drawing

Areas of application

     Industrial computer, industrial tablet computer, self-service terminal, all-in-one machine, medical treatment, digital sign, POS cash register, etc.
