chipset

Intel® H610/B660/Q670

BIOS

AMI 32Mbit£¬Supports disk-free startup, network wake up, power-on, and watchdog functions

memory

capacity

8GB SO-DIMM DDR5 4800MHz memory ,  Max.64GB

store

M.2 Ports

SATA interface

MINI PCIE

Integrated graphics output

input

Acquisition card input

  NGFF/NVME(Support M.2 capture card)

128 GB SSD/HDD Optional

1X M.2 Mini PCIE £¨WIFI£©

HDMI +DP+LVDS Single display, double display, three display (same/asynchronous display)

1 ¡Á HDMI2.0 (Max support resolution: 3840x2160)

1 ¡ÁLVDS (Max support resolution: 1920x1080)

1 ¡Á DP1.4 (Max support resolution: 3840x2160/7860*4320)

1 x DP IN(optional)

1 x HDMI IN+VGA IN(optional)

reveal

PCIEx16 Independent graphics card outpu

Independent graphics card optional models and display output channels

The output is displayed based on different PCIE cards

HDMI+HDMI+HDMI+DP Single display, double display, three display, four display,6 display (same/asynchronous display)

1 ¡Á HDMI (Max support resolution: 3840x2160)

1 ¡Á DP (Max support resolution: 3840x2160/7860*4320)

GTX730 2-4GB(HDMI/HDMI/HDMI/HDMI)

RX550 4GB(HDMI/HDMI/HDMI)

RX580 4GB(HDMI/HDMI/HDMI/HDMI/HDMI)

GTX1050TI 4GB(HDMI/HDMI/HDMI/HDMI)

GTX1650 4GB(HDMI/HDMI/DP/HDMI)

GTX1060 6GB(2*HDMI/2*DP)

GTX1070 8GB(1*HDMI/3*DP )

GTX1080 8GB(1*HDMI/3*DP )

RTX3050 6GB(1*HDMI/3*DP)

RTX3050 8GB(1*HDMI/3*DP )

RTX3060 6-12GB(1*HDMI/3*DP)

RTX3070 8GB(1*HDMI/3*DP )

RTX3080 16GB(1*HDMI/3*DP )

RTX4060 8GB(1*HDMI/3*DP )

RTX4090 24G

A1000 4G(DP/DP/DP/DP)

A2000 8G( DP/DP/DP/DP )

T1000 4G( DP/DP/DP/DP )

P1000 4G( DP/DP/DP/DP )

P2000 4G( DP/DP/DP/DP )

P3000 6G( DP/DP/DP/DP )

network

Chip

WIFI

1-2 ¡Á RTL8111E  10/100/1000M£¨RJ45 LAN£©

1 x WIFI Module support 802.11b/g/n £¨M.2 PCIE half card£©

I/O

USB 3.0

USB 2.0

COM

Power button

LED light

Audio frequency

6x USB3.0

4 x USB2.0

1x COM(Supports a maximum of six COM ports)

1 ¡Á power button

1x power indicator &1x hard disk indicator

1 ¡Á LINE-OUT & MIC-IN, integrated 6-channel sound ALC662 sound card chip

Power source

input

Rated power consumption

DC  19V

90-350W

Guard dog

exportation

interval

The system restarts. Procedure

255 level timing interval

Physical parameter

dimension

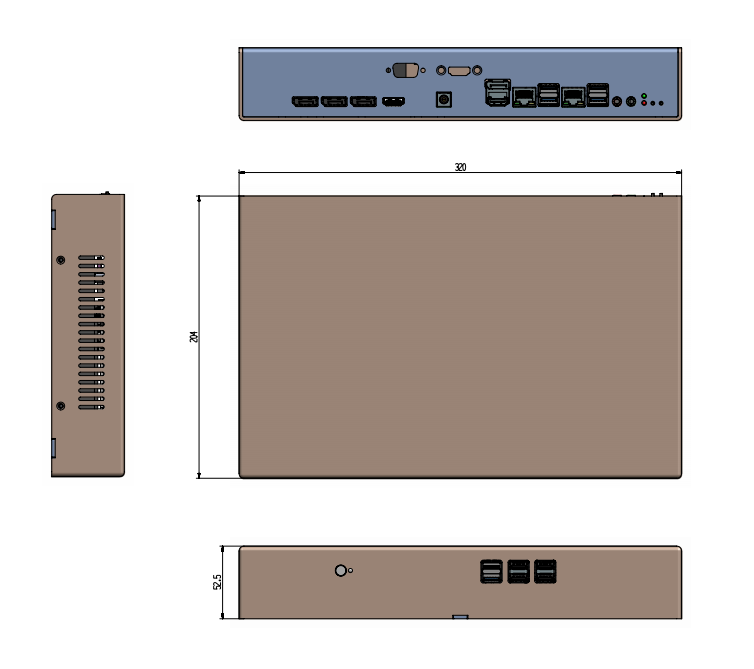

320mm (L) x 204mm (W) x 52.5mm (H)

environment

temperature

humidness

Operating temperature: 0¡ãC ~50¡ãC Storage temperature: -20 ¡ãC ~70¡ãC

5% to 90% no condensation

Operating system

edition

Windows 10/Windows 7 / windows8 / Linux

AOS-SDH61C81S74DY

Intel Celeron GXXXX  X.XGHz(2core)   8Gmemory  128G SSD  GTX730 2G 4screen splicing

Intel Celeron GXXXX  X.XGHz(2core)   8Gmemory  128G SSD  RX580 4G 6screen splicing

AOS-SDH61D81S56DY

Intel Pentium GXXXX  X.XGHz(2core)   8Gmemory  128G SSD  GTX730 4G 4screen splicing

Intel Pentium GXXXX  X.XGHz(2core)   8Gmemory  128G SSD  RX550 4G  4screen splicing

AOS-SDH62I81SX4DY

AOS-SDH63I81SX6DY

AOS-SDH64I81SX6DY

Intel Core i3-12100   3.3GHz(4core)   8Gmemory  128G SSD

Intel Core i3-13100   3.4GHz(4core)   8Gmemory  128G SSD

Intel Core i3-14100   4.7GHz(4core)   8Gmemory  128G SSD

AOS-SDH62F81SX4DY

AOS-SDH63F81SX6DY

AOS-SDH64F81SX6DY

Intel Core i5-12400   2.5GHz(6core)   8Gmemory  128G SSD

Intel Core i5-13400   2.5GHz(10core)   8Gmemory  128G SSD

Intel Core i5-14400   4.7GHz(10core)   8Gmemory  128G SSD

AOS-SDH62J81SX4DY

AOS-SDH63J81SX6DY

AOS-SDH64J81SX6DY

Intel Core i7-12700  2.1GHz(12core)    8Gmemory  128G SSD

Intel Core i7-13700  2.1GHz(16core)    8Gmemory  128G SSD

Intel Core i7-14700  5.4GHz(20core)    8Gmemory  128G SSD

AOS-SDH62H81SX4DY

AOS-SDH63H81SX6DY

Intel Core i9-12900  2.4GHz(16core/24thread)   8Gmemory 128G SSD

Intel Core i9-13900  2.0GHz(24core/32thread)    8Gmemory 128G SSD
