CPU Processor

LGA 1150 Interface , mainly paired with 4th Gen Intel Core (Haswell/Haswell Refresh£© Processor

Chipset

Q87 Chipset

Power

1*24PIN ATX

Supports  24PIN Standard ATX power input

1*4PIN CPU IN

4PIN CPU power input,It is recommended to increase the power supply wattage according to the actual CPU power consumption and number of loads

Memory Support

2*DI MM-DDR3 memory slot,two memory modules, max. 16G Memory

Display

1*VGA

Supports resolution 1920*1080@60Hz

1*HDMI

Supports maximum resolution 1920¡Á 1200@60Hz

Network

2*LAN Interface

RTL8111H Gigabit LAN

Audio

ALC897 Integrated digital audio decoding and encoding onboard Codec£¨codec£© £¬integrates DAC/ADC and digital processing module , capable of decoding digital signals into analog signals , meeting HD Audio output requirements

1*AUDIO Interface

Supports  OUT audio output(green)and MIC recording function (pink)

1*F_AUDIO Header

Standard audio header                                                                  £¨9Pin £¬2*5Pin £¬2.54mm£©

Storage

3*SATA Interface

Standard SATA 7PIN 2.0 drive interface , maximum transferspeed 3.0 Gbps

SSD2

Supports  M.2 SATA drive protocol

USB Function

4*USB3.0 Interface

2  dual-layer USB3.0 port (blue)

2*USB2.0 Interface

1  dual-layer USB2.0 port (black)

2*FUSB Header

Onboard 2  FUSB Header ,can be used for external USB expansion

£¨9Pin £¬2*5Pin £¬2.54mm  £©

Keyboard

PS2 Interface

Supports keyboard and mouse

Switch

1*JFP Header

Power switch, power LED, HDD LED and reset header

£¨9Pin £¬2*5Pin £¬2.54mm  £©

Expansion Slots

1*PCI Ex4  Slot                   1*PCIE16X  Slot                     2*PCI Slot

Fan

1*SFAN

1*3PIN system fan     (3Pin £¬1*3Pin £¬2.54mm£©

1*CAN

1*4PIN smart speed-control fan , supports intelligent speed control; supports speed detection       £¨4Pin £¬1*4Pin £¬2.54mm£©

Serial Port

6*COM

All support RS232 standard protocol, where COM1¡¢COM2 uses dual-layer DB9 ports, supports RS232 and RS485 protocol,COM3-COM6 uses 2X18pin, 2.0mm Header

Other    Header

JME Header

is for ME firmware maintenance and security control header

JBAT Header

Short to clear CMOS settings

JLPC Header

LPC bus low-level debug interface

JLPT Header

Compatible with IEEE 1284  parallel port standard,mainly used to expand LPT parallel interface, used to connect legacy dot-matrix /  inkjet printprinters, industrial equipment, programmers and other parallel peripherals

Operating Environment

Operating temperature £º0¡æ ~60¡æ;          Operating humidity £º5%~95%RH , non-condensing

BIOS

W25Q64JV

Watch Dog

Watchdog programming , supports hardware reset function (256 levels £¬0~255 seconds£© £¬Supports auto power-on , scheduled power-on

Operating System

Supports  Windows 10 £¬Windows8, Windows7   LINUX System

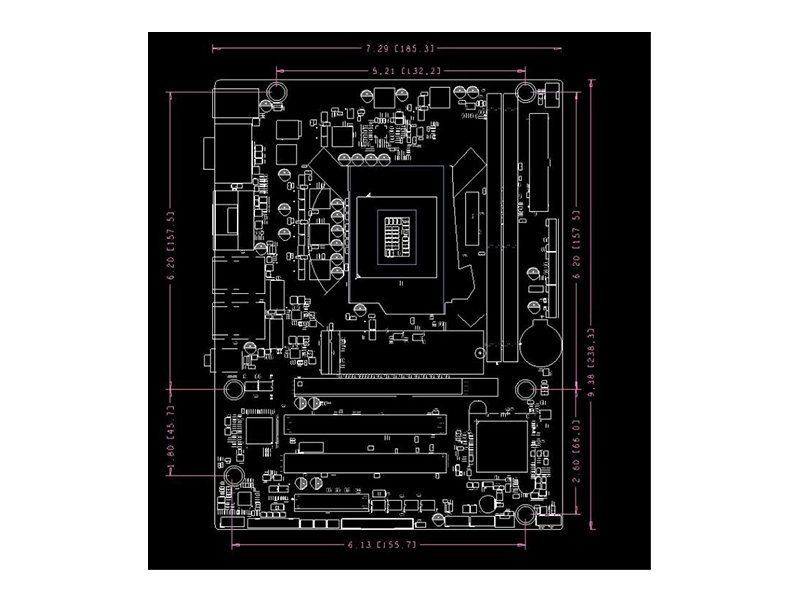

AOS-MSB852L6C

 Haswell£¨4xxx£©

Celeron / Pentium:G1820¡¢G1840¡¢G3220¡¢G3240¡¢G3420¡¢G3440 i3£ºi3-4130¡¢i3-4150¡¢i3-4160¡¢i3-4170 i5£ºi5-4430¡¢i5-4460¡¢i5-4570¡¢i5-4590¡¢i5-4670¡¢i5-4690 i7£ºi7-4770¡¢i7-4790 Xeon:E3-1230 V3¡¢E3-1240 V3

Haswell Refresh£¨4xxx Refresh£©

i5-4590¡¢i5-4690¡¢i7-4790¡¢i7-4790S
