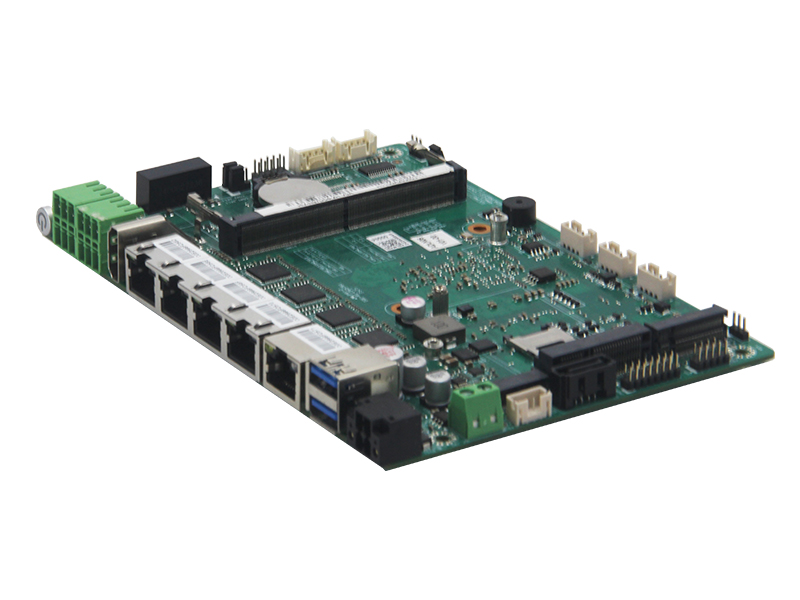

AOS-M4N105L4CH
Product introduction£º
Specification Parameters
processor | CPU | Intel Alder Lake-N/Twin Lake platform series N95/N97/N100/N150/N250/i3-N305 series processors |
chip set | Intel® SOC | |
BIOS | AMI UEFI BIOS | |
internal storage | capacity | 1x DDR4 SODIMM memory slot, up to 16 GB |
memory | SATA interface M.2 Interface | 1x SATA 3.0 SSD supporting SATA/NVME protocols 1x M.2 2242/2280 interface |
show | output
display control unit | Two independent display interfaces (HDMI + LVDS/EDP) exhibit synchronization anomalies. HDMI maximum resolution: 4096x2160@30Hz The maximum resolution of LVDS/eDP is 1920¡Á1080 at 60 Hz. Intel CPU integrated UHD display controller |
network | RJ45 Gigabit network port | 5 x RJ45 Gigabit Ethernet ports: 1 x RTL8111H (LAN4 and USB3 interface optional) + 3 x Intel I210AT |

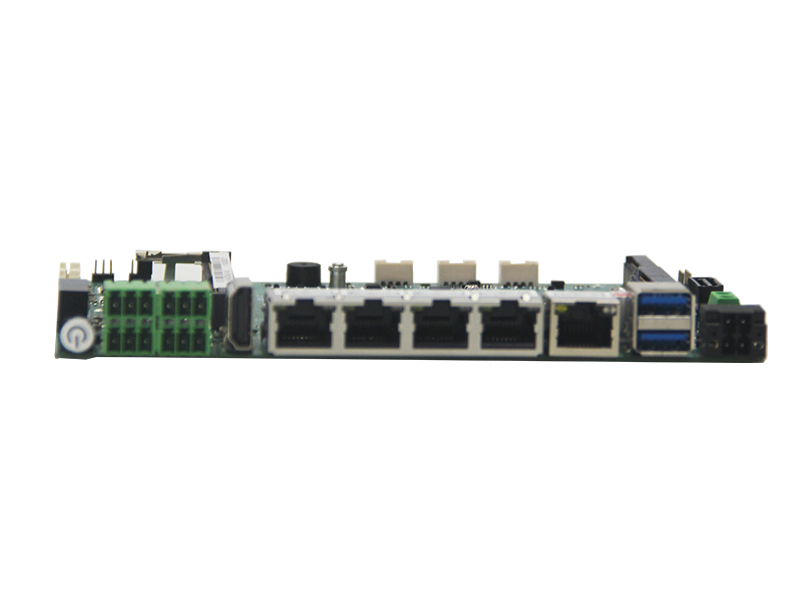

I/O | POWER COM USB 3.0 USB2.0 HDMI LAN DC | 1¡ÁPOWER 2 RS232 serial ports 2¡ÁUSB 3.0 (dual-layer USB 3.0 Type-A) 1 x USB 2.0 (dual-layer USB 2.0 Type-A), with optional USB 2.0 and LAN4 ports 1¡ÁHDMI port 5¡Á LAN interfaces DC 9~36V |
On-board functions | COM
USB Extension Bus
GPIO Other ports audio frequency | COM1 and COM2 support RS232 and allow selection of a 5/12V power supply jumper for Pin9; COM1 also supports RS485 (with optional jumper cap). 2¡Á5N9-pin header; includes 3 USB 2.0 ports and 1 CN expansion port with USB 2.0 support 1 M.2 KEY-M expansion slot (SATA/PCIe X1 optional) 1 MINI-PCIe expansion slot (PCIe X1 + USB 2.0 interface) One CN custom extension interface, supporting expansion for PCIe, serial ports, USB, and GPIO 8bit GPIO A remote switch LED expansion interface (2¡Á2-pin, 3.08 mm phoenix terminal) not have |
source | import | DC 9~36V |
watchdog | output margin | Interrupt, system restart Level 255 Fixed Time Interval |
Physical Parameter | size | 165 mm (L) x 115 mm (W); compatible with 4-inch panel hole positions |
environment | temperature humidity | Operating temperature: 0¡ãC to 60¡ãC Storage temperature: -20¡ãC to 75¡ãC 10%~90% no condensation |
operating system | edition | Windows 10/Windows 11/ Linux |
Order Information
Sales Model | explain |
AOS-M4N105L4CH | Intel N100 CPU with 4 cores and 4 threads, Turbo Boost frequency of 3.4 GHz, TDP of 6 W |
Intel N150 CPU | |
Intel M250 CPU | |
Intel N95 CPU with 4 cores and 4 threads, Turbo Boost frequency of 3.4 GHz, TDP of 15 W) | |
Intel I3 N305 CPU |
application area
Widely used in commercial displays, mini computers, medical instruments, industrial control systems, financial equipment, cloud terminals, and industrial PCs.
