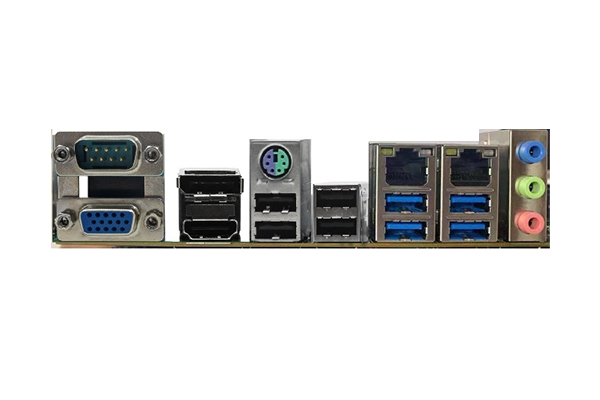

AOS-MAH510J
Product introduction：
Product Specification
model | AOS-MAH510J |
Product Type | Standard MINI-ITX industrial motherboards |
Processors | Support Intel LGA1200 package Gen10&11 i9/i7/i5/i3/G CPU with TDP up to 65W. |
Chipset | Intel® H510 chipset |
RAM | 2 x 260Pin DDR4 SO-DIMM memory slots, single 32GB up to 64GB Support DDR4-2133/2400/2666/2933/3200 depending on CPU. |
Display Controller | Intel CPU integrated display controller (depending on CPU) |
Display Interface | Three display output interfaces VGA, DP, HDMI, support dual-display mode |
Storage | Standard with 2 SATA3.0 Standard with a M.2 2280 Key-M support SATA protocol SSDs |
Audio | Rear IO support Mic-in+Line-out+Line-in Support digital audio output with amplifier (4Pin wafer) |
Network | 2 Intel High Speed Ethernet ports: LAN1 i219V,i226-V |
USB | 4 USB3.0 Type A (Rear I/O), 4 USB2.0 (Rear I/O) 2 USB2.0 (internal pins, one of the ports and the USB signal of the on-board M.2 2230 are optional) |
I²C/SM bus | One 4Pin I²C Bus connector |
Serial port | 6 serial ports, COM1 support RS232/485, COM2~COM6 support RS232 COM2&COM3 support Pin9 +5/12V power supply, COM3 optional TTL level |
Keyboard and Mouse Interface | 1 PS/2 2-in-1 interface and two USB with 3-in-1 connector |
Digital I/O | 8-bit digital I/O, provide power and ground, +5V level |
eSPI bus interface | Provide 1 eSPI bus interface (2x6Pin wafer can be extended with four more RS232 or RS422/485 serial ports)） |
TPM/TCM interface | On-board encryption chip SLB9670(SLB9672) supports TPM2.0(default) / BOM optional TCM chip |
Power Supply | ATX power supply, support ATX/AT switch mode |
Expansion Bus | 1 x16 slot (10th generation CPU supports PCIe3.0, 11th generation CPU supports PCIe4.0) Standard 1 M.2 2230 Key-E support Wifi/BT |
Operating Atmosphere | Temperature range 0℃～60℃, relative humidity 10%～85%, atmospheric pressure 85～105kPa |
Storage Atmosphere | Temperature -40℃～85℃; Relative Humidity 5%～95%(40℃), Atmospheric Pressure 85~105kPa |
Watch Dog | 255 levels of programmable seconds/minutes, support timeout interrupt or system reset |
BIOS | AMI UEFI BIOS, RCT timing clock accuracy within 20PPM |
Operating system | Win10 x64，Win11 x64，Linux Ubuntu 18.04 |
PCB coulor | PCB with green oil |

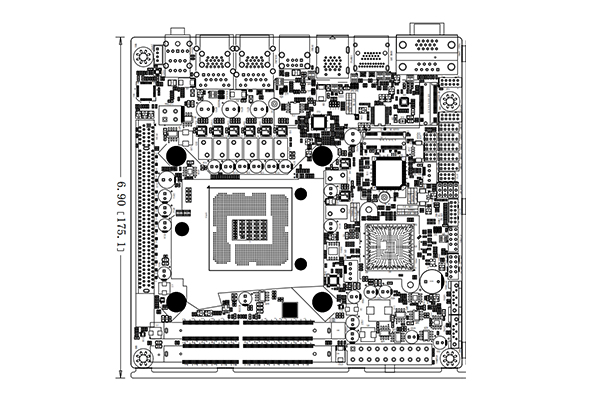

Dimension drawing
