CPU

Rockchip RK3528A Cortex-A53Ëĺˣ¬×î¸ßÖ÷Ƶ2.0GHz

Rockchip RK3528A Cortex- A53 quad-core, up to 2.0GHz

DDR

LPDDR4 1GB£¨2GB/4GB¿ÉÑ¡£©

LPDDR4 1GB (2GB/4GB optional)

´æ´¢

Storage

ĬÈϱêÅä8GB EMMC NANDоƬ£¬¿ÉÀ©Õ¹ÖÁ×î´ó128GB

The default comes with an 8GB EMMC NAND chip that can scale up to 128GB

HDMIÊä³ö

HDMI Output

Micro HDMI 2.0±ê×¼ÏÔʾ½Ó¿Ú£¬×î¸ßÖ§³Ö4KÊä³ö

Micro HDMI 2.0 standard display interface supports up to 4K output

USB 2.0½Ó¿Ú

USB 2.0 Interface

1¸öUSB2.0ÍâÖúá²å½Ó¿Ú

1 USB2.0 horizontal connectors

´®¿Ú

Serial Port

1¸ö1.25mm 3pin TTLµ÷ÊÔ´®¿Ú

1 1.25mm 3-pin built-in serial port

TF¿¨

Micro SD Card

×Ôµ¯Ê½TF¿¨²å×ù£¬×î¸ßÖ§³Ö256GB TF¿¨

Self-elastic micro SD card socket, up to 256GB capacity

WiFi

ÄÚÖøßÐÔÄÜSDIO½Ó¿ÚWiFi6Ä£¿é£¬Ö§³ÖIEEE 802.11 b/g/n/ax£¬Ä¬Èϵ¥ÆµWiFi6

Built-in high performance SDIO interface WiFi6 module, support IEEE 802.11 b/g/n/ax/ac

À¶ÑÀ

Bluetooth

ÄÚÖøßÐÔÄÜ´®¿Ú½Ó¿ÚBTÄ£¿é£¬Ö§³ÖV2.1+EDR/BT v3.0/BT v3.0+HS/BT v5.2

Built-in high performance UART interface BT module with support for V2.1+EDR/BT v3.0/BT v3.0+HS/BT v5.2

ÒÔÌ«Íø¿Ú

Ethernet

10/100M×ÔÊÊÓ¦ÒÔÌ«ÍøRJ45Íø¿Ú

10/100M Adaptive Ethernet RJ45 connector

À©Õ¹½Ó¿Ú

Extension Interface

13pin 2.54mmÅÅÕ룺֧³ÖUSBx2¡¢CVBS¡¢IR¡¢GPIO½Ó¿Ú

13pin 2.54mm pin: Supports USBx2, CVBS, IR, GPIO interfaces

Ô¤Áô½Ó¿Ú

Reserved Interface

26pin 2.54mmÅÅÕ룺֧³ÖI2Sx2¡¢I2Cx2¡¢UARTx2¡¢PDM½Ó¿Ú

26pin 2.54mm pin: Supports I2Sx2, I2Cx2, UARTx2, PDM interfaces

PCIe 2.0

16pin PCIe 2.0 FPC½Ó¿Ú£¬¿ÉÀ©Õ¹PCIeÍâÉè

16pin PCIe 2.0 FPC port expands PCIe peripherals

ʵʱʱÖÓ

Real Time Clock

³¬µÍ¹¦ºÄRTCµç·£¨Íâ½ÓCR1220Ŧ¿Ûµç³Ø£©£¬²¢¿ÉÖ§³Ö¶¨Ê±¿ª¹Ø»ú

Ultra-low-power RTC circuit (CR1220 battery) with timer and alarm functionalities

ָʾµÆ

LED Indicator

ÂÌÉ«¹¤×÷ָʾµÆ

Blue LED indicator for running

°´¼ü

Buttons

ÉÕ¼¼ü£¨RECOVERY£©ºÍ¸´Î»¼ü

Recovery mode button and reset button

µçÔ´ÊäÈë

DC Input

Ö§³Ö5V-2AµçѹֱÁ÷µçÔ´ÊäÈ루ͨ¹ýtype-c×ù£©

Supports 5V-2A voltage DC power input (type-c)

»·¾³ÒªÇó

Ambient Requirement

¹¤×÷ζÈ-20¡ãC ~ 70¡ãC£¬¹¤×÷ʪ¶È0%~95%£¨²»½á¶£©

Working temperature -20¡ãC ~ 70¡ãC, working humidity 0%~95% (non-condensing)

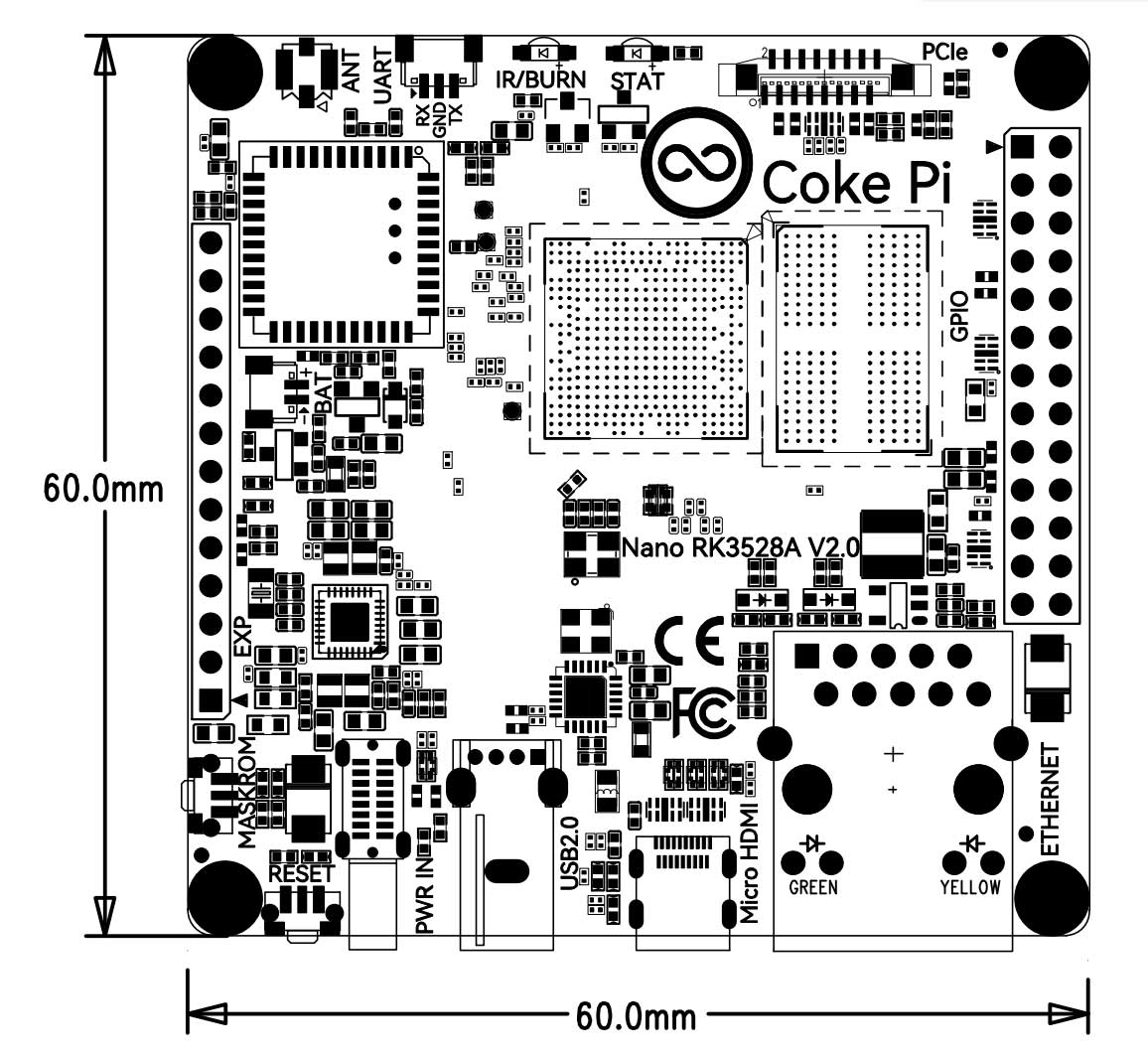

ÎïÀí³ß´ç

Physical Size

³¤*¿í*¸ß£¨60mm*60mm*14.8mm£©£¬PCBÕýÃæ¸ß¶È13.5mm

Length*Width*Height (60mm*60mm*14.8mm), PCB top side height 13.5mm

²Ù×÷ϵͳ

Operating System

ÍƼö°²×¿13

Recommended Android 13
