CPU

RK3588S ËĺËCortex-A76+ËĺËCortex-A55£¬×î¸ßÖ÷Ƶ2.4GHz

RK3588S Quad-core Cortex-A76 and Quad-core Cortex-A55, up to 2.4GHz

DDR

LPDDR4 4GB£¨8GB|16GB|32GB¿ÉÑ¡£©

LPDDR4 4GB (8GB|16GB|32GB optional)

´æ´¢

Storage

ĬÈϱêÅä32GB EMMC NANDоƬ£¬¿ÉÀ©Õ¹ÖÁ×î´ó256GB

The default comes with an 32GB EMMC NAND chip that can scale up to 256GB

HDMIÊä³ö

HDMI Output

2¸öMicro HDMI 2.0ÏÔʾ½Ó¿Ú£¬×î¸ßÖ§³Ö8K@60FPSÊä³ö

2 Micro HDMI 2.0 display interface supports up to 8K@60FPS output

MIPIÉãÏñÍ·

MIPI CSI

3·MIPI CSI½Ó¿Ú£¬×î¸ßÖ§³Ö1600ÍòÏñËصÄMIPIÉãÏñÍ·

3-way MIPI CSI interface, up to 16 megapixel MIPI camera support

USB 2.0½Ó¿Ú

USB 2.0 Interface

4¸öUSBÍâÖúá²å½Ó¿Ú£¨2¸öUSB2.0£¬1¸öUSB3.0ºÍ1¸öUSB3.0-OTG£©

4 USB horizontal connectors (2 USB2.0, 1 USB3.0 and 1 USB3.0-OTG)

´®¿Ú

Serial Port

1¸ö1.25mm 3pin TTLµ÷ÊÔ´®¿Ú

1 1.25mm 3-pin built-in serial port

TF¿¨

Micro SD Card

×Ôµ¯Ê½TF¿¨²å×ù£¬×î¸ßÖ§³Ö256GB TF¿¨

Self-elastic micro SD card socket, up to 256GB capacity

WiFi

ÄÚÖøßÐÔÄÜSDIO½Ó¿ÚWiFi6Ä£¿é£¬Ö§³ÖIEEE 802.11 b/g/n/ac/ax£¬Ä¬ÈÏ˫ƵWiFi6

Built-in high performance SDIO interface WiFi6 module, support IEEE 802.11 b/g/n/ac/ax

À¶ÑÀ

Bluetooth

ÄÚÖøßÐÔÄÜ´®¿Ú½Ó¿ÚBTÄ£¿é£¬Ö§³ÖV2.1+EDR/BT v3.0/BT v3.0+HS/BT v5.0

Built-in high performance UART interface BT module with support for V2.1+EDR/BT v3.0/BT v3.0+HS/BT v5.0

ÒÔÌ«Íø¿Ú

Ethernet

10/100/1000M×ÔÊÊÓ¦ÒÔÌ«ÍøRJ45Íø¿Ú+4оPOEÅÅÕë

10/100/1000M Adaptive Ethernet RJ45 connector + 4-Pin POE header

·çÉÈ¿ØÖÆ

Fan Control

1·FAN½Ó¿Ú

One FAN port

GPIO½Ó¿Ú

GPIO Interface

40pin 2.54mmÅÅÕ룺֧³ÖI2S¡¢CAN¡¢I2Cx3¡¢UARTx3¡¢PWMx2¡¢SPI¡¢GPIO½Ó¿Ú

40pin 2.54mm pin: Supports I2S, CAN, I2Cx3, UARTx3, PWMx2, SPI, GPIO interfaces

PCIe 2.0

16pin PCIe 2.0 FPC½Ó¿Ú¿ÉÀ©Õ¹PCIeÍâÉè

16pin PCIe 2.0 FPC port expands PCIe peripherals

ʵʱʱÖÓ

Real Time Clock

³¬µÍ¹¦ºÄRTCµç·£¨Íâ½ÓCR1220Ŧ¿Ûµç³Ø£©£¬²¢¿ÉÖ§³Ö¶¨Ê±¿ª¹Ø»ú

Ultra-low-power RTC circuit (CR1220 battery) with timer and alarm functionalities

ָʾµÆ

LED Indicator

ÂÌÉ«¹¤×÷ָʾµÆ

Blue LED indicator for running

°´¼ü

Buttons

ÉÕ¼¼ü£¨RECOVERY£©£¬µçÔ´¼üºÍ¸´Î»¼ü

Recovery mode button, power switch button and reset button

µçÔ´ÊäÈë

DC Input

Ö§³Ö5V-2AµçѹֱÁ÷µçÔ´ÊäÈ루ͨ¹ýtype-c×ù£©

Supports 5V-2A voltage DC power input (type-c)

»·¾³ÒªÇó

Ambient Requirement

¹¤×÷ζÈ-20¡ãC ~ 70¡ãC£¬¹¤×÷ʪ¶È0%~95%£¨²»½á¶£©

Working temperature -20¡ãC ~ 70¡ãC, working humidity 0%~95% (non-condensing)

ÎïÀí³ß´ç

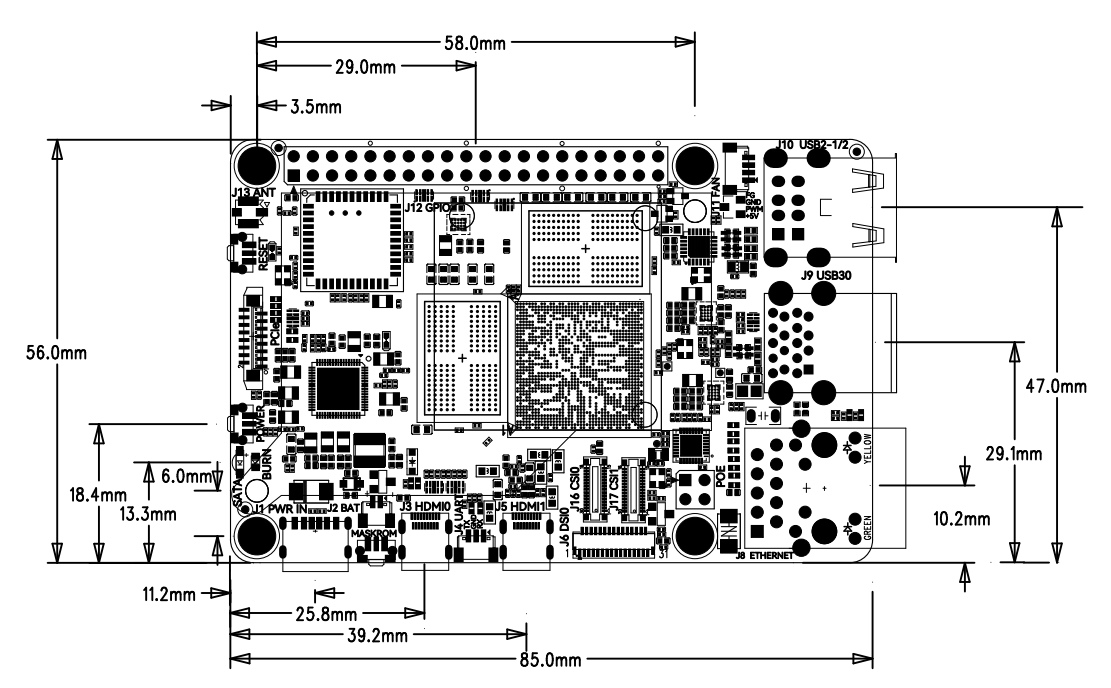

Physical Size

³¤*¿í*¸ß£¨85mm*56mm*17mm£©£¬PCBÕýÃæ¸ß¶È16mm

Length*Width*Height (85mm*56mm*17mm), PCB top side height 16mm

²Ù×÷ϵͳ

Operating System

ÍƼö°²×¿12.0£¬Ñ¡Å䰲׿13.0

Recommended Android 12.0£¬optional Android 13.0
