chip set

Intel® SOC

BIOS

The AMI 32Mbit model supports diskless boot, network wake-up, power-on startup, watchdog functionality, and other features.

internal storage

capacity

1*SO-DIMM DDR5 4800MHz Max32GB

memory

M.2 interface

SATA interface/PCIE4.0

1¡ÁM.2 M Key

Supports SATA/PCIE4.0x4 adaptive mode; 1*SATA3.0 interface

show

output

1¡ÁLVDS/EDP

1¡ÁDP

1 ¡Á HDMI (Supports maximum resolution: 3840x2160 at 30Hz)

1 ¡Á VGA (maximum supported resolution: 2048¡Á1536)

network

slug

4 ¡Á  10/100/1000M£¨RJ45 LAN£©

Equipped with 3 Intel i210AT processors and i226-V network cards

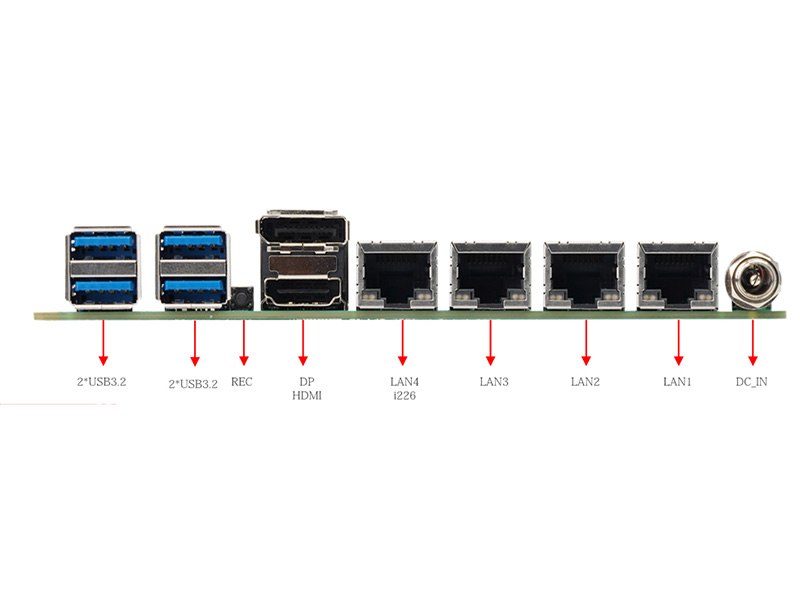

I/O

I/O slug

DC

HDMI

DP

USB

RJ45

audio frequency

IT8786E

1¡ÁDC DC input

1¡ÁHDMI

1¡ÁDP

4¡ÁUSB 3.2 Gen 2 (10Gbps) + 4¡ÁUSB 2.0 (pin-type)

LAN4(i226) LAN1-3(i210)

Board-mounted ALC897 audio decoding controller; Independent power amplifier NS4251; Maximum output: 3W@4¦¸

Board-mounted functions

F_AUDIO

SPEAKER

USB

F_PANEL

GPIO

PS2

SATA_PWR

SATA

BKCL

LVDS

INVCN

COM

CPU_FAN

EDP

ATX Phoenix Terminal

expansion slot

heat radiation

1*F Audio Pin

1*SPEAKER pin

2 USB pins (expandable to 4 USB 2.0 ports)

1*F.Panel pin

1*GPIO(2*5Pin)

1*PS2 pin

1*SATA_PWR pin

1*SATA interface

1*BKCL pin

1*LVDS pin

1*INVCN pin

4*COM pin

1*CPU_FAN pin

1*EDP locus

1*ATX Phoenix Terminal

1 x mPCIe slot with support for WIFI, Bluetooth, or 4G module expansion; SIM card slot compatible with Nano-SIM (FPC socket optional)

Default fan cooler included

source

import

DC 9V-36V wide voltage power supply (default 12-24V)

watchdog

output

margin

Interrupt, system reboot

Level 255 Fixed Interval

Physical parameters

size

146mm (L) x 102mm (W)

environment

temperature

humidity

Operating temperature: 0¡ãC to 60¡ãC Storage temperature: -20¡ãC to 75¡ãC

0%~95% No condensation

operating system

edition

Windows 10/Windows 11/ Linux

AOS-M3AU4L6CZ

i5-1235U (12th Gen Alder Lake-U) 10-core 12-thread (2P+8E) 4.4 GHz

i5-1335U (13th Gen Raptor Lake-U) 10-core 12-thread (2P+8E) 4.6 GHz
