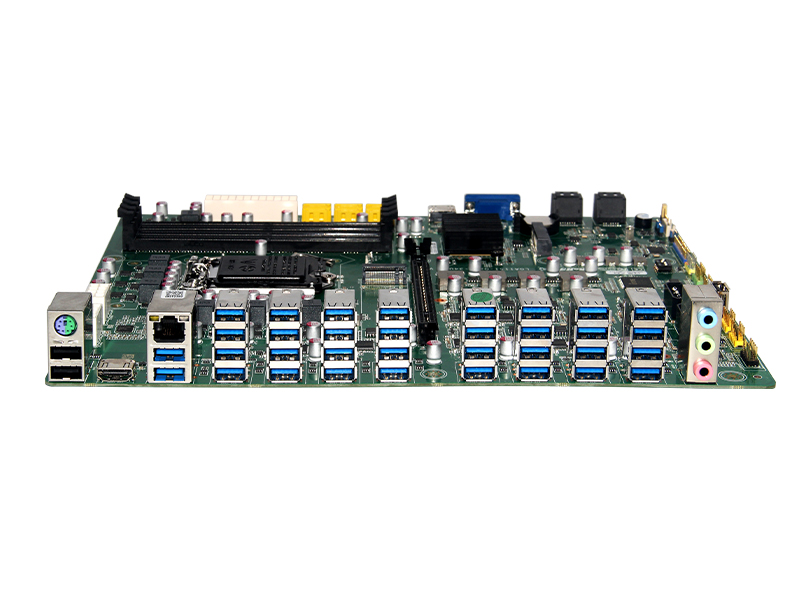

AOS-MSQ27032UK
Product introduction：
specifications and parameters
processor | CPU | Supports Intel® LGA1151 Gen6/7/8/9th i3/i5/i7 CPU, Pentium/Celeron CPU |
Chipset | Intel® Q270 chipset | |
BIOS | AMI 32Mbit，Supports diskless boot, network wake-up, power-on after power-up, watchdog features, etc. | |
memory | capacity | Default 32GB memory (2 sticks of 16GB DDR4 memory), provides 2x288PIN DDR4 2133MHz/2400MHz/2666MHz U-DIMM 1.2V memory slots, maximum support for 64GB memory (bulk orders can be modified) |
store |
MSATA interface M.2 | Default 6 SATA interfaces, maximum support for 10 SATA interfaces (additional 4 available in bulk). 6 * SATA interfaces (supporting SATA 3.0, maximum transfer rate of 6 Gb/s), supports RAID mode (RAID 0, 1, 5). 1 * M-SATA interface (shares resources with SATA5 interface, can be modified in bulk). 1 * M2 2280 (supports PCIe x4 NVMe protocol SSD) |
display | Chipset output | Integrated Intel HD Graphics 2 HDMI ports (HDIM supports a maximum resolution of 4096 x 2304 @ 24Hz) 1 LVDS port (2 x 15-pin, supports dual-channel 24-bit) 1 VGA port Supports HDMI and LVDS synchronous/asynchronous dual display |
internet | chip | 1*10/100/1000Mbps Realtek RTL 8111H/G network interface, support LAN wake-up/PXE |
I/O |
USB 3.0 USB 2.0 USB3.0转RJ45 Display Ethernet Port COM Port Audio LINE/AUDIO/MIC
| Default 24 USB 3.0 ports, supports up to 32 USB 3.0 ports (up to 8 ports can be added in batches) 2 USB 2.0 + PS/2 (USB 2.0 on the bottom, PS/2 on the top) 2 USB 3.0 + RJ45 combo ports (USB 3.0 on the bottom, RJ45 on the top) 1 HDMI 1 RJ45 1 COM port Onboard ALC897 6-channel high-definition audio controller with MIC/Line-out support 1 LINE/AUDIO/MIC three-in-one audio port |
onboard functions | USB2.0 HDMI port VGA ATX 24-pin ATX 8-pin CPU fan connector COM port Button System fan connector Power input port Fan connector BIOS | 4 USB 2.0 pin headers (2 sets), 1 USB 2.0 dongle port 1 HDMI port 1 VGA port 1 ATX 24-pin power connector 2 ATX 8-pin CPU power connectors (make sure they are fully populated) 1 4-pin CPU fan connector with temperature control support 2 COM ports, RS232 support, 2 2.54mm green pin headers 1 front panel power button and 1 indicator light connector, 2 5-pin color-coded pin headers 1 3-pin system fan connector 2 USB 3.0 power input ports (make sure they are fully populated) 1 4-pin CPU fan connector, 2 4-pin system fan connectors AMI 64Mb Flash ROM |
Power supply | Input | ATX power supply supports S0, S1, S4, and S5 |
Watchdog timer | Output Interval | Interrupt and system restart 255-level timer intervals |
Physical parameters | Dimensions | 305mm (L) x 244mm (W) |
Environment | Temperature Humidity | Operating temperature: 0°C to 50°C Storage temperature: -20°C to 70°C 5% to 90% non-condensing |
Operating system | Version | Windows 10/Windows 7 / windows8 / Linux |
Order information
sales model | explain |
AOS-MSQ27032UK |
application areas
Suitable for education, restaurants, hotels, shopping malls, company meetings,government transparency, and other fields.
