AOS-MSB85AM2
Product introduction：
Product Description
Industrial-grade Micro ATX motherboard
ATX industrial motherboard
Supports Haswell LGA115x package 4th generation Intel Core i3/i5/i7 CPUs
Supports Intel H81/B85 high-speed chipsets
Supports 2-4 Gigabit Ethernet ports and asynchronous dual display (HDMI + VGA)
Supports multi-channel DDR3 RAM up to 16GB
Supports 1 x MSATA and 2 x SATA 3.0 interfaces
Supports 1 x PCIE x16, 1 x PCIE x1, and 2 x PCI interfaces
Supports Wake-on-LAN, power-on, and watchdog timer
Complies with CE, FCC, and ROHS regulations
Specifications and parameters
Processor | CPU | Supports Intel® Haswell-S Core™ 4th Generation i3/i5/i7/Xeon/Celeron/Pentium LGA115X processors |
Chipset | Intel® H81/B85 | |
BIOS | AMI 32Mbit, supports diskless boot, LAN wake-up, power-on restart, watchdog timer, and other functions | |
Memory | Capacity | 4GB 2*DDR3 1333/1600 MHz memory , Max.16GB |
Storage | SATA Port MSATA Port | 2*SATA 1*MSATA |
Display | Chipset Output | CPU-integrated HD Graphics VGA + HDMI single display, dual display (synchronous/asynchronous) 1 x VGA (maximum resolution: 1920 × 1080) 1 x HDMI (maximum resolution: 1920 × 1080) |
Network | Chip | 2~4 INTEL I211AT 10/100/1000M（RJ45 LAN） |

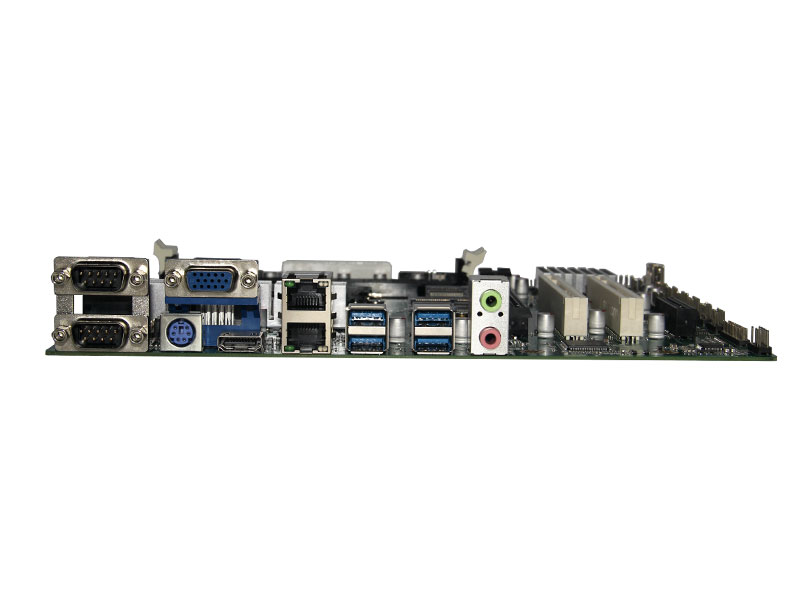

I/O | USB 3.0 PS/2 COM Port 音频 | 4x USB 3.0 ports 1 x PS/2 keyboard and mouse 2 x COM ports 1 x LINE-OUT & MIC-IN port, integrated 6-channel high-fidelity audio |
Onboard features | COM Port USB2.0 FP GPIO PCIE
| 4*RS232 4*USB2.0 1*FP 1*GPIO(4进4出) 1*PCIE3.0 X16 1*PCIE X1 2*PCI |
Power supply | Input Power Rating | ATX 1*24Pin +1*8Pin 200W |
Watchdog timer | Output Interval | Interrupt, system restart 255 level timer intervals |
Physical parameters | Dimensions | 240mm (L) x 210mm (W) |
Environment | Temperature Humidity | Operating Temperature: 0°C to 50°C Storage Temperature: -20°C to 70°C 5% to 90% non-condensing |
Operating system | Version | Windows 10/Windows 7 / windows8 / Linux |
Order information
sales model | explain |
AOS-MSB85AM2 | CPU：I3 4130 (optional) |
AOS-MSB85AM2 | CPU：I5-4440 ( optional) |
AOS-MSB85AM2 | CPU：I7-4770 (optional) |
application areas
Suitable for education, restaurants, hotels, shopping malls, company meetings,government transparency, and other fields.
