AOS-MMHM86A
Product introduction：
Specification Parameters
processor | CPU | Compatible with Intel® Haswell-M FPGA947 processors from the 4th-generation M series (Pentium/Celeron/I3/I5/I7 models: I3 4000M, I5 4200M, I7 4600M). |
chip set | Intel® SOC | |
BIOS | AMI 32 Mbit, supporting diskless boot, network wake-up, power-on startup, watchdog functionality, and more. | |
internal storage | capacity | 4GB 2*DDR3 1333/1600 MHz memory , Max.16GB |
memory | SATA Interface M.2 Interface | 1* SATA 3.0 (up to 2 sets optional) 1*MSATA |
show | chip set output
| CPU-integrated graphics card: HD Graphics VGA (LVDS/EDP optional) + HDMI + LVDS/EDP (optional); single display; dual displays (同步/asynchronous). 1 × VGA/COM optional 1 × HDMI (Maximum supported resolution: 3840×2160 at 30 Hz) |
network | Chip WIFI 4G/3G | 1 × 10/100/1000 Mbit/s RJ45 LAN port, with optional dual network ports 1 x WIFI Module support 802.11b/g/n （M.2 PCIE half card） 1X Mini PCIe optional |
I/O | DC JACK VGA HDMI USB3.0 RJ45 USB 3.0 DC JACK audio frequency Type-c switch | 1 x 12V DC JACK 1× VGA/COM 1 × HDMI 1.4 2 × USB3.0 1 × RJ45 (with optional POE functionality) 2 x USB 3.0 ports (RJ45 available as an option) 1 × DC JACK interface 1 × LINE-OUT & MIC-IN 1 × Type-C port (USB 3.0 available for dual-network ports) – Optional feature 1 × Power (Optional feature) |
Board Functions | COM mouth USB2.0 LVDS FP LED EDP GPIO LPT SPK
PCIE
| 1× RS232 (optional: 6COM RS232 or 2× RS485) 3 USB pins (قابل to expand to 2 USB 2.0 ports), supporting up to 6 USB 2.0 groups 1 LVDS (with optional 2 LVDS channels) 1*FP 1*SATA LED 1 EDP (up to 2 EDPs optional) 1×4 input/4 output GPIOs (optional) 1*JLPT (optional) 1*SPK 3W Amplifier 1*Front panel 1*SATA (optional 2*SATA) 1*MINI PCIE(3G/4G/WIFI)
|
source | import rated dissipation | DC JACK 12V 60W |
watchdog | output margin | Intermittent, system restart Level 255 Fixed Time Interval |
Physical Parameters | size | 170mm (L) x 170mm (W) |
environment | temperature humidity | Operating temperature: 0°C to 50°C Storage temperature: -20°C to 70°C 5%–90% with no condensation |
operating system | edition | Windows 10/Windows 11/ Linux |
Order Details
AOS-MMHM86A-L1 | I3-4000M/I5-4200M/4300M/I7-4600M (single network, single COM port) |
AOS-MMHM86A-L2 | I3-4000M/I5-4200M/4300M/I7-4600M (2 COM ports per network) |
AOS-MMHM86A-L3 | I3-4000M/I5-4200M/4300M/I7-4600M (dual-network configuration with 6 COM ports) |

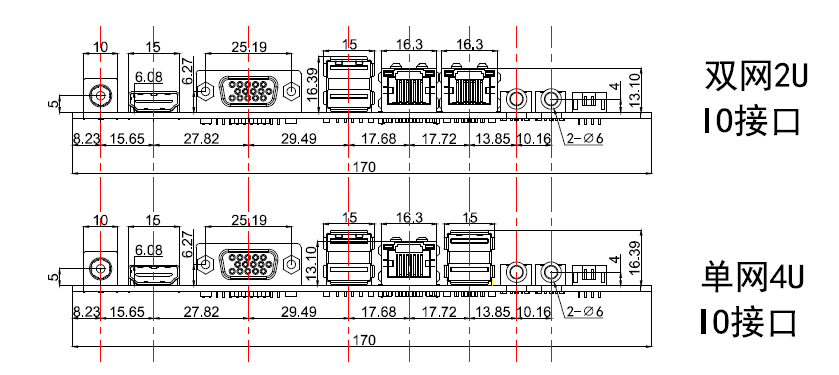

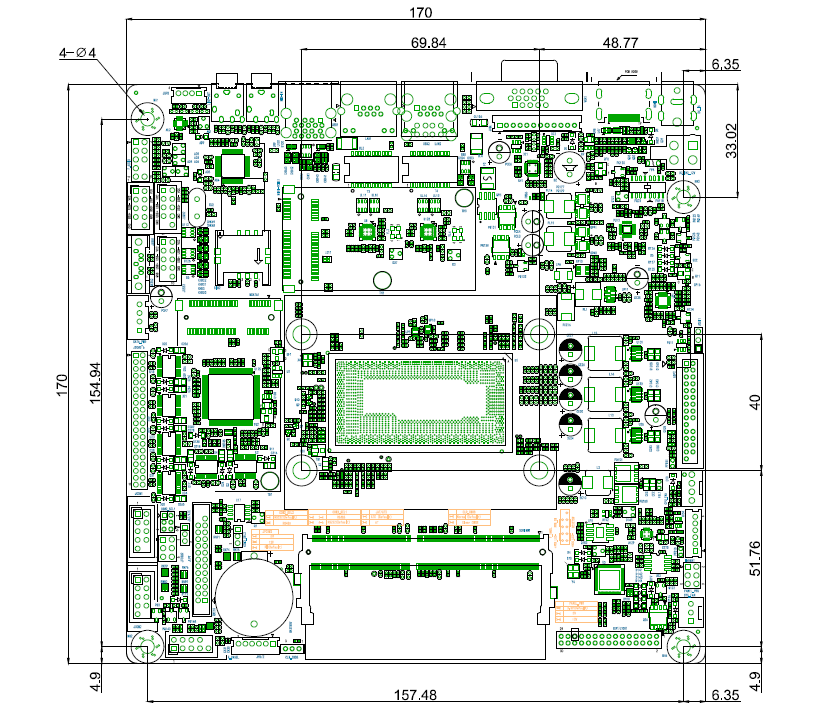

dimensional drawing
application area
Suitable for education, restaurants, hotels, shopping malls, corporate meetings, government transparency initiatives, and other fields.
