chip set

Intel® SOC

BIOS

AMI 32Mbit, supporting diskless boot, network wake-up, power-on startup, watchdog, and other functions

internal storage

capacity

2*SO-DIMM DDR4 3200MHz Max64GB

memory

M.2 Interface

SATA interface

1x M.2 M Key, supports SATA3/PCIe4 adaptive configuration;

1*SATA 3.0 interface

show

output

Display Chip

The U-series CPUs support LVDS/EDP, 2 HDMI ports, and DP1 interface for connection to up to 4 displays.

The P/H series CPU supports LVDS/EDP, 2 HDMI ports, and 2 DP ports, enabling up to 4 display connections.

Four simultaneous asynchronous displays

2 ¡Á HDMI (Maximum supported resolution: 3840x2160 at 30 Hz)

Intel® UHD Graphics

network

Chip

Onboard Intel i219-V+ and i210AT Gigabit network cards (available for single or dual networking)

other

USB

sound effect

expansion slot

Heat Dissipation System

I/O chip

Supports 3 USB 3.2 Gen 2 (10 Gbps) ports and 6 USB 2.0 ports

On-board ALC897 audio decoding controller; independent amplifier NS4251,3W @ 4¦¸ max

1¡Á M.2 E Key with Wifi6/Bluetooth module expansion support; 1¡Á M.2 B Key with 4G module expansion support (5G functionality optional); 1¡Á PCIe X4 expansion slot

It comes with a built-in fan cooler.

IT8786E

I/O Interface

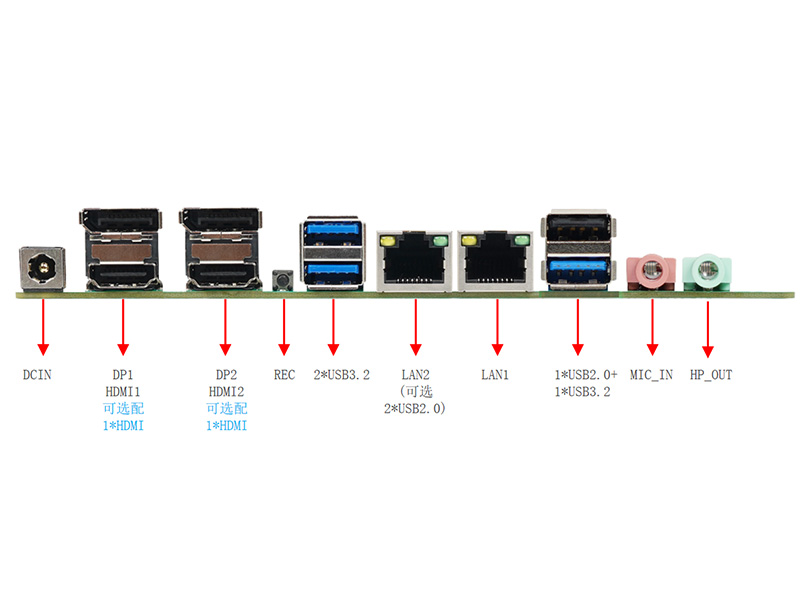

Rear I/O interface

1*DC_IN port

2* HDMI + 2* DP (dual-layer port with DP on top and HDMI at the bottom)

1*REC button (Supports system restoration/CMOS reset)

2 USB 3.2 ports (Gen 2, 10 Gbps)

1 LAN2 port (optional: 2 USB 2.0 ports)

1*LAN1 port

1*USB2.0+1*USB3.2

1*R_MIC

1*R_OUT

Onboard

Internal I/O pin

1*F/audio pin

1*Speaker pin

3 USB pins (قابل for expansion to 5 USB 2.0 ports)

1*LVDS/EDP pin

1*INVCN pin

1*GPIO pin (4 channels)

1. LPT pin

1*SATA pin

1*SATA power pin

6*COM pin

1*TPM pin

1*JPS2 pin

1*F PANEL Pin

1*SYS_FAN Pin

1*CPU_FAN pin

1¡Á4-pin ATX socket

source

import

DC/4Pin ATX 12V~19V wide-voltage power supply

watchdog

output

margin

Interrupt, system restart

Level 255 Fixed Time Interval

Physical Parameter

size

170mm (L) x 170mm (W)

environment

temperature

humidity

Operating temperature: 0¡ãC to 60¡ãC   Storage temperature: -20¡ãC to 75¡ãC

0%~95% No condensation

operating system

edition

Windows 10/Windows 11/ Linux

AOS-MMAU2L6C2H2DZ

Intel I3 1215U

AOS-MMAU2L6C2H2DZ

Intel I5 1250P/12450H/1235U

Intel I5 1340P/13450H/1335U

AOS-MMAU2L6C2H2DZ

Intel I7 1260P/12700H/1255U

Intel I7 1360P/13620H/1355U
