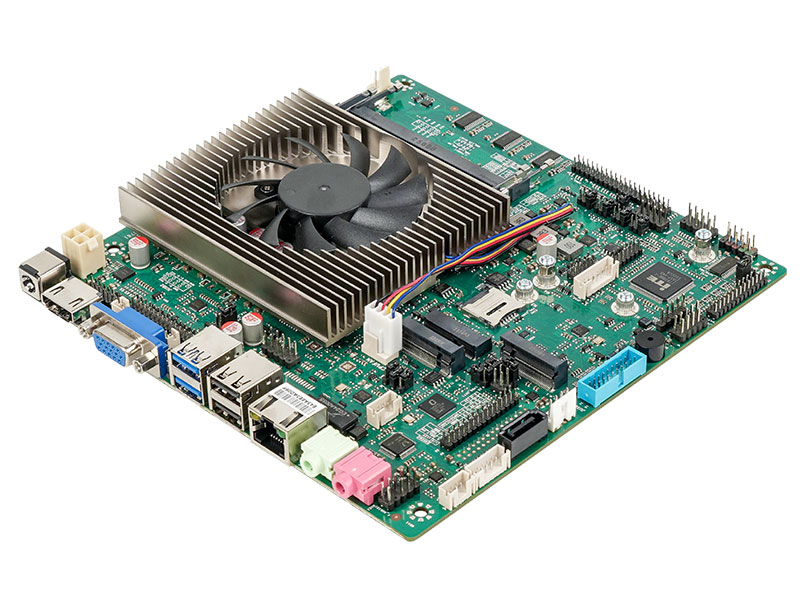

AOS-MMAU2L6CZ
Product introduction：
Specification Parameters
processor | CPU | Intel® 13th Raptor Lake & 12th Alder Lake (U/P/H) i5-1235U、i7-1255U、i5-1335U、i7-1355U i5-1250P、i7-1260P、i5-1340P、i7-1360P i5-12450H、i7-12700H、i5-13420H、i7-13700H |
chip set | Intel® SOC | |
BIOS | AMI 32Mbit, supporting diskless boot, network wake-up, power-on startup, watchdog, and other functions | |
internal storage | capacity | 2*SO-DIMM DDR4 3200MHz Max64GB |
memory | M.2 Interface SATA interface | 1*M.2 M Key ; 1*SATA3.0 Port |
show | output
Display Chip | LVDS/EDP1+EDP2+HDMI+VGA Four simultaneous asynchronous displays 1 × HDMI (Maximum supported resolution: 3840x2160 at 30 Hz) 1 × VGA (Maximum supported resolution: 2048×1536) Intel® Iris® Xe graphics card |
network | Chip | Built-in 1 x RTL8111H Gigabit network card (with optional dual-network support) |
other | USB
expansion slot
Heat Dissipation System sound effect | 2 USB 3.2 Gen 2 ports (10 Gbps, optional with 1 Type-C port) 2*USB3.0 Gen1（5Gbps）; 7*USB2.0 1*M.2 E Key, supports Wifi6 CNVi/Bluetooth module expansion; 1*M.2 B Key, supports 4G/5G module expansion It comes with a built-in fan cooler. On-board ALC897 audio decoding controller; independent amplifier NS4251,3W @ 4Ω max |

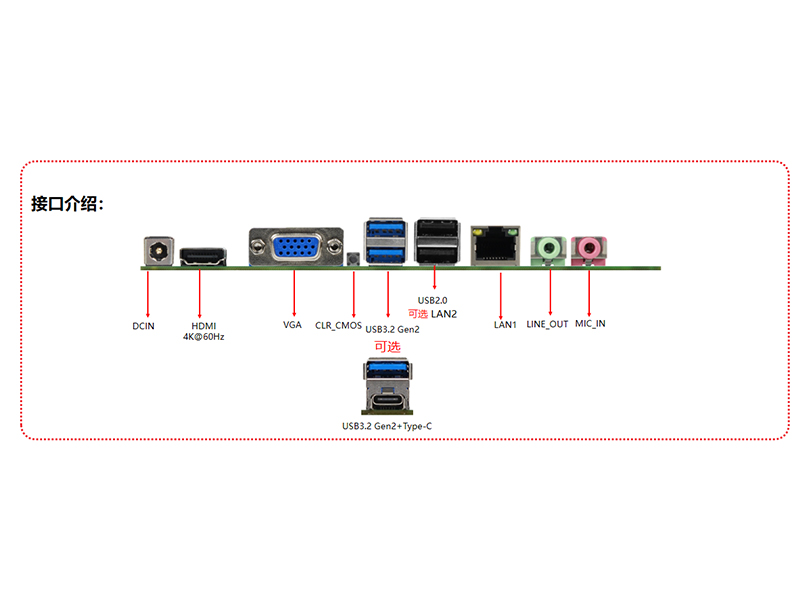

I/O Interface
| Rear I/O interface
| 1*DC_IN port 1 HDMI port 1* VGA port 1*Clear_CMOS button 2*USB 3.2 Gen 2 (10 Gbps); optional: 1*Type-C port 2 USB 2.0 ports (LAN 2 optional) 1*LAN1 port 1*LINE_OUT port 1*MIC_IN port |
Onboard | Internal I/O pin
| 1*Speaker pin 1*F/audio pin 1*LVDS pin 1*EDP1 pin 1*INVCN pin 1*SATA pin 1*SATA power pin 1*JUSB1 (قابل for expansion to 2*USB 3.0 Gen 1 at 5 Gbps) (When 5G is selected, this interface uses USB 2.0 signaling) 3×F USB (قابل for expansion to 5×USB 2.0) 1. LPT pin 1*PS2 pin 1*GPIO pin 1*TPM pin 1*F PANEL Pin 6*COM pin 1*CFAN pin 1*SFAN pin 1*EDP2 pin 1*VGA pin 1*HDMI pin 1*ATX socket |
source | import | The DC/4Pin ATX standard recommends using a power supply with 19V and at least 6.3A. |
watchdog | output margin | Interrupt, system restart Level 255 Fixed Time Interval |
Physical Parameter | size | 170mm (L) x 170mm (W) |
environment | temperature humidity | Operating temperature: 0°C to 60°C Storage temperature: -20°C to 75°C 0%~95% No condensation |
operating system | edition | Windows 10/Windows 11/ Linux |
Sales Model | explain |
AOS-MMAU2L6CZ | Intel I3 1215U 1.2GHz |
AOS-MMAU2L6CZ | Intel I5 1250P/12450H/1235U Intel I5 1340P/13450H/1335U |
AOS-MMAU2L6CZ | Intel I7 1260P/12700H/1255U Intel I7 1360P/13620H/1355U |
application area
It is suitable for education, restaurants, hotels, shopping malls, corporate meetings, government transparency, and other fields.
