chip set

Intel® B650/B850 Dual-Chipset Universal Design

BIOS

The AMI 32Mbit model supports diskless boot, network wake-up, power-on startup, watchdog functionality, and other features.

internal storage

capacity

2¡ÁDDR5 4800MHz laptop memory slots, up to 96GB capacity, UDIMM

memory

M.2 interface

SATA joggle

1¡ÁM.2 NVME 2280 PCIE4.0*4

1¡ÁM.2 NVME 2280 PCIE5.0*4

SATA+PW interface with 2 channels, compatible with traditional SATA devices

show

output

1 ¡Á HDMI 2.1 (Supports maximum resolution: 7860x3840 at 60Hz)

1 ¡Á DP2.1 (Maximum supported resolution: 7860x3840 at 60Hz)

1 ¡ÁType-C

1 ¡ÁUSB-A

network

slug

2 ¡Á 2.5G RJ45 Ethernet ports

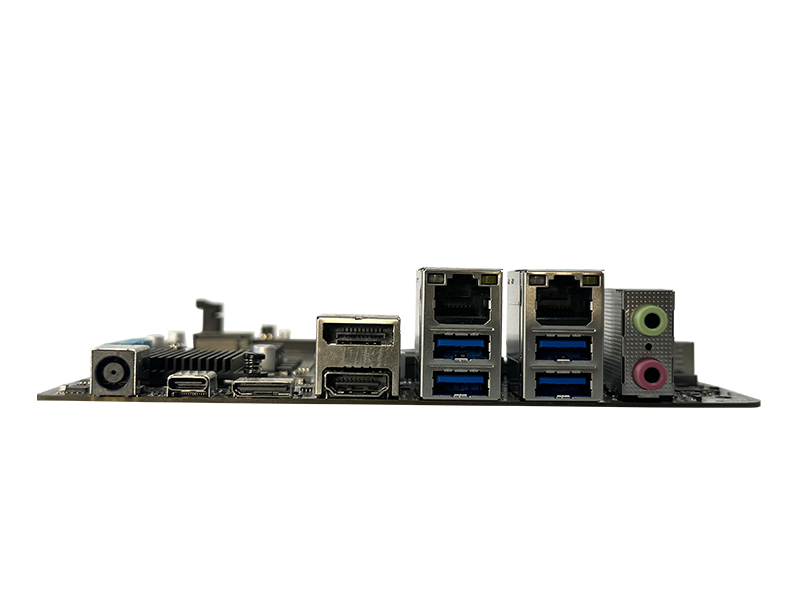

I/O

DC

HDMI

DP

Type-C

USB3.2

USB3.2

Oculink

RJ45

audio frequency

USB3.2

TYPE-C

TYPE-C

audio frequency

Power

LED

1¡ÁDC DC input

1¡ÁHDMI2.1

1¡ÁDP2.1

1¡ÁType-C (USB 4.0 full functionality)

2¡ÁUSB 3.2 Gen2 10G*2

2¡ÁUSB 3.2 Gen1 5G*2

1x Oculink (expandable graphics card functionality)

2¡Á2.5G RJ45 Gigabit network ports (RTL8125B)

1¡ÁAudio, 1¡ÁMicrophone

1*USB 3.2 GEN1 5G Port A

1¡ÁType-C 10G FastPass PD+DP+ data port (5V/3A external power supply)

1*Type-C 10G data

1*MIC IN/LINE OUT

1*POWER

1*LED

Board-mounted functions

Panel

USB

Fan interface

M.2 slot

Graphics card slot

1¡ÁPanel switch interface

1¡ÁUSB2.0

SYS Fan + CPU Fan with 12V interface (1 channel each, supports fan speed adjustment)

M.2 2230 WIFI: Dedicated Wi-Fi card slot (exclusive to M.2 interface, not compatible with M.2 SSD slots; choose one)

M.2 2280 PCIE4.0*4:1 lanes, high-speed solid-state expansion

M.2 2280 PCIE5.0*4:1 lanes, featuring flagship-level solid-state drive speed support

PCIE 16X slot with support for high-performance dedicated graphics cards

source

import

DC 5525 19V Power Input Port

watchdog

output

margin

Interrupt, system reboot

Level 255 Fixed Interval

Physical parameters

size

190mm (L) x 190mm (W)

environment

temperature

humidity

Operating temperature: 0¡ãC to 50¡ãC Storage temperature: -20¡ãC to 70¡ãC

5%~90% without condensation

operating system

edition

Windows 10/Windows 11/ Linux

AOS-MMA5B62L3DH

Ryzen 7000 6-core 12-thread to 16-core 32-thread

Ryzen 8000 4-core 8-thread to 8-core 16-thread

Ryzen 9000 8-core 16-thread to 16-core 32-thread
