AOS-MMIUOA
Product introduction：
Product introduction
MINI-ITX industrial motherboard (172*190mm)
Support Ice Lake-U series 10th I3/I5/I7CPU
Support asynchronous dual-triple display (HDMI+DP/LVDS)
Support Gigabit Ethernet port (optional dual Ethernet port)
Support single-channel DDR4 memory, maximum support 32G
Support 1*SATA3.0/MSATA/M.22280 NGFF/MVME interface
2*USB2.0, 4*USB3.0, 1*type-c, 1*RS232
Support network wake-up, power-on, watchdog, etc.
The product complies with CE FCC ROHS specifications
Specifications
Processor
Memory | CPU | Intel Icelake-u I5 1035G1 1.0GHZ quad-core eight-thread |
Chipset | (I5 1035G4 1.1G 4-core/1065G7 1.3G 4-core) | |
BIOS | Intel® SOC | |
Storage | Capacity | 4GB DDR4 2133/2400 MHz memory , Max.32GB |
Display | SATA interface | 1*SATA 3.0 1*MSATA 1*M.2 Key M NVME/SATA 2280 |
Network | MSATA | CPU integrated graphics card HD Graphics HDMI+DP/LVDS single display, dual display (synchronous/asynchronous display) 1 × HDMI (maximum supported resolution: 3840x2160 60HZ) 1 × DP (maximum supported resolution: 3840x2160 60HZ) |
Processor | M.2 interface | 1 × 10/100/1000M（RJ45 LAN）Optional dual network ports 1 x WIFI Module support 802.11b/g/n （M.2 PCIE half card） |

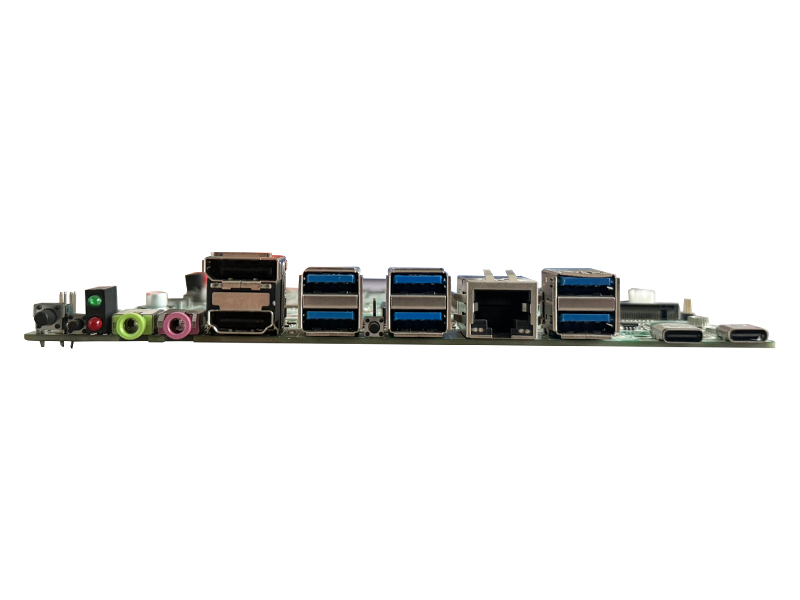

I/O | POWER Rest 音频 USB3.0 DP HDMI USB 2.0 USB 3.0 GOST RJ45 Type-c
DC JACK
| 1x switch 1x Reset 1 × LINE-OUT & MIC-IN 4x USB3.0 1× DP 1 × HDMI 2.0 2 × USB2.0 4 × USB3.0 1X System Restore 1 × RJ45 Ethernet port 1 × type-c (USB2.0) 1 × DC JACK interface (optional for rear I/O) |
Onboard functions | COM口 USB2.0 MINI PCIE LVDS LED SPK PANEL SATA
| 1*RS232 (optional multi-COM (default single COM) 1*USB pin (expandable 2*USB2.0) supports up to 5 groups of USB2.0 1*MINIPCIE (3G/4G) 1*LVDS 1*SATA LED 1*SPK (3-5W) 1*Front panel 1*SATA |
Power supply | Input | DC JACK 12V-19V 60W |
Watchdog | Rated power consumption | Interrupt, system restart |
Physical parameters | Output | 255-level timing interval |
Environment | Interval | 172mm (L) x 190mm (W) |
Operating system | Dimensions | Windows 10/Windows 11/ Linux |
Ordering Information
Sales Model | Description |
AOS-MMIUOA | I5 1035G1/1035G4/I7 1065G7 (Single network singleCOM) |
AOS-MMIUOA | I5 1035G1/1035G4/I7 1065G7 (Dual network singleCOM) |
Dimensions
Application Areas
Applicable to education, restaurants, hotels, shopping malls, company meetings, government affairs disclosure and other fields.
