Processor

Integrated Intel® Celeron J4125 2.0GHz Quad-Core Processor, TDP 10W

Compatible with the full range of Intel® Gemini Lake CPUs

Memory

 1* SODIMM slot, support single-channel 2400MHz DDR4 memory, maximum support 8GB (default)

Onboard LPDDR4 4G/8G memory (optional)

Display

Integrated Intel® UHD Graphics 600 core graphics card

1* VGA connector, 1* HDMI connector, 1* LVDS or eDP connector (default LVDS)

Support VGA, HDMI, LVDS or eDP synchronous / asynchronous triple display

Network

1* Realtek RTL8111H Gigabit LAN card (2 networks optional), support Wake-on-LAN/PXE

Storage

1* 7pin SATA3.0 hard disk interface, transfer rate up to 6Gbps

1* 2.5-inch hard disk interface (optional, and 7pin SATA3.0 interface, choose one)

1* mSATA3.0 slot (long card)

1* Onboard 64GB or 128GB eMMC (optional)

Audio

Onboard ALC888/ALC662 6-channel hi-fi audio controller with MIC/Line-out support, amplifier (supports 2-ohm 5W dual-channel)

Expansion Slots

1* Mini-PCIe slot (half card and long card are supported), support WIFI/4G module (optional 4G, need to support 4G to do hardware adjustment)

1* Mini-PCIe slot (half card, optional), support WIFI module

1* PCIe x1 SLOT slot (and half-card Mini-PCIe two choose one, optional)

Backplane I/O Ports

1* HDMI display interface

1* VGA display interface

2* USB 2.0 interface (when this 2 USB2.0 effective, built-in can only support 4 USB2.0)

2* USB3.0 interface

1* RJ-45 Gigabit network interface (LAN2 and USB2.0 are optional)

1* Line out connector (green), 1* MIC connector (red)

1* 12V DC power input connector

Built-in I/O Ports

1* JHDMI connector 2*8Pin (optional)

1* JVGA connector 1*12Pin (same signal as DB15)

1* LVDS connector 2*15pin, support dual-channel 24bit (and eDP one or the other, default)

1* Screen backlight power supply connector 1*6pin

1* eDP connector 2*15pin (either one or LVDS, optional)

6* USB 2.0 interface 2*5Pin (when supporting single network, support 4 USB2.0; when need to support 4G, one of the USB2.0 interface is invalid)

1* Front Audio Interface 2*5pin

1* Amplifier connector 1*4pin

6* COM interface (COM1~2 support RS485, COM1/2 9th P charged, optionally support 4 485)

1* LPT interface

1* 4pin ATX power supply interface

1* Hard disk power supply interface

1* Front panel switch button and indicator interface 2*5Pin

Fan Interface

Fanless cooling design, reserved 1*4pin CPU fan interface, reserved 1*4pin system fan interface

GPIO

Supports 4 input/output GPIOs

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Operating System

Windows 10/Linux

Power Supply Type

DC 12V power supply

Operating Temperature

60℃～20℃

Storage Temperature

-20℃～70℃

Working Humidity

5%-95% relative humidity, non-condensing

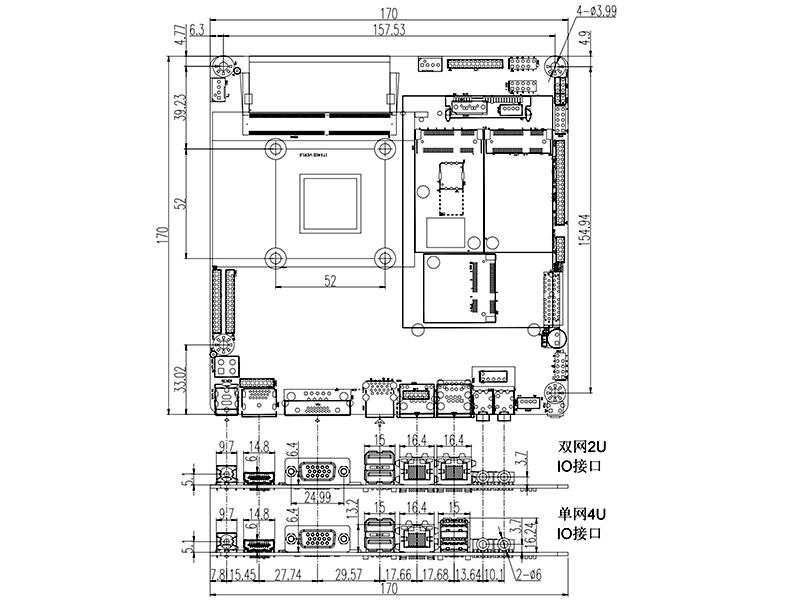

Dimension

170mm x 170mm

1

AOS-ITXJ40D VER1.1

J4125

4

2.0G

DDR4

1

1

1

/

1

8

/

1

2 / 1

12V
