chip set

Intel® SOC

BIOS

The AMI 32Mbit model supports diskless boot, network wake-up, power-on startup, watchdog functionality, and other features.

internal storage

capacity

2¡ÁDDR5 (SO-DIMM slots, supports up to 64GB)

memory

M.2 interface

SATA joggle

1¡ÁM.2 NVME

1 ¡ÁSATA

show

output

Type-C

1 ¡Á HDMI (Supports maximum resolution: 7860x3840 at 60Hz)

1 ¡Á DP (Maximum supported resolution: 7860x3840 at 60Hz)

2¡ÁType-C

1 ¡ÁUSB3.2

network

slug

2 ¡Á 2.5G RJ45 Ethernet ports

I/O

DC

HDMI

DP

Type-C

Type-A

USB3.2

Oculink

RJ45

audio frequency

USB3.2

Power

LED

1¡ÁDC DC input

1¡ÁHDMI

1¡ÁDP

2¡ÁType-C

4 ¡ÁType-A

2¡ÁUSB 3.2

1x Oculink (expandable graphics card functionality)

2¡Á2.5G RJ45 Gigabit network ports (RTL8125B)

1¡ÁAudio, 1¡ÁMicrophone

1*USB 3.2 GEN1 5G Port A

1*POWER

1*LED

Board-mounted functions

Panel

USB

Fan interface

M.2 slot

Graphics card slot

Pin array interface

1¡ÁPanel switch interface

1¡ÁUSB2.0

SYS Fan + CPU Fan with 12V interface (1 channel each, supports fan speed adjustment)

M.2 2230 WIFI: Dedicated Wi-Fi card slot (exclusive to M.2 interface, not compatible with M.2 SSD slots; choose one)

M.2 2280 PCIE4.0*4:1 lanes, high-speed solid-state expansion

M.2 2280 PCIE5.0*4:1 lanes, featuring flagship-level solid-state drive speed support

PCIE 16X slot with support for high-performance dedicated graphics cards

GPIO / Serial port / Audio expansion pins

source

import

DC 5525 19V Power Input Port

watchdog

output

margin

Interrupt, system reboot

Level 255 Fixed Interval

Physical parameters

size

135mm (L) x 120mm (W)

environment

temperature

humidity

Operating temperature: 0¡ãC to 50¡ãC Storage temperature: -20¡ãC to 70¡ãC

5%~90% without condensation

operating system

edition

Windows 10/Windows 11/ Linux

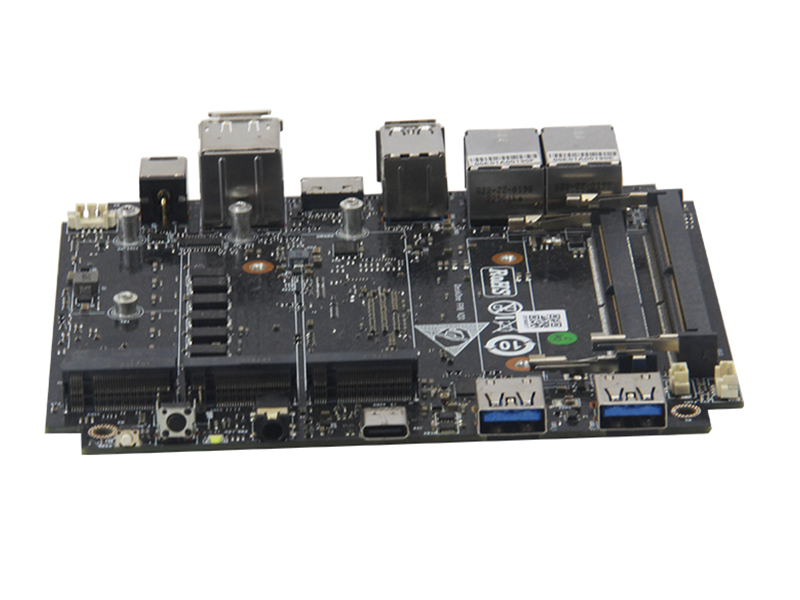

AOS-N12RZ72L4DH

AMD Ryzen AI 9 HX 370 with 12 cores and 16 threads, featuring a maximum turbo frequency of 5.1GHz

AMD Ryzen 7 8845HS, featuring 8 cores and 16 threads with a maximum turbo frequency of 5.1GHz

AMD Ryzen 7 7840H,8-core processor with 16 threads and a maximum turbo frequency of 5.1GHz

AMD Ryzen 7 5800H, featuring 8 cores and 16 threads with a maximum turbo frequency of 4.4GHz
