AOS-N12N102H1VH
Product introduction：
Product introduction
NANO-ITX Industrial Motherboard
Supports AlderLake-N platform, N95/N97/N100/N150/N250/i3-N305 series CPUs
Supports 2 x RJ45 Gigabit Ethernet ports
Supports 4 x USB 3.0, 2 x USB 2.0 (up to 10 optional ports)

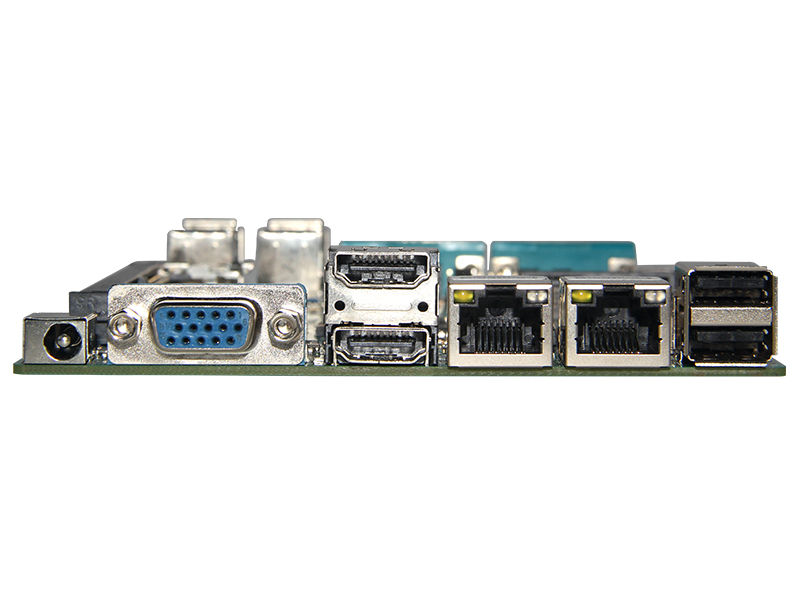

Supports 2 x HDMI, 1 x VGA (synchronous/asynchronous triple display)
Supports 2-6 optional COM ports
Complies with CE, FCC, and ROHS regulations
Dimensions: 120mm x 120mm
Specifications
CPU | CPU | Intel Alder lake-N/Twin Lake Plat Series N95/N97/N100/N150/N250/i3-N305 Series Cpu |
Chipset | Intel® SOC | |
BIOS | AMI 32Mbit, Diskless boot, WOL, Power-on boot, watchdog, ect | |
Memory | Capacity | 1× DDR4 SODIMM Memory Slot，max 16GB |
Storage | SATAPort M.SATA | 1×SATA3.0, 1×M.2 Key-M 2280 Seif-adaptive PCIE/SATA SSD Slot |
Disply | Chipset Output | Intel CPU HD DisplyController 2×HDMI port 4K@ 60Hz（Max：3840x2160p） 1×VGA Port（Max：1920×1080pChoice） Supports HDMI+HDMI+VGA Synchronous/Asynchronous Triple Disply |
Internet | Lan WIFI | 2×RJ45 1000M network RTL8111H 1×WIFI Module support 802.11b/g/n （M.2 half card） |
I/O | USB 3.0 USB 2.0 COM HDM VGA Network LED Light DC JACK Audio | 4×USB3.0 2×USB2.0，（Max Supports 10）Choice 2~6×COM（Choice） 2×HDMI 1×VGA 2×RJ45 1 x power light & 1x HDD light 1× DC JACK Onboard AL897 7.1 High fidelity audio controller,Mic-in/Line-out dual Audio interface |
Power | Input Rated Power | DC 12~19V 45W |
Watchdog | Input Interval | Interrupt, system restart 255 time interval |
Physical Parameters | Dimension | 120mm (L) x 120mm (W) |
Environment | Temperature Humidity | Working Temp.: 0°C ~50°C, Storage Temp.: -20~70°C 5%~90% No Condensation |
Operating System | Version | Windows 10/Linux |
Ordering Informations
Sales Model | Specification |
AOS-N12N952H1VH | CPU：N95 3.40 GHz |
AOS-N12N972H1VH | CPU：N97 3.60 GHz |
AOS-N12N102H1VH | CPU：N100 3.40 GHz |
AOS-N12N1052H1VH | CPU：N105 3.80 GHz |
AOS-N12N1502H1VH | CPU：N150 3.80 GHz |
AOS-N12N2002H1VH | CPU：N200 3.70 GHz |
AOS-N12N3002H1VH | CPU：N300 3.80 GHz |
AOS-N12N3052H1VH | CPU：N305 3.80 GHz |
Areas of Application
Application to robotice、visual inspection、Industrial automation、industrial manufacturing、intelligent transportion、renewable energy、eletricity、militady Industry、medical care、commercial disply、communication control、medical instruments、Industrial control、financial equipment、cloud terminals。
