AOS-SPD282S7215Z
Product introduction£º
Specification
processor
LCD | CPU | Phytium FT-D2000(8-core/2.3GHz/25W) |
Chip | SOC | |
BIOS 15 inch touch | supports diskless boot, network wake-up, power-on, watchdog, etc. 10.1/13.3/15 (1024*768 resolution)/17/21.5/23 inch optional Capacitive (capacitive G+G touch program/10-point touch), resistive optional | |
Memory | Capacity | 8GB SO-DIMM DDR4 2666MHz memory , Max.32GB |
Storage | SATA interface MINI PCIE M.2 | 2x SATA3.0 1X m.2 PCIE 256G M.2 SSD |
Display | graphics card outputs
| JM 7201 2G VGA+HDMI single display , dual display (same/asynchronous display) 1 ¡Á VGA (maximum supported resolution: 1920 x 1080) 1 ¡Á HDMI (maximum supported resolution: 1920x1080) |
Networking | оƬ | 1-2 ¡Á 10/100/1000M£¨RJ45 LAN£© |
I/O | USB 3.0 USB 2.0 COM Power button GPIO LED light Audio | 4x USB3.0 6¡Á USB2.0 2-6x COM(optional) 1 ¡Á power button 1 X 4 in 4 out GPIO(optional) 1 x Power Indicator & 1 x Hard Disk Indicator 1 x LINE-OUT & MIC-IN |
Power supply | Rated Power Consumption | DC 12V-19V 90W |
Watchdog | Output Interval | Interrupt, system restart 255-level timer interval |
Physical Parameters | Dimension | 352mm (L) x 276mm (W) x 64mm (H) |
Environment | Temperature Humidity | Operating temperature: -10¡ãC ~70¡ãC Storage temperature: -20~75¡ãC 5%~90% Non-condensing |
Operating System Chassis parameters | Versions | Kylin/UOS/NFS-China / Linux aluminium alloy |
Ordering Info
Sales Model | Description |
AOS-SPD282S7215Z | FT-D2000 2.3GHz(8 -core) 8G RAM 256G SSD 7201 2G Graphins 15 inch |

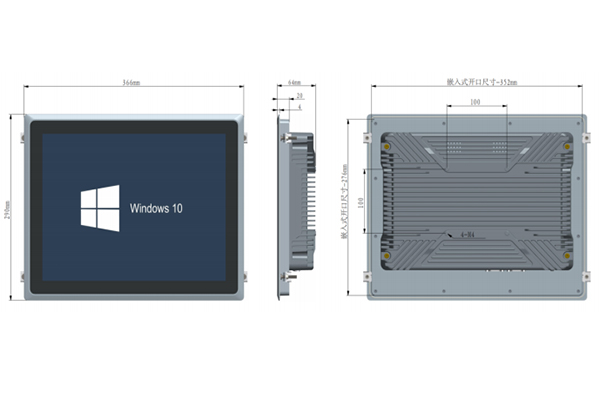

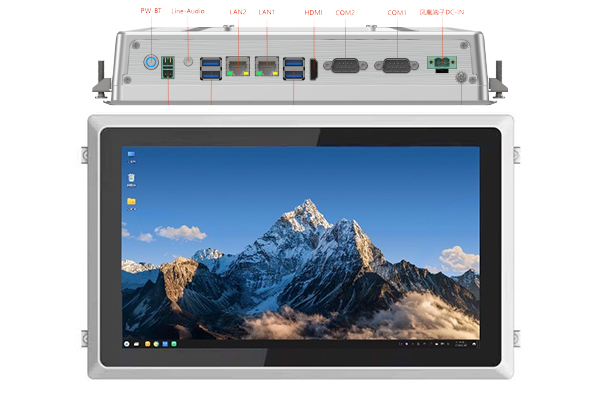

Dimensioned Interface Schematic
Area of Application
Applied to machine vision, highway, lane control, mechanical testing equipment, intelligent transportation, intelligent factory, intelligent power control, CNC equipment manufacturing environmental protection monitoring,
Pharmaceutical equipment, wind power monitoring, tire vulcanization, industrial automation control and other industrial areas.
