chip set

SOC

BIOS

Bai'ao supports features such as diskless startup, network wake-up, power-on startup, and watchdog.

internal storage

capacity

4GB SO-DIMM DDR4 2400 MHz memory ,  Max.32GB

memory

M.2 Interface

MINI PCIE

128G SSD  1X M.2 2280 NGFF

1X Mini PCIE (WIFI/3G/4G)

show

integrated graphics

output

VGA + HDMI single display; dual displays (ͬ²½/asynchronous)

1 ¡Á VGA (Maximum supported resolution: 1920x1080)

1 ¡Á HDMI (Maximum supported resolution: 3840x2160 at 60 Hz)

network

Chip

WIFI

1 ¡Á RTL8111H (10/100/1000 Mbit/s; optional: 2 RJ45 LAN ports)

1 x WIFI Module support 802.11b/g/n £¨M.2 half card£©

I/O

USB 2.0

USB 3.0

Power button

COM

LED lamp

DC JACK

audio frequency

6x USB2.0

2¡Á USB3.0

2 ¡Á power button

6 ¡Á COM(RS232)

            1 x Power indicator light & 1 x Hard drive indicator light

1 ¡Á DC JACK

1 ¡Á LINE-OUT & MIC-IN, featuring the integrated 6-channel audio effect ALC662 sound card chip

source

import

rated dissipation

DC  12~19V

60-90W

watchdog

output

margin

Intermittent, system restart

Level 255 Fixed Time Interval

Physical Parameters

size

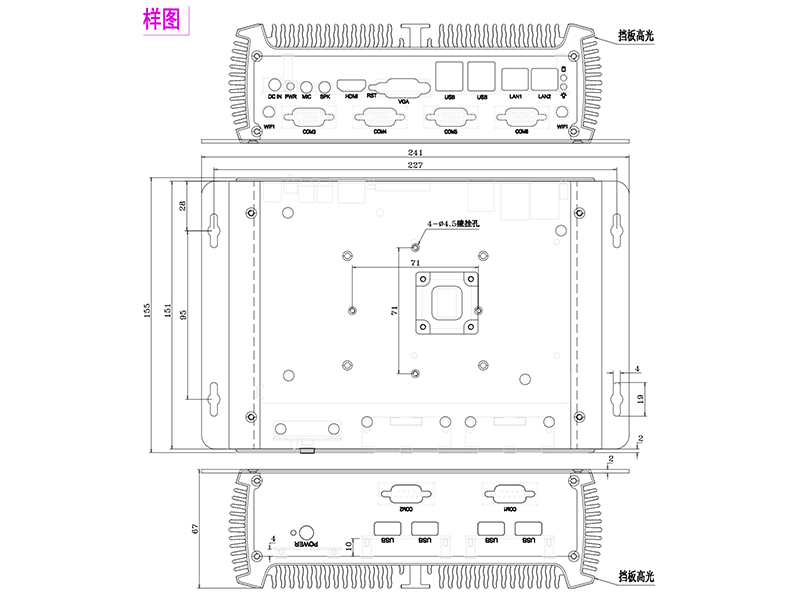

241mm (L) x 155mm (W) x 67mm (H)

environment

temperature

humidity

Operating temperature: 0¡ãC to 50¡ãC   Storage temperature: -20¡ãC to 70¡ãC

5% to 90% with no condensation

operating system

edition

Windows 10/Windows 7/Ubuntu/Linux/Baidu Kirin/Zhongke Fangde/CentOS

AOS-SEZKU6541S106CG

KX-U6580 2.5 GHz, 4 GB RAM, 128 GB SSD

AOS-SEZK67A41S106CG

KX-6780A,2.7 GHz processor, 4 GB RAM, 128 GB SSD

AOS-SEZK6A341S106CG

KX-6640MA 2.2 GHz, 4 GB RAM, 128 GB SSD
