chip set

Intel® SOC

BIOS

Bai Ao BIOS

internal storage

capacity

2*SO-DIMM DDR4 2666MHz Max32GB

memory

M.2 interface

SATA joggle

1M.2M Key, supports SATA/PCIe X2 adaptive technology

1*SATA3.0 interface

show

Display chip

output

C-960 Integrated Graphics

LVDS/EDP (4K-compatible) + HDMI + VGA (only the graphics card interface displays when connected to a graphics card)

network

slug

2 ¡Á  10/100/1000M£¨RJ45 LAN£©

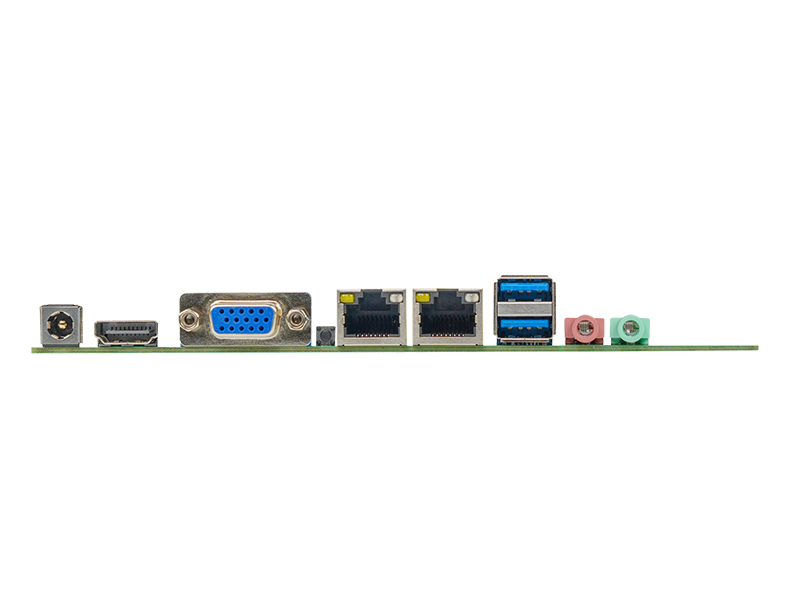

I/O

DC

HDMI

VGA

REC

LAN

audio frequency

USB

REC push-button

1¡ÁDC_IN port

1¡ÁHDMI

1¡ÁVGA

1¡ÁREC

2¡ÁRJ45 Gigabit network ports

1¡ÁAudio

4*USB3.0 Gen1 (5Gbps);  5*USB2.0

Restore/Clear CMOS with one click

Board-mounted functions

COM

USB

F_MIC

F_OUT

LVDS

GPIO

MSATA

SATA

AUDIO

sound effect

Speaker pin

EDP contact pin

INCN contact pin

ATX jack

expansion slot

6 serial ports

2¡ÁUSB3.0

4¡ÁUSB2.0

1*F Mic port

1*F_OUT port

1¡ÁLVDS

1¡ÁGPIO pin (2 channels)

1¡ÁMSATA

1¡ÁSATA

1*F_AUDIO

Board-mounted ALC897 (integrated amplifier) audio decoding controller; Independent power amplifier NS4251 3W@4¦¸

1*Speaker pin

1*EDP pin

1*INCN pin insertion

1*ATX socket

1¡Á M.2 E Key with Wifi module expansion support (PCIe X1 and USB interfaces); optional 1¡Á M.2 B Key for 4G/5G module expansion.

Optional 1*PCIEX16 slot (PCIEX8 signal)

source

import

DC/4-pin ATX 12-19V wide voltage power supply

A 19V 6.3A power supply is recommended.

watchdog

output

margin

Interrupt, system reboot

Level 255 Fixed Interval

Physical parameters

size

170mm (L) x 170mm (W)

environment

temperature

humidity

Operating temperature: 0¡ãC to 60¡ãC Storage temperature: -20¡ãC to 75¡ãC

5%~95% no condensation

operating system

edition

Kirin / UnionTech UOS / Windows 10

AOS-MMZXK672L6CPZ

KXU6780A 8-core 8-thread processor with a maximum clock speed of 3.0GHz (base 2.7GHz)

KXU6780 8-core 8-thread 2.7GHz processor
