AOS-MSFTD300CW
Product introduction£º
Product Description
ATX industrial motherboard
Using Feiteng D3000 eight-core 2.5GHz
Support M.2 NVME 2280 SSD, 2*SATA interface
Support 2 DDR5-UDIMM expansion memory slots, up to 96GB
Support up to 1 COM, 10*USB3.0, 1*Gigabit network port
Support AMD/NVDIA/Domestic Core Motion/Jingjiawei and other brand graphics cards
2*PCIe x16, 1*PCIe x8, 1*PCIE X1 slot
Support TCM/TPM2.0 trusted module algorithm, Kirin/UOS system
Support network wake-up, power-on, watchdog, etc.
The product complies with CE FCC ROHS specifications
Specification
Processor | CPU | Feiteng D3000, 8-core processor 2.5GHz, TDP 70W |
Chipset | without | |
BIOS | Baiao UEFI BIOS | |
Memory | Capacity | DDR5-4800 8G , 2*U-DIMM, up to 96 GB |
Storage | SATA interface M.2 interface | 2*SATA 3.0 |
Display | chipset | PCIE X16 connectable graphics card |
Network | Chip | 1 ¡Á 10/100/1000M |

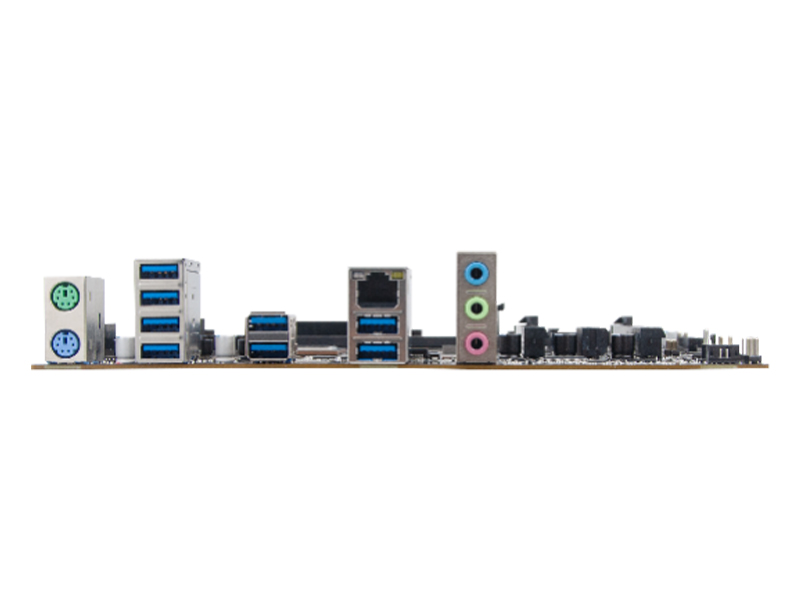

I/O | PS/2 USB 3.0 RJ45 Audio | 2 x PS/2 8x USB3.0 1 ¡Á 1000M RJ45 1 ¡Á LINE-OUT & MIC-IN&LINE IN
|
Onboard functions | COM Port SATA USB PCIE
| 1 X RS232 string (not available by default, multiple strings are optional) 2 X SATA3.0 1 x USB2.0 pin 2*USB3.0 pin (up to 4 sets of USB3.0 are supported). 2*PCIe x16, 1* PCIe x1 (four serial parallel signals can be extended) |
Power supply | Input Rated power | ATX 1*24Pin +1*8Pin 200W |
Watchdog | Output Interval | Interrupt, system restart 255-level timing interval |
Physical parameters | Dimensions | 235mm (L) x 206mm (W) |
Environment | Temperature Humidity | Working temperature: 0¡ãC ~50¡ãC Storage temperature:-20 ~ 70 C. 5%~90% non-condensing |
Operating system | Version | Kirin /UOS/ Linux |
Ordering information
Sales model | Description |
AOS-MSFT300CW | D3000/single network/8USB3.0 |
Drawing
Areas of application
Applicable to education, restaurants, hotels, shopping malls, companymeetings, government affairs disclosure and other areas.
