touchscreen parameters

Touch type

Input method

Service life

Maximum resolution

Linearity error

Light transmittance

Surface hardness

G+G capacitive 10-point touch screen

Operated by finger or stylus

>50 million cycles

4096X4096

< 2.5mm

285%

¡Ý6H

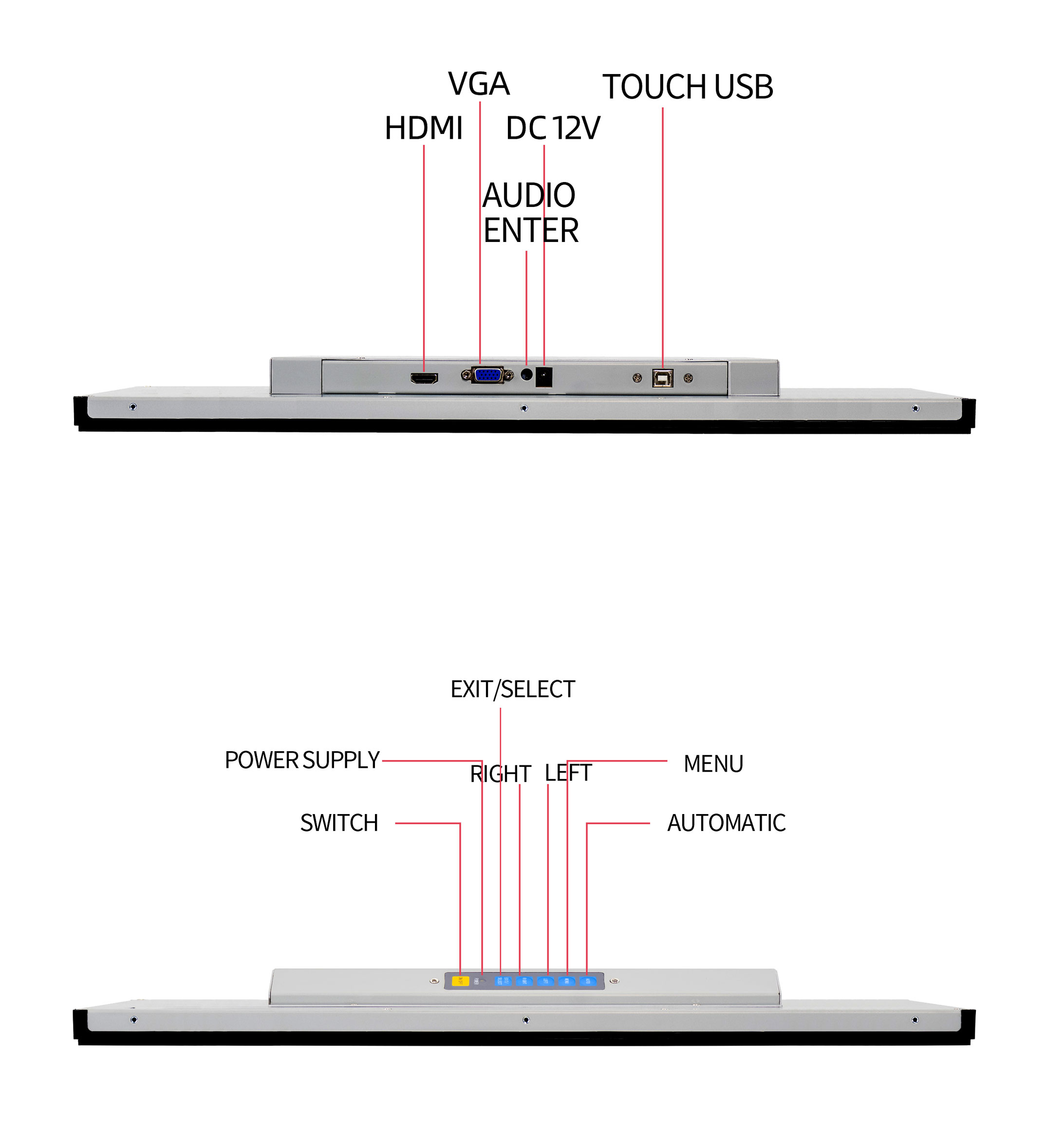

interface

Input

Output

DC

HDMI, HDMI socket, horizontal

VGA, 15-pin D-SUB, blue, horizontal with hexagonal screws

PANEL interface, PH2.0, 2 x 15 pins (PA6T)

JACK, horizontal, 2.1mm power socket, horizontal

power source

Input power

Driver voltage

Power operation

Motherboard standby power consumption

OSD menu

OSD language

Keys

DC12V(+/-0.5V)

3.3V/5V/12V selectable

Normal mode, low power mode

<0.25W

Brightness, contrast, auto calibration, phase, clock, horizontal and vertical position, function settings, reset, etc.

Chinese, English, French, German, Spanish, etc. (selectable)

POWER, AUTO, MENU, UP, DOWN keys

environmental parameters

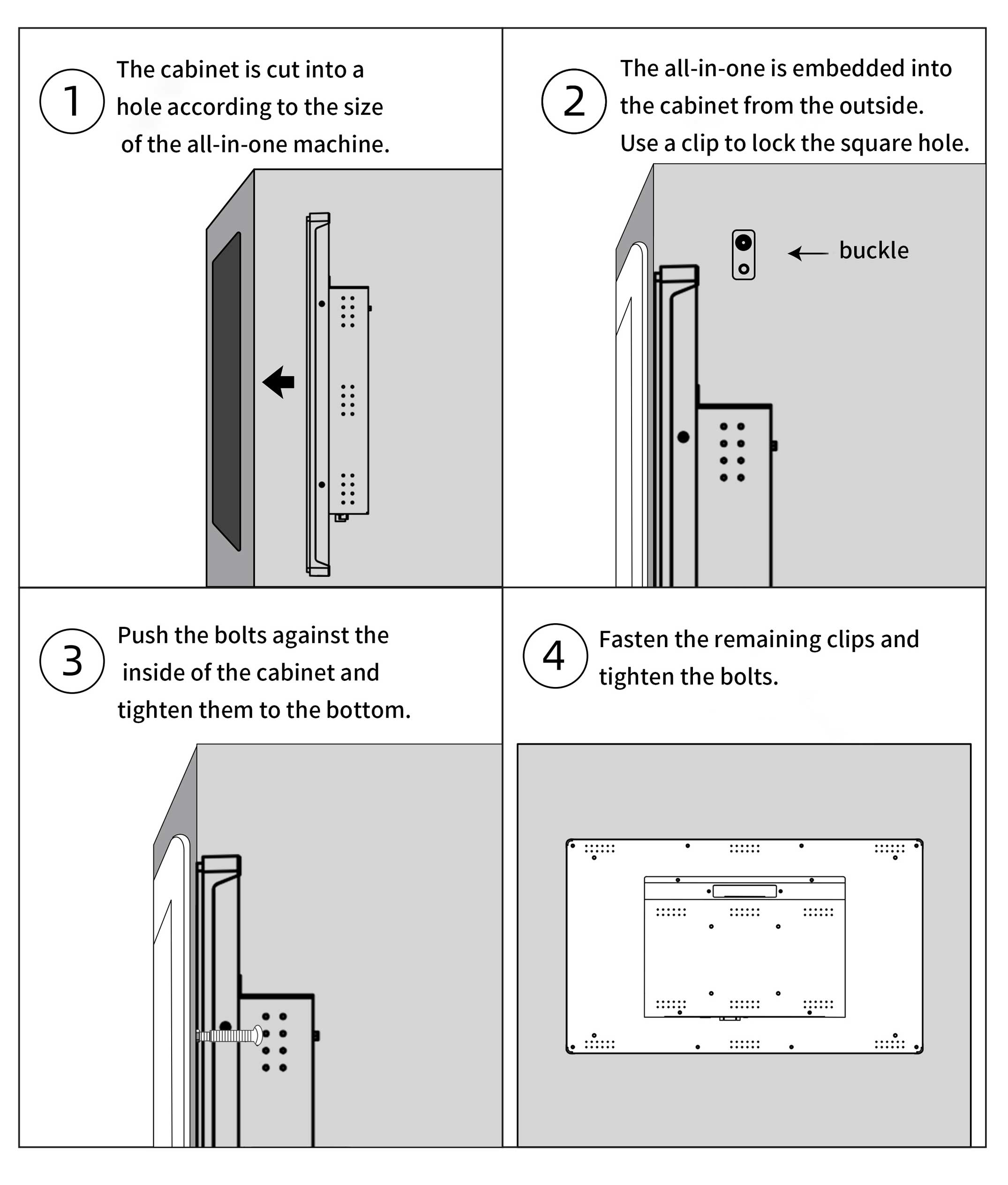

Mounting method

Power supply performance

Operating temperature

Storage temperature

Operating current

Built-in, wall-mount, desktop, VESA-compliant support arm

12V 5A external power supply

0~50C

-10~60C

S5A

support signal

VGA

HDMI

PC

Analog RGB (0.7Vpp) signal

HDMI digital signal

Maximum supported resolution: 1920 x 1200

Color: 32-bit

Horizontal sync range: 31.5-94kHz

Vertical sync range: 60-75Hz
