AOS-SSH11J162S5IHBU
Product introduction£º
Product introduction

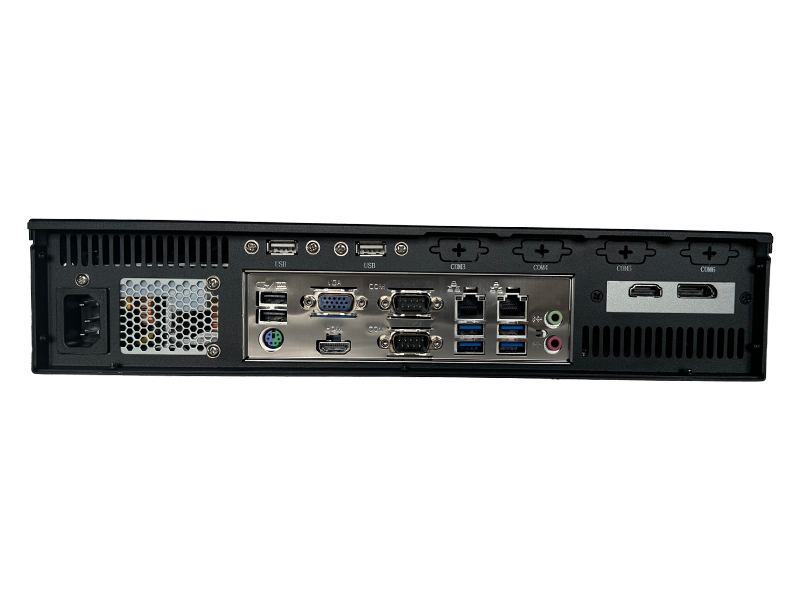

Wall-mounted MINI industrial computer
Support Skylake/KabyLake LGA1151 package I3/I5/I7CPU
Support INTEL H110/Q170/B250/C236 high-speed chipset
Support dual Gigabit network ports, support asynchronous dual display (HDMI + VGA)
Support multi-channel DDR4 memory, maximum support 64G
Support 2*SATA3.0, 1*MSATA interface
Support 1*PCIE 3.0X16, 6*RS232, 4*USB3.0
Support network wake-up, power-on, watchdog, etc.
The product complies with CE FCC ROHS specifications
Specifications
Processor | CPU | Supports Intel Skylake/Kaby Lake-s Core i3/i5/i7/Xeon/Celeron/Pentium LGA1151 processors. |
Chipset | Intel® H110/Q170/B250/C236 | |
BIOS | AMI 32Mbit£¬support diskless startup network wake-up power on watchdog and other functions | |
Memory | Capacity | 4GB DDR4 2133/2400 MHz memory , Max.64GB |
Storage | SATA interface MSATA interface | 2*SATA 1*MSATA |
Display | chip set output
| CPU integrated graphics card HD Graphics VGA+HDMI single display, dual display (synchronous/asynchronous display) 1 ¡Á VGA £¨max£º1920¡Á1080£© 1 ¡ÁHDMI £¨max£º3840x2160 30HZ£©
|
Internet | Chip WIFI/3G/4G | 2 ¡Á 10/100/1000M£¨RJ45 LAN£© 1 x WIFI Module support 802.11b/g/n £¨M.2 PCIE half card£© |
I/O | USB 3.0 USB 2.0 PS/2 COM port audio | 4x USB3.0 4¡Á USB2.0 1 ¡Á PS/2 keyboard and mouse 2 ¡Á COM interface (including 6 groups of COM) 1 ¡Á LINE-OUT & MIC-IN, integrated with 6-channel high-fidelity sound effects. |
Onboard function |
COM port USB2.0 PLT FP PCIE
| 4*RS232+2*RS485 4*USB2.0 1*PLT printing port 1*FP 1*PCIE3.0 X16 (supports graphics cards such as GTX1050TI 4G/RTX3050 6G). |
Power | Input Rated Power | ATX 1*24Pin +1*8Pin 200W |
watchdog | output interval | Interrupt, system restart 255-level timing interval |
Physical Parameters | Dimension | 340mm (L) x 241mm (W) x 70mm (H) |
Environment | Temperature Humidity | Working temperature: 0¡ãC ~50¡ãC Storage temperature:-20 ~ 70 C. 5%~90% non-condensing |
Operating System | Version | Windows 10/Windows 7 / windows11 / Linux |
Ordering information
Sales model | specification |
AOS-SSH11J162S5IHBU | Intel I7 7700 3.6GHz 16G Memory 256G SSD GTX1050TI 4G |
AOS-SSH11D41S4HBU | Intel Pentium G4400 3.3GHz 4G Memory 128G SSD |
AOS-SSH11I41S4HBU | Intel Core i3-6100 3.7GHz 4G Memory 128G SSD Intel Core i3-7100 3.9GHz 4G Memory 128G SSD Intel Core i3-8100 3.6GHz 4G Memory 128G SSD Intel Core i3-9100 3.6GHz 4G Memory 128G SSD |
AOS-SSH11F41S4HBU | Intel Core i5-6500 3.2GHz 4G Memory 128G SSD Intel Core i5-7500 3.4GHz 4G Memory 128G SSD Intel Core i5-8500 3.0GHz 4G Memory 128G SSD Intel Core i5-9500 3.0GHz 4G Memory 128G SSD |
AOS-SSH11J41S4HBU | Intel Core i7-6700 3.4GHz 4G Memory 128G SSD Intel Core i7-7700 3.6GHz 4G Memory 128G SSD Intel Core i7-8700 3.2GHz 4G Memory 128G SSD |
dimensional drawing
Areas of application
Applicable to education, restaurants, hotels, shopping malls, companymeetings, government affairs disclosure and other areas.
