AOS-SEAUI41S2L6CG2
Product introduction：
Specification Parameters
processor | CPU | I3-1220P/ I3-1215U/ I5-1240P/ I7-1260P/ I3-1315U/ I5-1340P/ I7-1360P |
chip set | Intel® SOC | |
BIOS | AMI 32 Mbit, supporting diskless boot, network wake-up, power-on startup, watchdog functionality, and more. | |
internal storage | capacity | 1× SODIMM 4G, supports DDR4 at 2400 MHz with a maximum capacity of 16 GB |
memory | MSATA Interface SATA | 1×MSATA 128G SSD 1×SATA HDD |
show | Integrated Display output
| CPU-integrated graphics card: Graphics for 12th Gen/Iris Xe 1 HDMI + DP port for single, dual, or triple displays (同步/asynchronous/splitted display modes) 1 × HDMI 2.0 (Maximum supported resolution: 4096×2304 at 60 Hz) 1X DP1.4 (Supports resolutions: 4096×2304,5120×2880,7680×4320 at 60 Hz); available in 4K,5K, and 8K formats LVDS/EDP |
network | Chip WIFI | Two Intel i211 1000M network card chips, forming a PCI-E bus-based gigabit network interface. 1 × MINI PCI-E interface, supports Wi-Fi or 3G |
I/O |
USB2.0 USB3.0 RJ45 Power button COM LED lamp Reset One-click restoration audio frequency |
4X USB2.0 6X USB2.0 2×RJ45 2 × power button 6× RS232 COM 1 x Power indicator light & 1 x Hard drive indicator light 1 × Reset button 1 x One-Touch Restore 1 × LINE-OUT & MIC-IN |
source | import rated dissipation | Dc12V Power Supply 45-90W |
watchdog | output margin | Intermittent, system restart Level 255 Fixed Time Interval |
Physical Parameters | size | 235.8mm(L)×220mm(W)x52mm(H) |
environment | temperature humidity | Operating temperature: 0°C to 50°C Storage temperature: -40°C to 75°C 5% to 90% with no condensation |
operating system | edition | Windows XP / Windows 7 / Windows 8 / Linux |
Order Details
Sales Model | explain |
AOS-SEAUI41S2L6CG2 | Intel I3 1215U,1.2 GHz processor, 4 GB RAM, 128 GB SSD |
AOS-SEAUF41S2L6CG2 | Intel I5 1240P/12450H/1235U processor, 4 GB RAM, 128 GB SSD Intel I5 1340P/13450H/1335U processor, 4 GB RAM, 128 GB SSD |
AOS-SEAUJ41S2L6CG2 | Intel I7 1260P/12700H/1255U processor, 4 GB RAM, 128 GB SSD Intel I7 1360P/13620H/1355U processor, 4 GB RAM, 128 GB SSD |

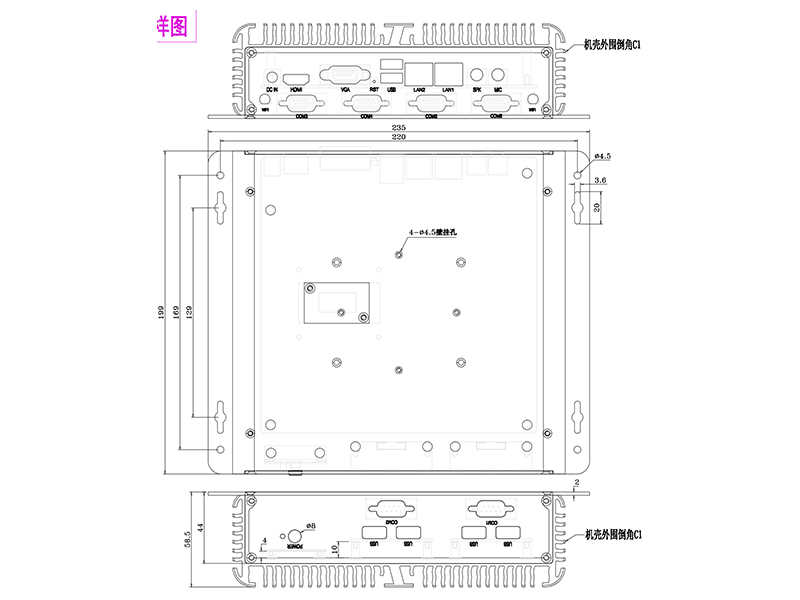

dimensional drawing
application area
Suitable for applications in visual inspection, industrial automation, self-service terminals, and industrial robotics equipment.
