chip set

Intel® SOC

BIOS

AMI 32 Mbit, supporting diskless boot, network wake-up, power-on startup, watchdog functionality, and more.

internal storage

capacity

1¡Á SODIMM 4G, supports DDR4 at 2400 MHz with a maximum capacity of 16 GB

memory

MSATA Interface

SATA

1¡ÁMSATA 128G SSD

1¡ÁSATA  HDD

show

Integrated Display

output

CPU-integrated graphics card: Graphics for 12th Gen/Iris Xe

1 HDMI + VGA single display; dual displays (ͬ²½/asynchronous/splitted display)

1 ¡Á HDMI 2.0 (Maximum supported resolution: 4096¡Á2304 at 60 Hz)

network

Chip

WIFI

Two Intel i211 1000M network card chips, forming a PCI-E bus-based gigabit network interface.

1 ¡Á MINI PCI-E interface, supports Wi-Fi or 3G

I/O

USB2.0

USB3.0

RJ45

Power button

COM

LED lamp

Reset

One-click restoration

audio frequency

2X USB2.0

4X USB2.0

2¡ÁRJ45

2 ¡Á power button

6 COM RS-232 ports (with optional 2 RS485 ports)

            1 x Power indicator light & 1 x Hard drive indicator light

           1 ¡Á Reset button

1 x One-Touch Restore

1 ¡Á LINE-OUT &  MIC-IN

source

import

rated dissipation

Dc12V Power Supply

45-90W

watchdog

output

margin

Intermittent, system restart

Level 255 Fixed Time Interval

Physical Parameters

size

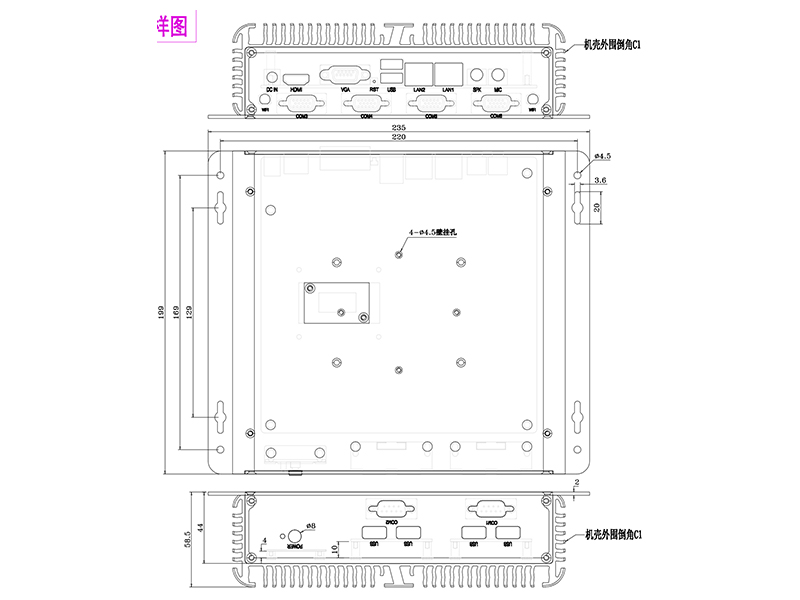

235mm(L)¡Á199mm(W)x58.5mm(H)

environment

temperature

humidity

Operating temperature: 0¡ãC to 50¡ãC   Storage temperature: -40¡ãC to 75¡ãC

5% to 90% with no condensation

operating system

edition

Windows XP / Windows 7 / Windows 8 / Linux

ATOM series

J1800/J1900/J2900 CPU

N4000/N4020/N4100/N4120/N5000 /N5030/J4025/J4125/J5005/J5040

J6413/J6412/J6426/N5095

N95/N97/N100/N105/N200/I3 N300/I3 N305

Core Union Series

Intel Core U series of onboard CPUs: I3 3217U, I5 3317U, I7-3537U, I3-4030U, I3-5005U.

I5 4300U/I5 5300U/I7 4600U/I7 5600U/I3-6100U/ I5-6200U/ I5-6360U/ I7-6500U

I3-7100U /I5-7200U/ I5 7300U/I7-7500U/I3-8145U/ I5-8265U / I7-8565U/

I3-10110U/ I5-10210U / I7-10510U/I3-1110G4/ I5-1135G7/I7-1160G7

I3-1220P/ I3-1215U/ I5-1240P/ I7-1260P/ I3-1315U/ I5-1340P/ I7-1360P

Ultra series: Ultra3, Intel Ultra5 135H/135U, Ultra7 155H/155U, Ultra9 185H/185U
