AOS-SEAN1041S3DL4G
Product introduction：
Specification Parameters
processor | CPU | Intel Alder Lake Architecture N100 CPU Also supports optional N95/N97/N105/N200/I3/N300/N305 (8-core) models |
chip set | Intel® SOC | |
BIOS | AMI 32 Mbit, supporting diskless boot, network wake-up, power-on startup, watchdog functionality, and more. | |
internal storage | capacity | 4GB SO-DIMM 2xDDR4 2400 MHz memory , Max.64GB |
memory | SATA Interface M.2
| 2.5-inch HDD (optional) 1Xm.2 NGFF/NVME
|
show | Integrated Display output
| CPU-integrated graphics card: Graphics for 12th Gen/Iris Xe 4 HDMI + DP ports for single, dual, or triple displays (同步/asynchronous/splitted display modes) 1 × HDMI 2.0 (Maximum supported resolution: 4096×2304 at 60 Hz) 1X DP1.4 (Supports resolutions: 4096×2304,5120×2880,7680×4320 at 60 Hz); available in 4K,5K, and 8K formats LVDS/EDP |
network | Chip WIFI | 4 × 10/100/1000 M (optional: 4 RJ45 connectors) 1 x WIFI Module support 802.11b/g/n （M.2 PCIE half card） |
I/O |
USB2.0 Mini-DP RJ45 Power button COM LED lamp Reset One-click restoration G audio frequency |
4x USB 2.0 (up to 8 groups optional) 1x Mini-DP 4×RJ45 ports (2×1000Mbps Ethernet ports + 2×2.5G Ethernet ports) 2 × power button 6× RS232 COM 1 x Power indicator light & 1 x Hard drive indicator light 1 × Reset button 1 x One-Touch Restore 1 × GJACK 1 × LINE-OUT & MIC-IN |
source | import rated dissipation | 12–19 V (with optional wide-range input of 9–36 V) 45-90W |
watchdog | output margin | Intermittent, system restart Level 255 Fixed Time Interval |
Physical Parameters | size | 240mm (L) x 141mm (W)x63.5mm(H) |
environment | temperature humidity | Operating temperature: 0°C to 50°C Storage temperature: -20°C to 70°C 5% to 90% with no condensation |
operating system | edition | Windows 10/Windows 11 / Linux |
Order Details
Sales Model | explain |
AOS-SEN10413DL4G | CPU: N100; RAM: 4 GB; SSD: 128 GB |
AOS-SEN15041S3DL4G | CPU: N150; 4 GB RAM; 128 GB SSD |
AOS-SEN9741S3DL4G | CPU: N97; RAM: 4 GB; SSD: 128 GB |
AOS-SEN9541S3DL4G | CPU: N95; RAM: 4 GB; SSD: 128 GB |
AOS-SEN10541S3DL4G | CPU: N105; 4 GB RAM; 128 GB SSD |
AOS-SEN20041S3DL4G | CPU: N200; RAM: 4 GB; SSD: 128 GB |
AOS-SEN30041S3DL4G | CPU: N300; RAM: 4 GB; SSD: 128 GB |
AOS-SEN30541S3DL4G | CPU: N305; 4 GB RAM; 128 GB SSD |

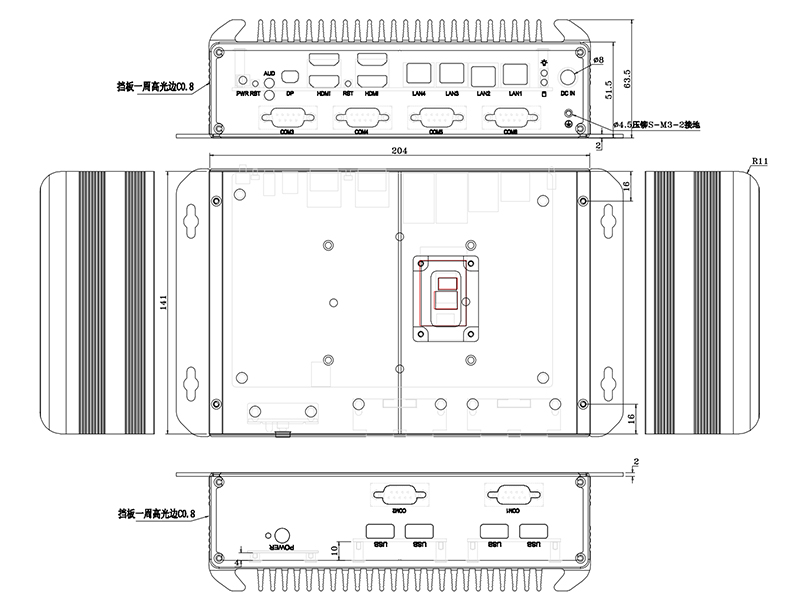

dimensional drawing
application area
Suitable for education, restaurants, hotels, shopping malls, corporate meetings, government transparency initiatives, and other fields.
