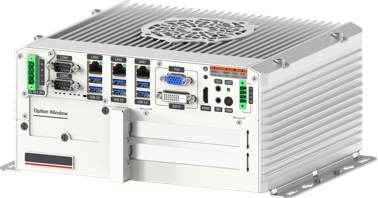

AOS-SEQ67J82S09J
Product introduction：
Product introduction
Intel® 6~14th i3-6100/i5-7400T/i7-8700/ i7-9700/i9-9900T/
i3-10100/ i5-11400/i7-12700/i9-12900/ i9-13900/ I5-14400, etc. optional
Intel® H110/Q170/H410/Q470/H610/Q670 chipset
Support 2 x DDR4 2133/2400/2666MHz memory slots, up to 64GB
Provide 1 x VGA, 1 x DVI-D, 1 x HDMI display interface
Default 6 x USB 3.0, more USB interfaces can be expanded
Default 2 x COM, RS232/422/485 adjustable, high-speed optocoupler isolation
Rich interface expansion capabilities
16-way/32-way GPIO optional
EMC/certification CE/FCC/CCC

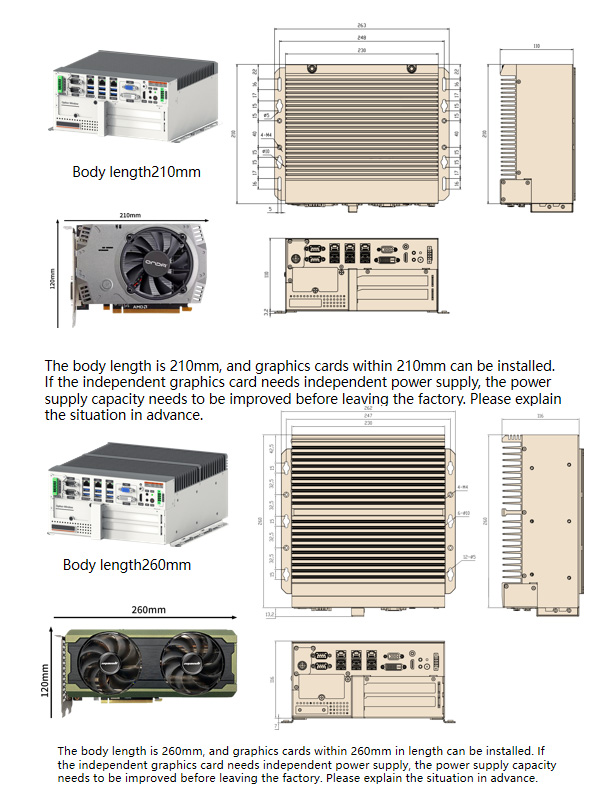

DIMENSIONALDRAWING
OPTIONAL CPUS
MODEL | Number of | requency | Turbo | Basic power consumption |
I5-14400 | 10核 | 2.5G | 4.7G | 65W |
I9-13900 | 24核 | 2.0G | 5.6G | 65W |
I7-13700 | 16核 | 2.1G | 5.2G | 65W |
I5-13400 | 10核 | 2.5G | 4.6G | 65W |
I3-13100 | 4核 | 3.4G | 4.5G | 60W |
I9-12900 | 16核 | 2.4G | 5.1G | 65W |
I7-12700 | 12核 | 2.1G | 4.9G | 65W |
I5-12400 | 6核 | 2.5G | 4.4G | 65W |
I3-12100 | 8核 | 3.3G | 4.3G | 60W |
I7-11700 | 8核 | 2.5G | 4.9G | 65W |
I5-11400 | 6核 | 2.4G | 4.4G | 45W |
I3-11100 | 4核 | 3.1G | 4.6G | 65W |
I7-10700 | 8核 | 2.9G | 4.8G | 65W |
I5-10400 | 6核 | 2.9G | 4.3G | 65W |
I3-10100 | 4核 | 3.6G | 4.3G | 65W |
I9-9900T | 8核 | 2.1G | 4.4G | 35W |
I7-9700 | 8核 | 3.0G | 4.7G | 65W |
I5-9400 | 6核 | 2.9G | 4.1G | 65W |
I3-9100 | 4核 | 3.7G | 4.2G | 65W |
I7-8700 | 6核 | 3.2G | 3.3G | 35W |
I5-8400 | 6核 | 2.8G | 4.0G | 65W |
I3-8100 | 4核 | 3.6G | 4.0G | 65W |
I7-7700 | 4核 | 3.6G | 4.2G | 65W |
I5-7400T | 4核 | 2.4G | 3.0G | 35W |
i5-7400 | 4核 | 3.0G | 3.5G | 65W |
I3 7100 | 2核 | 3.9G | 4.1G | 51W |
I7-6700 | 4核 | 3.4G | 4.0G | 65W |
I5-6400 | 4核 | 2.7G | 3.3G | 65W |
I3-6100 | 2核 | 3.7G | 3.0G | 51W |
Optional graphics card series list
GTX1030/ GTX1050/ RX550/ GTX1050TI/ GTX1650/ GTX1060/ GTX1070/ GTX1080/ RTX3050/ RTX3050/ RTX3060/ RTX3070/ RTX3080/ RTX4060/ A1000/ A2000/ T1000/ P1000/ P2000/ P3000 |

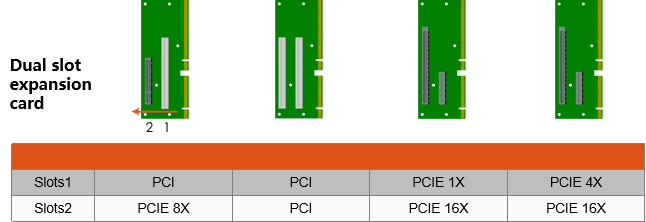

SLOTEXPANSION CARD
INTERFACE & Slot
EXPANSION CARD
The body length is 210mm, and graphics cards within 210mm can be installed. If the independent graphics card needs independent power supply, the power supply capacity needs to be improved before leaving the factory. Please explain the situation in advance.
temperature controlled cooling fan
PACKINGLIST
Serial number | name | quantity |
1 | Host | 1set |
2 | Power adapter (if selected) | 1set |
3 | Three-hole 1.5M national standard power cord (if you choose） | 1set |
4 | 1.5m yellow-green ground wire, M4 on the industrial computer side, M6 on the user cabinet side | 1set |
5 | 4pin 5.08 Power terminal plug (if selected) | 1set |
6 | 4pin 3.81 Signal terminal plug | 1set |
7 | M4*6 Round head set screw | 4set |
8 | Certificate | 1set |
ORDERING
INFORMATION
Serial number | name | illustrate |
1 | AOS-SEQ67J82S09J | Barebones |
2 | External temperature contro l auxiliary cooling fan kit | For high temperature and closed environment, strengthen heat dissipation and improve system operation comfort |
3 | Power adapter | Multiple power options |

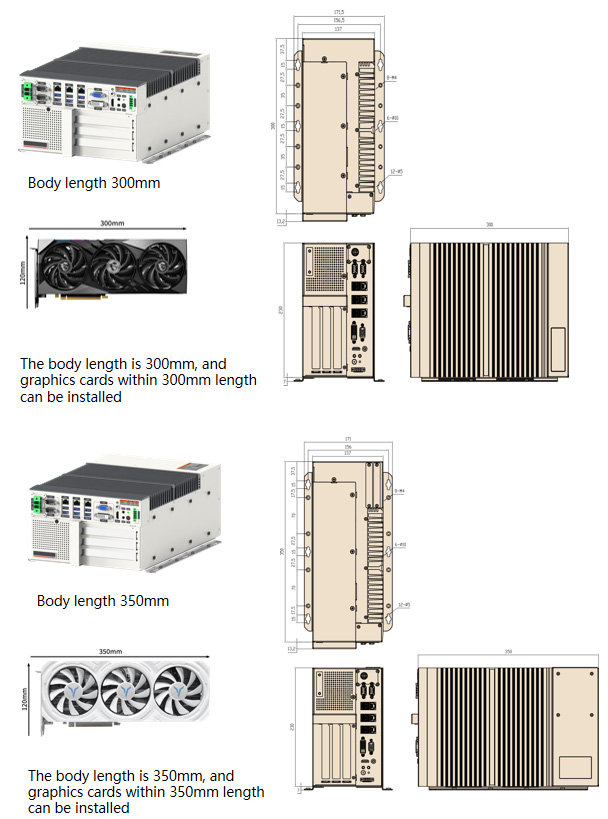

Different size options
