AOS-SEH61F42S01J
Product introduction：

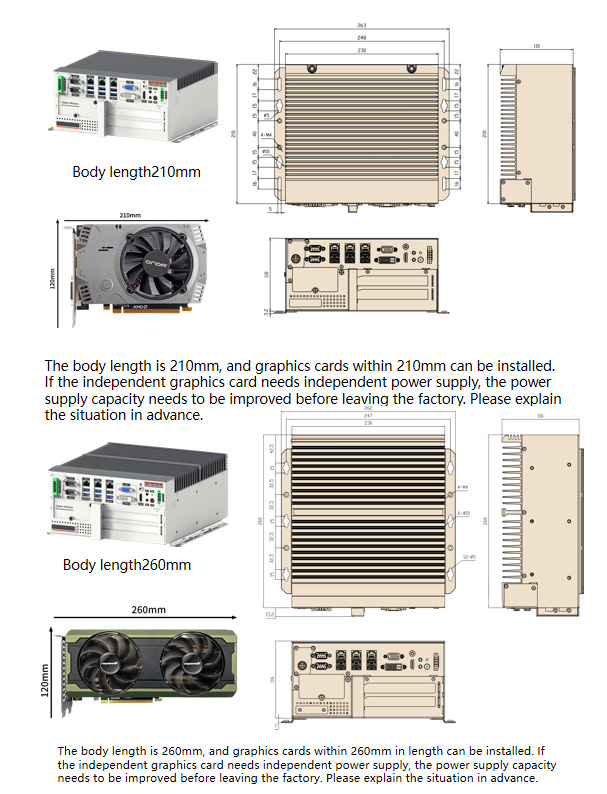

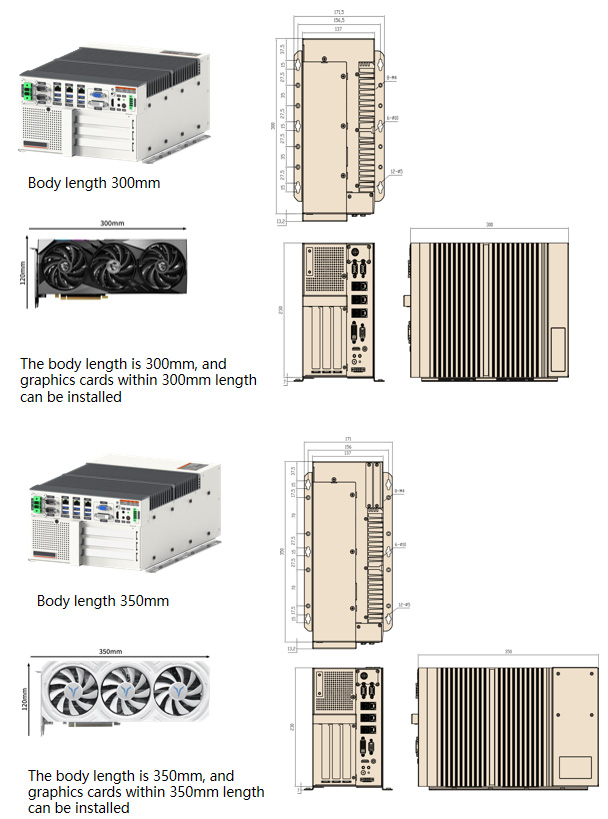

DIMENSIONAL
DRAWING
PRODUCT
SPECIFICATIONS
MODEL | AOS-SEH61F42S01J |
CPU | Intel® 6~14th i3-6100/i5-7400T/i7-8700/ i7-9700/i9-9900T/ i3-10100/ i5-11400/i7-12700/ i9-12900/ i9-13900/ I5-14400，etc. optional |
Chipset | Intel® H110/Q170/H410/Q470/H610/Q670Chipset |
BIOS | 64MbSPIFLASH |
Memory | Supports 2 x DDR4 2133/2400/2666MHz memory slots, up to 64GB |
show | Provides 1 x VGA, 1 x DVI-D, 1 x HDMI display interface |
network | 1 x Intel® i211，1 x Intel® i219，1 x Realtek 8125BG 2.5G Network Card |
storage | 1 x mSATA，1 x m.2 M-Key SATA/NVMeX4 2280（Q170） Optional 2.5-inch or 3.5-inch hard disk slots, Q170 supports dual hard disk RAID0 acceleration/RAID1 mirroring |
USB | Default 6 x USB 3.0, more USB ports can be expanded |
COM | Default 2 x COM, RS232/422/485 adjustable, high-speed optocoupler isolation, more COM ports can be expanded |
Expansion interface Optional | Rich interface expansion capabilities, including COM, USB, SMBUS, PS/2, LPT, 16/32-channel GPIO, multi-port vision card, light source controller |
Expansion slot Optional | Rich slot expansion capabilities, 1 x full-length miniPCIE slot, expandable wifi module, 4G module, MVB module and other general/special modules; 1 x m.2 B-Key 3042/3052 slot, expandable 4G, 5G modules, etc.; PCIE16X, 4X (Q170), 1X, PCI slots can be flexibly combined, dozens of expansion slots are optional |
Audio | Realtek sound card, supports Line-out, Mic-in |
GPIO Optional | 16/32 GPIO optional Optional motherboard direct output standard GPIO Optional optocoupler isolation rugged GPIO, supports dry contact, wet contact, bidirectional optocoupler isolation, withstand voltage up to 80V. Optional NPN, PNP mode. DI is to filter out interference, no action below 5V. DO is amplified by OD gate, the output current can reach 300-500mA |
Watchdog | Watchdog Reset function, supports 1~255 seconds system restart |
Power interface | Lockable DC 9~36V power supply interface, with two types of power terminals: circular and wired |
operating system | Supports Win7/8/10/11/Linux |
Fanless design | Enclosed fanless body heat dissipation eliminates the potential malfunction caused by traditional built-in cooling fans and their dust |
Temperature control auxiliary cooling fan | An optional external temperature-controlled auxiliary fan can be installed. When the temperature is not high, the fan runs at idle speed. When the temperature rises, the fan speed increases until it runs at full speed. It is easy to disassemble and maintain. For high-temperature and closed environments, an external temperaturecontrolled auxiliary cooling fan can be installed to assist in cooling, enhance cooling, improve system operation comfort, and enhance system stability. |
Placement | Horizontal placement and fixing method, multi-slot model supports vertical placement and fixing method |
size | 263mm(L)×185mm(W)x57mm(H) |
Work Environment | Operating temperature: -10℃ ~ 60℃, storage temperature: -20℃ ~ 85℃ Operating humidity: 5% ~ 95% (operating, no condensation) Vibration With SSD: 5Grms/5~500Hz/random; With HDD: 1Grms/5~500Hz/random Shock With SSD: 50G/half-sine/lasting 11ms; With HDD: 20G/half-sine/lasting 11ms |
EMC/Certification | CE/FCC/CCC |
Product size | 260mm (L) x 230mm (W) x 183mm (H) |
Available in different sizes | 285mm(L)x210mm(W)x112mm(H)，260mm(L)x230mm(W)x183mm(H) 350mm(L)x230mm(W)x183mm(H)，260mm(L)x262mm(W)x104mm(H) 263mm(L)x210mm(W)x96mm(H)，443mm(L)x210mm(W)x76.2mm(H) 263mm(L)x210mm(W)x57mm(H)，345mm(L)x210mm(W)x88mm(H) |
LIST OF
OPTIONAL CPUS
cores | Number of cores | Frequency | Turb | Basic power consumption |
I5-14400 | 10 cores | 2.5G | 4.7G | 65W |
I9-13900 | 24 cores | 2.0G | 5.6G | 65W |
I7-13700 | 16 cores | 2.1G | 5.2G | 65W |
I5-13400 | 10 cores | 2.5G | 4.6G | 65W |
I3-13100 | 4 cores | 3.4G | 4.5G | 60W |
I9-12900 | 16 cores | 2.4G | 5.1G | 65W |
I7-12700 | 12 cores | 2.1G | 4.9G | 65W |
I5-12400 | 6 cores | 2.5G | 4.4G | 65W |
I3-12100 | 8 cores | 3.3G | 4.3G | 60W |
I7-11700 | 8 cores | 2.5G | 4.9G | 65W |
I5-11400 | 6 cores | 2.4G | 4.4G | 45W |
I3-11100 | 4 cores | 3.1G | 4.6G | 65W |
I7-10700 | 8 cores | 2.9G | 4.8G | 65W |
I5-10400 | 6 cores | 2.9G | 4.3G | 65W |
I3-10100 | 4 cores | 3.6G | 4.3G | 65W |
I9-9900T | 8 cores | 2.1G | 4.4G | 35W |
I7-9700 | 8 cores | 3.0G | 4.7G | 65W |
I5-9400 | 6 cores | 2.9G | 4.1G | 65W |
I3-9100 | 4 cores | 3.7G | 4.2G | 65W |
I7-8700 | 6 cores | 3.2G | 3.3G | 35W |
I5-8400 | 6 cores | 2.8G | 4.0G | 65W |
I3-8100 | 4 cores | 3.6G | 4.0G | 65W |
I7-7700 | 4 cores | 3.6G | 4.2G | 65W |
I5-7400T | 4 cores | 2.4G | 3.0G | 35W |
i5-7400 | 4 cores | 3.0G | 3.5G | 65W |
I3 7100 | 2 cores | 3.9G | 4.1G | 51W |
I7-6700 | 4 cores | 3.4G | 4.0G | 65W |
I5-6400 | 4 cores | 2.7G | 3.3G | 65W |
I3-6100 | 2 cores | 3.7G | 3.0G | 51W |
Optional graphics card series list
GTX1030/ GTX1050/ RX550/ GTX1050TI/ GTX1650/ GTX1060/ GTX1070/ GTX1080/ RTX3050/ RTX3050/ RTX3060/ RTX3070/ RTX3080/ RTX4060/ A1000/ A2000/ T1000/ P1000/ P2000/ P3000 |

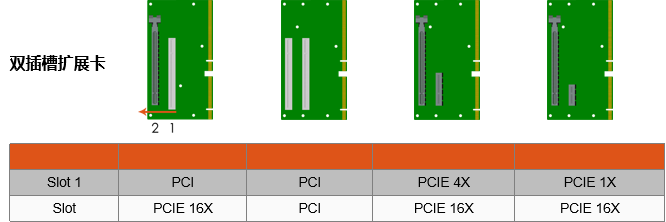

SLOT
EXPANSION CARD
INTERFACE & Slot
EXPANSION CARD

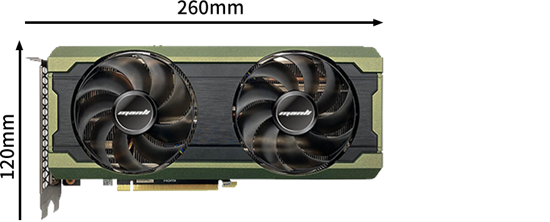

The body length is 260mm, and graphics cards within 260mm in length can be installed. If the independent graphics card needs independent power supply, the power supply capacity needs to be improved before leaving the factory. Please explain the situation in advance.
OPTIONAL POWER
TERMINAL
PACKING
LIST
Serial number | name | quantity |
1 | Host | 1 unit |
2 | Power adapter (if selected) | 1 unit |
3 | Three-hole 1.5M national standard power cord (if selected) | 1 unit |
4 | 1.5m yellow-green ground wire, M4 on the industrial computer side, M6 on the user cabinet side | 1 unit |
5 | Wiring type power terminal plug (select 1 from 4) | 1 unit |
6 | 4pin 3.81 signal terminal plug | 1 unit |
7 | M4*6 round head fixing screw | 4 unit |
8 | Certificate | 1 unit |
ORDERING
INFORMATION
Serial number | name | illustrate |
1 | AOS-SEH61F42S01J | Barebones |
2 | External temperature control auxiliary cooling fan kit | For high temperature and closed environment, strengthen heat dissipation and improve system operation comfort |
3 | Power adapter | Multiple power options |
