AOS-SEAUF81SD03J
Product introduction：
Product introduction
Intel® Core™U series i7/i5/i3/3~13th generation Pentium®/Celeron® ultra-low voltage and low power consumption processors
2 x SO-DIMM DDR4 2666/2933/3200MHz, maximum capacity 64GB
Provide 1 x DVI-D, 1 x HDMI display interface
Default 2 x USB3.2 Gen1, 2 x USB2.0, 1 x USB2.0 TYPE-A built-in
Optional 8-way GPIO, 4DI/4DO, NPN type
IO panel reserves 3.5mm 2 x 2pin locking terminal
DC 24V DC power supply
DIMENSIONAL
DRAWING
PRODUCT
SPECIFICATIONS
model | AOS-SEAUF81SD03J |
CPU | Intel® Core™ i7/i5/i3/Pentium®/Celeron® Ultra-low voltage and low power processor |
Chipset | Intel® SoC |
BIOS | AMI BIOS |
Memory | 2 x SO-DIMM DDR4 2666/2933/3200MHz，Maximum capacity 64GB |
show | Provides 1 x DVI-D, 1 x HDMI display interface |
network | 2 x Intel® i210，1 x Intel® i226Network Card |
storage | 1 x mSATA，1 x m.2 M-Key SATA 2242/2280 SSD Optional 256K, 512K, 1M capacity non-volatile ferroelectric memory Optional 2.5-inch or 3.5-inch hard disk |
USB | Default 2 x USB3.2 Gen1, 2 x USB2.0, 1 x USB2.0 TYPE-A built-in |
COM | 1 x COMRS232，1 x COMRS485，Terminal block type |
Extension interface | 1 x miniPCIE Interface, supports Wifi, 4G modules, 1 x M.2 E-Key supports WiFi, 1 x M.2 B-Key supports 4G/5G modules |
GPIO | Optional 8-way GPIO, 4DI/4DO, NPN type |
Terminal Blocks | The IO panel has 3.5mm 2 x 2pin locking terminal blocks, which can be predefined before leaving the factory. The default settings are Remote SW and Power Led |
Watchdog | Watchdog Reset function, supports 1~255 seconds system restart |
other | 2 x Programmable indicator lights |
Power interface | DC 24V DC power supply, 3PIN 5.08 wiring power terminal |
Fanless design | Enclosed fanless body heat dissipation eliminates the potential malfunction caused by traditional built-in cooling fans and their dust |
Temperature control auxiliary cooling fan | An optional external temperature-controlled auxiliary fan can be installed. When the temperature is not high, the fan runs at idle speed. When the temperature rises, the fan speed increases until it runs at full speed. It is easy to disassemble and maintain. For high-temperature and closed environments, an external temperature-controlled auxiliary cooling fan can be installed to assist in cooling, enhance cooling, improve system operation comfort, and enhance system stability. |
operating system | Windows 7/10/11/Various versions of Linux |
Work Environment | Operating temperature: -20°C ~60°C Storage temperature: -40°C ~85°C Operating humidity: 5% ~95% (operating, no condensation) Vibration with SSD: 5Grms/5~500Hz/random; Shock with SSD: 50G/half-sine/lasting 11ms; |
EMC/Certification | CE/FCC |
size | 200mm(L)×140mm(W)x62mm(H) |

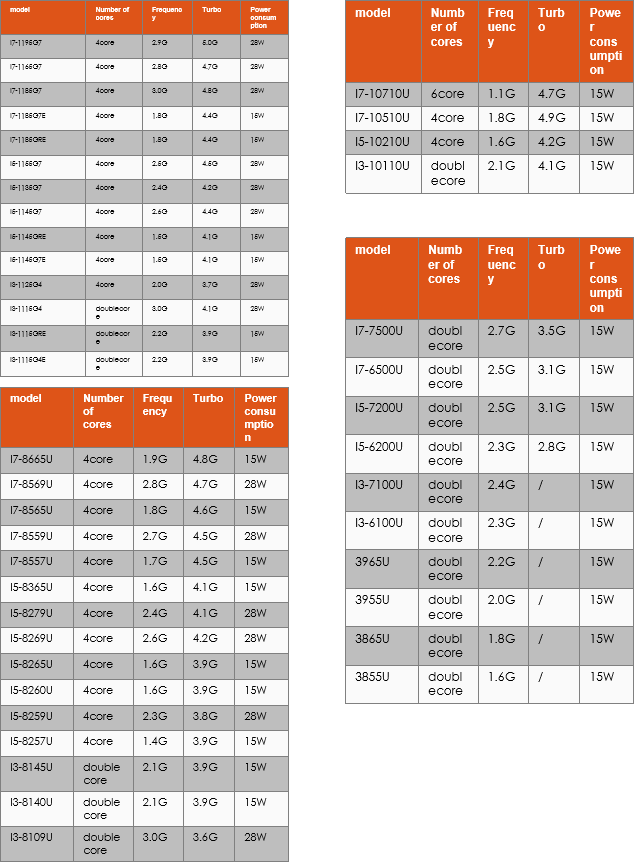

LIST OF
OPTIONAL CPUS
TERMINAL
DEFINITION
Serial number | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
definition | PE | X3 | X2 | CAN1 GND | CAN1 L | CAN1 H | X1 | 485 GND | 485- | 485+ |
Serial number | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
definition | PE | X3 | X2 | CAN2 GND | CAN2 L | CAN2 H | X1 | 232 GND | 232T | 232R |
PACKING
LIST
Serial number | name | quantity |
1 | Host | 1set |
2 | Mounting ears (if selected) | 1set |
3 | Power adapter (if selected) | 1set |
4 | 2x10pin 3.5mm Signal terminal plug | 1set |
5 | Three-hole 1.5M national standard power cord (if selected) | 1set |
6 | 1.5m yellow-green ground wire M3 on the industrial computer side, M6 on the user cabinet side | 1set |
7 | Certificate | 1set |
ORDERING
INFORMATION
Serial number | name | illustrate |
1 | ||
2 | Power adapter | The default is 24V3A, with various power options |
3 | Horizontal mounting ears, with 4 M4*6 round head screws | 1pair |
4 | Single-side mounting bracket | 1set |
5 | DIN Guide rail mounting ears | 1set |
