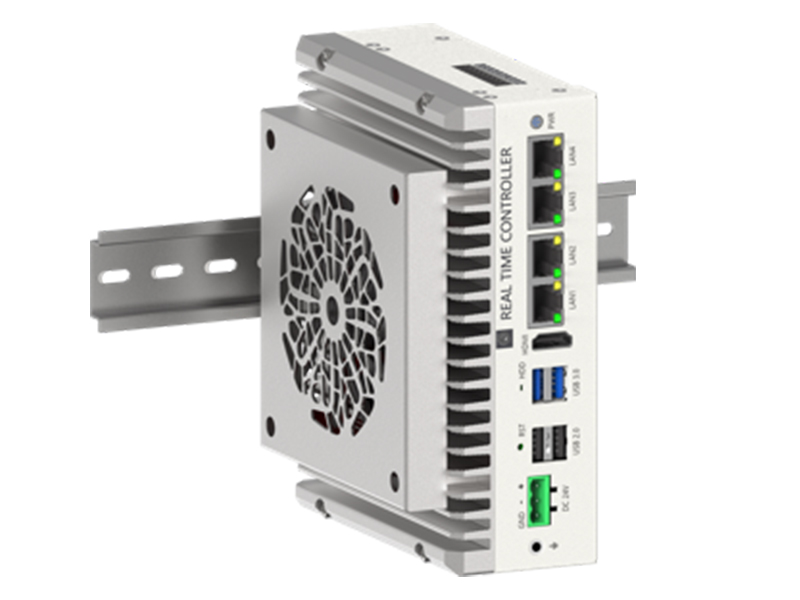

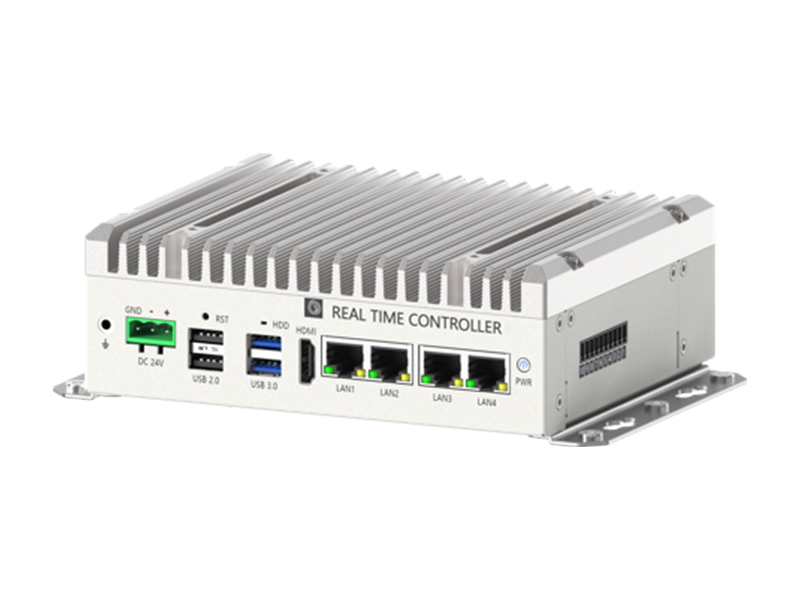

AOS-SEAUF81S4L01J
Product introduction：
Product introduction
Intel® Core™U 3rd~13th generation i7/i5/i3/Pentium®/Celeron® ultra-low voltage and low power consumption processor
1 x SO-DIMM DDR4 2666/2933/3200MHz, maximum capacity 32GB
4 x Intel i210AT Gigabit LAN, supports network wake-up and PXE diskless boot function
2 x USB3.2, 2 x USB2.0
EMC/certification CE/FCC

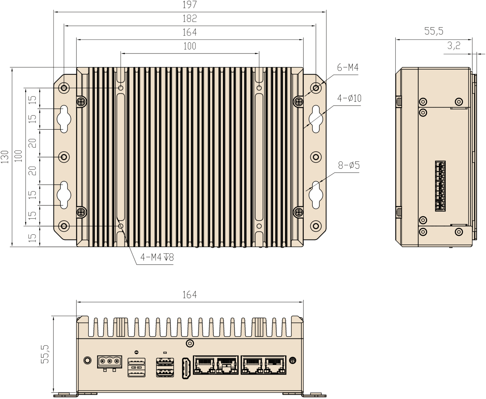

dimension diagram
PRODUCT
SPECIFICATIONS
MODEL | AOS-SEAUF81S4L01J |
CPU | Intel® Core™ i7/i5/i3/Pentium®/Celeron® Ultra-low voltage and low power processor |
Chipset | Intel® SoC |
BIOS | AMI BIOS |
Memory | 1 x SO-DIMM DDR4 2666/2933/3200MHz，Maximum capacity 32GB |
show | Provides HDMI display interface, Intel® HD Graphics display core |
network | 4 x Intel i210AT Gigabit network card, supports network wake-up and PXE diskless boot functions, supports real-time requirements of motion control |
storage | 1 x m.2 2280 SATA/NVMeX2 SSD SSD slot, optional 1 x 2.5-inch hard drive slot |
USB | 2 x USB3.2，2 x USB2.0 |
COM | 2 x COM，COM1 Support RS232/485 mode, COM2 supports RS485 mode |
CAN | Optional 2 x CAN |
Expansion slots | 1 x m.2 2230 E-Key，Support WIFI module, 1 x m.2 3052 B-Key, support 4G/5G module, etc., with SIM card holder, optional 1 x PCIEx1 slot |
Audio | none |
GPIO | Optional 16-channel GPIO |
Watchdog | Watchdog Function, supports 1~255 seconds system restart |
Terminal Blocks | 10-pin locking terminal block is reserved on the top of the machine |
Power interface | DC 24V Power supply, wiring type locking power terminal |
Fanless cooling | The machine body is closed and relies on the aluminum profile for heat dissipation, eliminating the hidden dangers of malfunction caused by traditional built-in cooling fans and dust entering the machine. |
Temperature control auxiliary cooling fan | An optional external temperature-controlled auxiliary fan can be installed. When the temperature is not high, the fan runs at idle speed. When the temperature rises, the fan speed increases until it runs at full speed. It is easy to disassemble and maintain. For high-temperature and closed environments, an external temperature-controlled auxiliary cooling fan can be installed to assist in cooling, enhance cooling, improve system operation comfort, and enhance system stability. |
operating system | Windows 10/11/ Various versions of Linux |
Work Environment | Working temperature: -20°C ~60°C Environmental humidity: 0% ~95% Vibration with SSD: 5Grms/5~500Hz/random; Shock with SSD: 50G/half-sine/lasting 11ms; |
EMC/Certification | CE/FCC |
size | 197mm(L)×130mm(W)x55.5mm(H) |

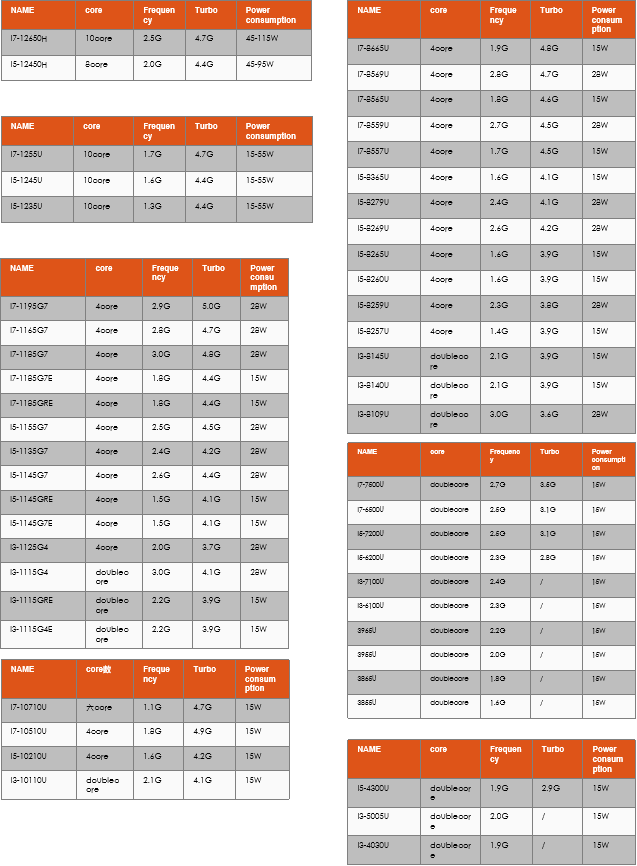

LIST OF
OPTIONAL CPUS
OPTIONAL POWER
TERMINAL

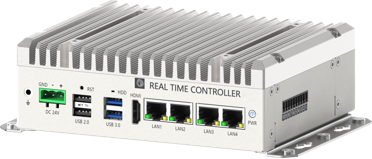

Optional horizontal
bracket
TERMINAL
DEFINITION
Serial number | name | illustrate |
1 | RX1/485+1 | 232/485 mode can be set |
2 | TX1/485-1 | |
3 | GND | |
4 | 485+2 | 485model |
5 | 485-2 | |
6 | GND | |
7 | UPS+ | DI input, detect UPS level |
8 | UPS- | |
9 | GND | Remote switch |
10 | SW+ |

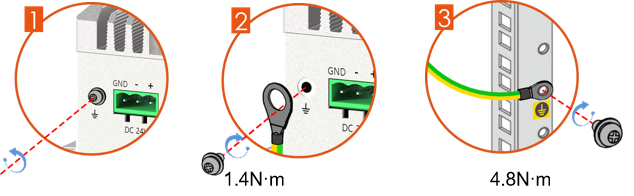

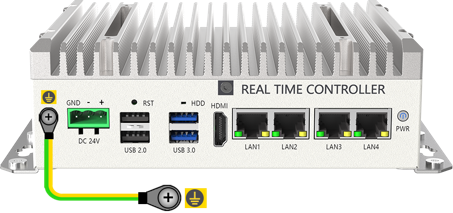

GROUNDING DIAGRAM
After the grounding cable is connected, perform the following checks:
The grounding cable is firmly and reliably connected to the grounding terminal
Use the ohmmeter of a multimeter to measure the resistance between the two ends of the grounding wire.
The grounding resistance is required to be less than 5Ω。
PACKING
LIST
Serial number | name | quantity |
1 | Host | 1set |
2 | Mounting ears (choose 1 from 2) | 1set |
3 | Power adapter (if selected) | 1set |
4 | Three-hole 1.5M national standard power cord (if selected) | 1set |
5 | 1.5m yellow-green ground wire M3 on the industrial computer side, M6 on the user cabinet side | 1set |
6 | Shipping inspection report | 1set |
7 | Packing List | 1set |
8 | Certificate | 1set |
ORDERING
INFORMATION
Serial number | name | illustrate |
1 | AOS-SEAUF81S4L01J | |
2 | Power adapter | Default 12V5A, multiple power options |
3 | Wall mounting bracket, with 4 M4*6 round head screws | 1pair |
4 | DIN rail mounting ears | 1set |
