AOS-SEH51I41S2L6B
Product introduction：
Specification
Processor
| CPU | Intel Core Core i3-10100 (3.6GHz/4 CORE/8 Threads/6MB/HD630/14nm/65W/LGA1200) I3/I5/I7/Extreme CPUs |
Chipset | Intel® H510/B560 | |
BIOS | AMI 32Mbit, support diskless boot, wake on network, power on, watchdog, etc. | |
Memory | Capacity | 4GB SO-DIMM DDR4 2400MHz memory , Max.64GB |
Storage | M.2 interface SATA interface MINI PCIE
Integrated Graphics Output
| 128G SSD NGFF/NVME(PCIEx4 can be expanded with 4 RJ45 ports) 2*SATA HDD optional 1X M.2 Mini PCIE
VGA+HDMI+DP single display, dual display, triple display (same/asynchronous display) 1 × VGA (maximum supported resolution: 1920x1080) 1 × HDMI (maximum supported resolution: 3840x2160) can be expanded double HDMI 1 × DP (maximum supported resolution: 3840x2160)
|
display | MXM Discrete Graphics Output
Discrete Graphics Card Optional Models and Display Output Channels | HDMI + HDMI + DP single display, dual display, triple display (same / asynchronous display) 1 × HDMI (maximum supported resolution: 3840x2160) 1 × HDMI (maximum supported resolution: 3840x2160) 1 × DP (Maximum supported resolution: 3840x2160)
GTX730 2GB( HDMI/HDMI) GTX1030 2GB(HDMI/DP) GTX1050 2GB(HDMI/HDMI/DP) RX550 4GB(HDMI/HDMI/HDMI) GTX1050TI 4GB(HDMI/HDMI/DP) GTX1650 4GB(HDMI/HDMI/DP) GTX1660S 6GB(HDMI/HDMI/DP) |
Internet | Chip WIFI | 1 × RTL8111H+1 × INTLEL I219 10/100/1000M 1 x WIFI Module support 802.11b/g/n （M.2 half card） |
I/O | USB 3.0 USB2.0 COM GPIO Power button Reset LED DC JACK One Touch Restore AUDIO | 3 x USB3.0 (multiple USB3.0 expandable) 3x USB2.0 6x COM optional 1X 4 in 4 out GPIO 1 × power button 1 x Reset button 1 x power indicator light & 1 x hard disk indicator light 1 x DC JACK 1 x One-Key Restore 1 x LINE-OUT & MIC-IN with integrated 6-channel sound ALC662 sound card chip |
Power supply | Input power | DC 12~19V 90-200W |
watchdog | exportation interval | Interrupt, system restart 255 Levels Timing Interval |
Physical parameters | Dimensions | 246mm (L) x 205mm (W) x 106mm (H) |
Environment | Temperature Humidity | Operating Temperature: 0°C ~50°C Storage Temperature: -20~70°C 5%~90% non-condensing |
Operating system | Version | Windows 10/ Linux |
Ordering Info
Sales Model | Description |
AOS-SEH51C41S2L6B | Intel Celeron GXXXX X.XGHz(2-core) 4G RAM 128G SSD Intel Celeron G5930 X.XGHz(2-core) 4G RAM 128G SSD |
AOS-SEH51D41S2L6B | Intel Pentium GXXXX X.XGHz(2-core) 4G RAM 128G SSD Intel Pentium G6520 X.XGHz(2-core) 4G RAM 128G SSD |
AOS-SEH51I41S2L6B AOS-SEH51I41S2L6B | Intel Core i3-10100 3.6GHz(4-core) 4G RAM 128G SSD Intel Core i3-10100T 3.0GHz(4-core) 4G RAM 128G SSD |
AOS-SEH51F41S2L6B AOS-SEH51F41S2L6B | Intel Core i5-10400T 2.0GHz(6-core) 4G RAM 128G SSD Intel Core i5-10400 2.9GHz(6-core) 4G RAM 128G SSD Intel Core i5-11400T 1.3GHz(6-core) 4G RAM 128G SSD Intel Core i5-11400 2.6GHz(6-core) 4G RAM 128G SSD |
AOS-SEH51J41S2L6B AOS-SEH51J41S2L6B
| Intel Core i7-10700T 2.0GHz(8-core) 4G RAM 128G SSD Intel Core i7-10700 2.9GHz(8-core) 4G RAM 128G SSD Intel Core i7-11700T 1.4GHz(8-core) 4G RAM 128G SSD |
Solo Ordering Info
Sales Model | Description |
AOS-SEH51I41S2L67G AOS-SEH51I41S2L63G | Intel Core i3-10100T 3.0GHz 4G RAM 128G SSD GT730 2G single display Intel Core i3-10100 3.6GHz 4G RAM 128G SSD GTX1030 2G single display |
AOS-SEH31F41S2L65G AOS-SEH31F41S2L6R5G | Intel Core i5-10400T 2.0GHz 4G RAM 128G SSD GTX1050 2G single display Intel Core i5-11400T 1.3GHz 4G RAM 128G SSD AMD RX550 4G single display |
AOS-SEH51J41S2L6R5G AOS-SEH51J41S2L65IG AOS-SEH51J41S2L665G | Intel Core i7-10700T 2.0GHz 4G RAM 128G SSD AMD RX550 4G single display Intel Core i7-11700T 1.4GHz 4G RAM 128G SSD GTX1050TI 4G single display Intel Core i7-11700T 1.4GHz 4G RAM 128G SSD GTX1650 4G single display |

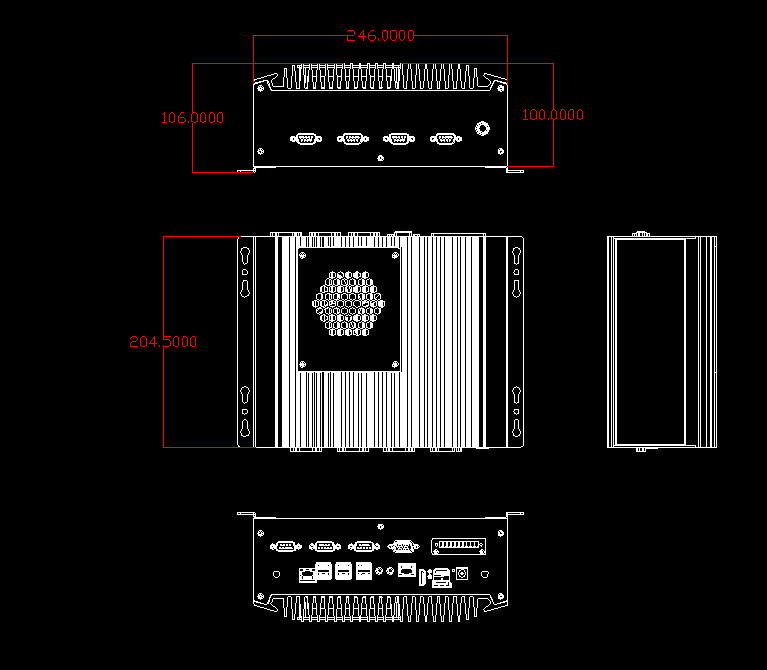

Drawing
Areas of application
Suitable for education, industrial control, security, robotics, industrial automation, visual inspection public and other areas.
