AOS-SEB36F81S3L6CY
Product introduction：
Specification
Processor
| CPU | Support Intel® /I5 9500 (3.0GHz/9MB/Ultra Core Graphics 630/14nm/65W) |
Chipset | Intel® B365 | |
BIOS | AMI 32Mbit, support diskless boot, wake on network, power on boot, watchdog and other functions | |
Memory | Capacity | 8GB DDR4 MAX 64G |
Storage | SATA interface MSATA interface M.2 interface | 1*SATA HDD 1*MSATAS 1*M.2 128G SSD(NVME/NGFF) |
display |
Integrated graphics output
| HDMI+HDMI Single display, dual display, triple display (same/asynchronous display) 2 × HDMI (maximum supported resolution: 3840x2160 30HZ) 1 × VGA (maximum supported resolution: 1920x1080 60HZ) |
Internet | Chip WIFI/3G/4G | 3 × INTEL I211AT 10/100/1000M（RJ45 LAN） 1 x WIFI Module support 802.11b/g/n （M.2 PCIE half card） 1 x MINI PCIE(3G/4G) |
Front Panel I/O | POWER AC LOSS USB 3.0 USB 2.0 Phoenix Terminal PS/2 COM Port LED SIM | 1*Power Switch, 1*Reset Switch 1*AC LOSS (power on/off toggle switch) 4x USB3.0 4x USB2.0 1*12pin,support four in four out GPIO 1 × PS/2 keyboard and mouse 1 × COMinterface (support RS232/RS485 switching, and with optical isolation) 1x power indicator, 1x hard disk indicator 1 x SIM card slot, 3G/4G module application |
Rear Panel I/O |
Display interface LAN COM port AUDIO POWER
| 1x VGA,2x HDMI1.4interface 3 × INTEL I211AT 10/100/1000M (support Wake-on-LAN, PXE) 5 × RS232 (COM3-COM5 support RS232/RS485 switching, and with optical isolation) 1 × LINE-OUT & MIC-IN &1x LINE IN 1*4PIN DC power supply, support 9-36V power input |
Power supply | Input Rated Power Consumption | DC 19-36V 60-90W |
watchdog | exportation interval | Interrupt, system restart 255 Levels Timing Interval |
Physical parameters | Dimensions | 282mm (L) x 192mm (W) x 80mm (H) |
Environment | Temperature Humidity | Operating Temperature: 0°C ~50°C Storage Temperature: -20~70°C 5%~90% Non-condensing |
Operating system | Version | Windows 10/Windows 7 / windows8 / Linux |

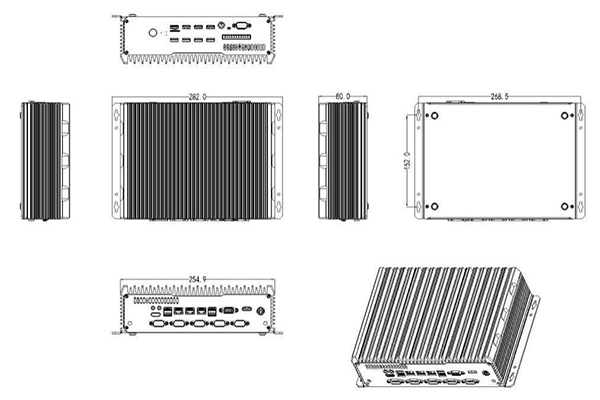

Dimension Drawing
Ordering Info
Sales Model | Description |
AOS-SEB36C453L6CY | Intel Celeron G4900 4G RAM 500G SSD |
AOS-SEB36D453L6CY | Intel Pentium G5400 4G RAM 500G SSD |
AOS-SEB366I41S3L6CY AOS-SEB367I41S3L6CY AOS-SEB368I41S3L6CY AOS-SEB369I41S3L6CY | Intel Core i3-6100T 4G RAM 128G SSD Intel Core i3-7100T 4G RAM 128G SSD Intel Core i3-8100T 4G RAM 128G SSD Intel Core i3-9100T 4G RAM 128G SSD |
AOS-SEB366F41S3L6CY AOS-SEB367F41S3L6CY AOS-SEB368F41S3L6CY AOS-SEB369F41S3L6CY | Intel Core i5-6400T 4G RAM 128G SSD Intel Core i5-7400T 4G RAM 128G SSD Intel Core i5-8400T 4G RAM 128G SSD Intel Core i5-9400T 4G RAM 128G SSD |
AOS-SEB366J41S3L6CY AOS-SEB367J41S3L6CY AOS-SEB368J41S3L6CY AOS-SEB369J41S3L6CY | Intel Core i7-6700T 4G RAM 128G SSD Intel Core i7-7700T 4G RAM 128G SSD Intel Core i7-8700T 4G RAM 128G SSD Intel Core i7-9700T 4G RAM 128G SSD |
Areas of application
Suitable for education, restaurants, hotels, shopping malls, company meetings, public affairs and other areas.
