Chipset

AMD

BIOS

AMI 32Mbit; supports diskless boot, Wake-on-LAN, power-on boot and watchdog

Memory

Capacity

LPDDR5 12G

Storage

M.2

M.2 2280 256G

Display

Output

HDMI2.1*2

Dual-display output

Network

Controller

RJ45 Gigabit LAN*1

I/O

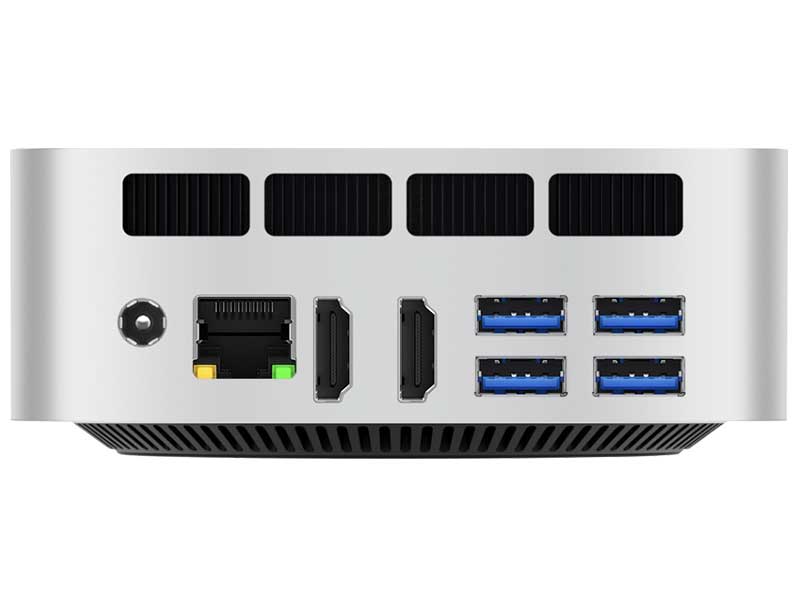

External I/O

Internal I/O

Type-C USB4.0 (10Gbps +Display 4K 60Hz)

HDMI2.1 *2

USB3.2 Type-A *5

3.5mm audio jack*1

RJ45 Gigabit LAN*1

Input: 100~240V 50/60Hz  19V DC interface 5.5*2.5mm

M.2 2280 NVME/NGFF interface

M.2 2230 interface Wi-Fi + Bluetooth 5.2

Power

Power Input

DC 19V Power Connector

Watchdog

Output

Interval

Interrupt / System Reset

255-level Timer Interval

Physical Specifications

Chassis Dimensions

Weight

Accessories

113*113*38mm (excluding rubber feet)

Bare unit ¡Ö345g

Power adapter+individual packaging and user manual

Environment

Temperature

Humidity

Storage

-20¡ãC~60¡ãC

5%~95% Non-condensing

Temperature-20~60¡ã0/Humidity5%~95% Non-condensing

Operating System

Version

Supports Windows 10, Windows 11

AOS-NUCAR5122ST

R5 7640HS  DDR5 12G+256G
