AOS-SMEPCU3568L

Product introduction：

 scope of application

AOS-SMEPCU3568L belongs to industrial control host and is widely used in smart display terminal products, video terminal products, and industrial control field terminal products, such as computer all-in-one computers, industrial control all-in-one computers, thin client computers, etc.

 Product Overview

AOS-SMEPCU3568L adopts Ruixin Micro RK3568 and quad core Cortex-A55 processor, with a clock speed of up to 2.0GHz and super powerful general-purpose computing performance; Built in independent NPU, with computing power up to 0.8 Tops; Supports 4K display; In terms of interfaces, it is equipped with Gigabit Ethernet, USB 3.0, DB9, and supports multiple peripheral extensions, making it your best choice for industrial control projects.

Product Features

◆ Dual port design, supporting 10/100/1000M adaptive Ethernet;

◆ Supports up to 8GB of memory;

◆  Built in neural network NPU, supporting 0.8Tops computing power;

◆  Rich expansion interfaces, 4-channel USB 3.0 interface, 2-channel RS232 (optional RS485);

◆  Support dual screen display, HDMI up to 4K output, VGA up to 1080P output;

◆ Supports dual band WiFi 6 and Bluetooth 5.0;

◆  Built in mSATA interface, supporting access to standard mSATA modules;

◆ Run Android 11.0 and Linux systems;

◆  Perfectly supports various mainstream touch screens such as infrared, capacitor, resistor, etc., and supports mainstream peripheral drivers;

◆ Support Android system customization and provide system call interface API reference code.

Operating System

Android system: Recommended Android 11.0

Linux system: optional Ubuntu 18.04, Debian 10, Linux Buildroot

 Product Index

Main hardware specifications
Dimensions	160.2 * 124 * 30mm (including hanging ears)
CPU	Ruixin Micro RK3568, quad core Cortex-A55, with a maximum frequency of 2.0GHz
GPU	Mali-G52 2EE
NPU	Supports up to 0.8 Tops of computing power
DDR	Standard 2GB LPDDR4, optional 4GB/8GB
Flash	Comes standard with 16GB, supports up to 128GB
HDMI	1, supporting up to 4K output
VGA	1, supporting up to 1080P output
headset	1 channel, 3.5mm three-stage headphone jack
microphone	1 channel, 3.5mm microphone socket
USB Host	4 USB 3.0 ports
Ethernet	2-channel, 10/100/1000M adaptive Ethernet
WiFi frequency	2.4G&5G dual band
WiFi，BT	WiFi6，BT5.0
WiFi antenna	1 piece
RTC real-time clock	support
Timed power on/off	support
system upgrade	Support local USB upgrade
relative humidity	0%~90% (no condensation)
operation temperature	-20℃~70℃
power supply	9V~15V wide voltage DC
no-load power	7W

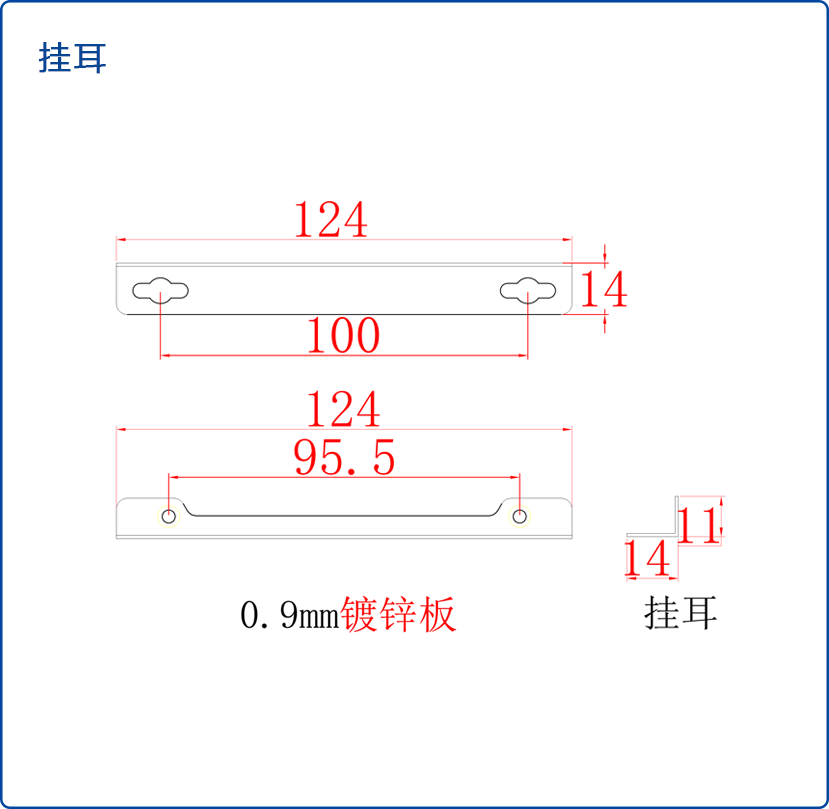

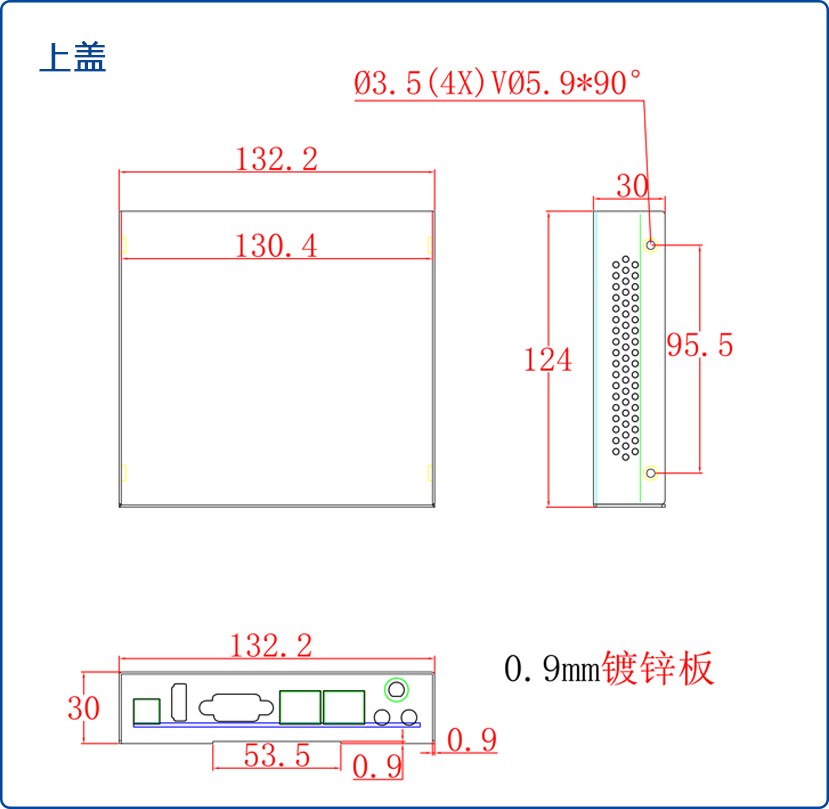

product dimension diagram：

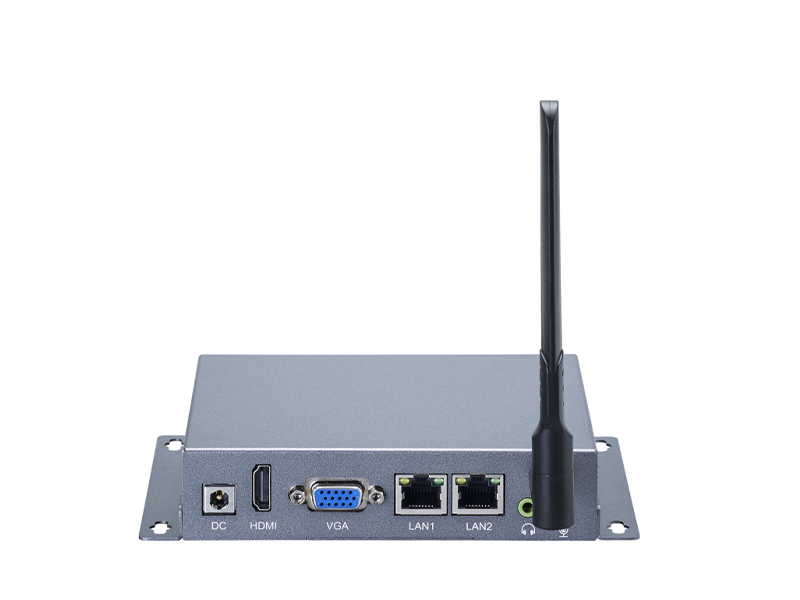

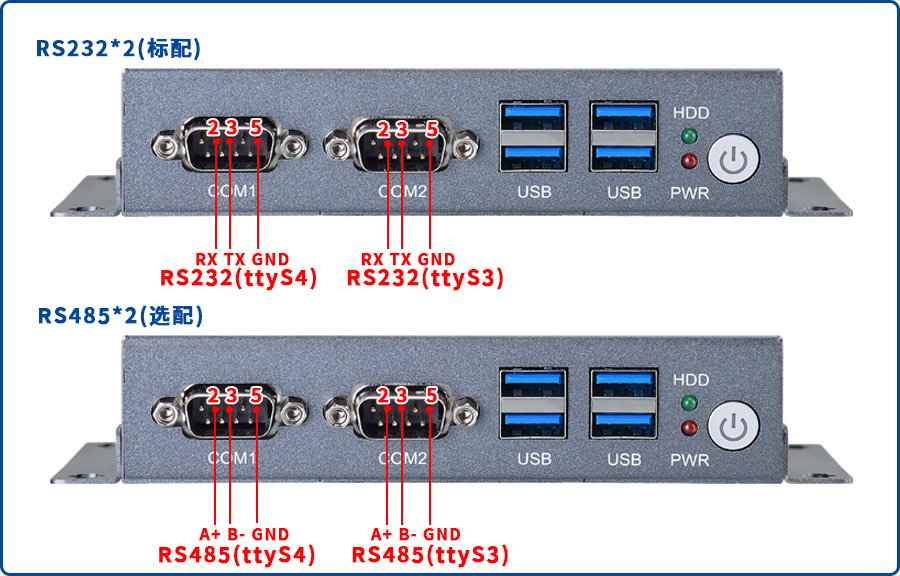

Interface annotation diagram：
