AOS-SMBRK3390L
Product introduction：
Product Overview
AOS-SMBRK3390L adopts Ruixin Micro RK3399Pro (dual core Cortex-A72+quad core Cortex-A53) CPU, equipped with Android 9.0 system, with a maximum clock speed of 1.8GHz and powerful general computing performance. Adopting Mali-T860 MP4 GPU, supporting 1080P and 4K display. In terms of interfaces, this product integrates dual Gigabit Ethernet, dual HDMI, WiFi, Bluetooth, RS232 serial port, RS485 serial port, GPIO interface, 4G and 5G. It also features a neural network processor NPU with a computing power of up to 3.0 Tops, compatible with multiple AI frameworks, and can be flexibly applied to various intelligent products.
Product Features
◆ RK3399Pro, standard 3T computing power, maximum 6T computing power (requires 1808 acceleration card);
◆ Supports 9-36V wide voltage input;
◆ Dual HDMI, supports dual screen display, 4K output;
◆ Support 5G and 4G communication;
◆ Dual Gigabit Ethernet;
◆ Dual band dual-mode 2.4/5G WiFi;

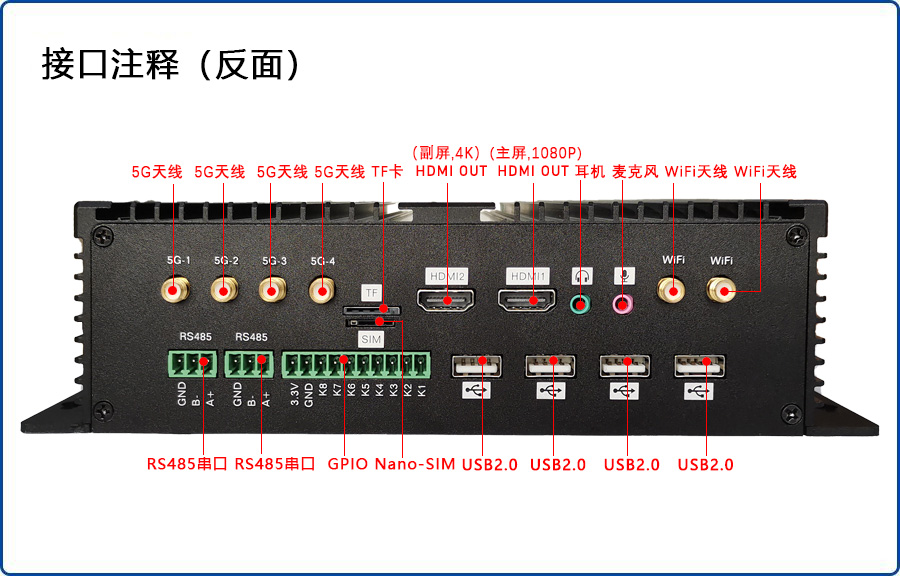

◆ Rich expansion interfaces, 4-channel USB 3.0, 8-channel USB 2.0, 4-channel RS232 serial port, 2-channel RS485 serial port, 8-channel GPIO;
◆ Support Android system customization, provide system call interface API reference code
◆ Run Android and Linux systems;
◆ Perfectly supports various mainstream touch screens such as infrared, capacitor, resistor, etc., and supports mainstream peripheral drivers.
Operating System
Android system: Recommended Android 7.1, optional Android 6.0 and 5.1
Linux system: optional Ubuntu 18.04, Debian 9, Buildroot+QT 2018.02

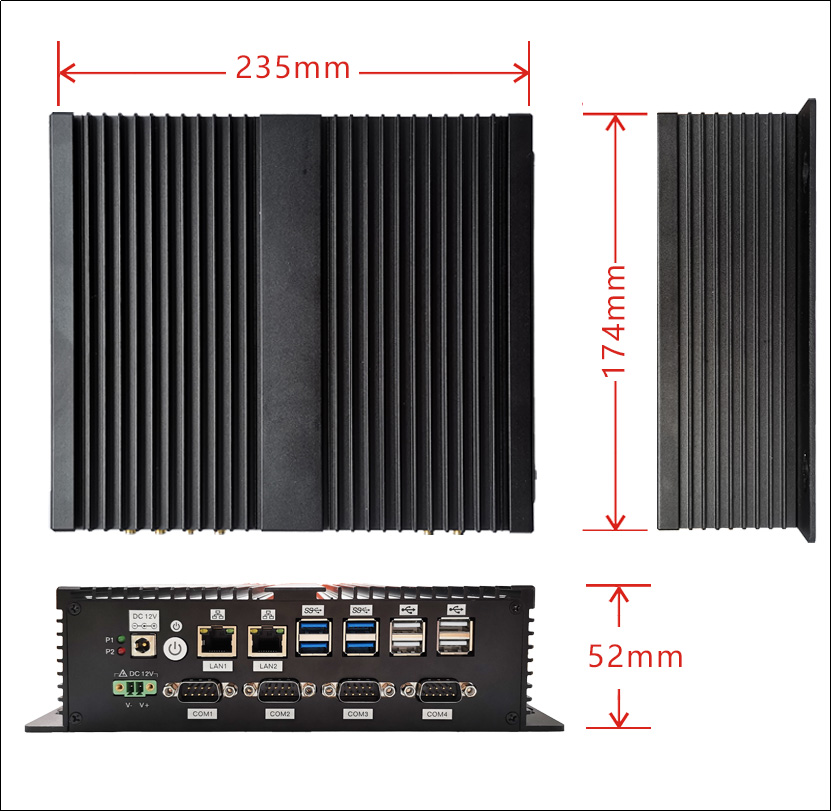

product dimension diagram：
Product Index
Main hardware specifications | |
Dimensions | 235*174*52mm |
CPU | RK3399Pro， Six core, with a maximum frequency of 1.8GHz |
AI computing power | Default 3T, up to 6T with built-in 1808 acceleration card, supports TensorFlow and Caffe models |
CPU DDR | Standard 2GB, optional 4GB |
NPU DDR | Standard 1GB, optional 2GB |
GPU | Mali-T860MP4 high-performance GPU |
Flash | 16GB， Supports up to 128GB |
HDMI output | 2, supporting dual screen abnormal display |
HDMI version | HDMI 1 is the main screen, HDMI 2 is the secondary screen |
Video format support | HDMI 1 is 1.4, HDMI 2 is 2.0 |
Image format support | Support WMV, AVI, RMVB, MPEG, MP4, etc |
headphone output | BMP，JPG，PNG，GIF |
USB2.0 interface | 1 headphone jack, 1 MIC jack |
USB 3.0 interface | 8 USB HOSTs |
Serial port | 4 USB HOSTs |
GPIO | 8-way (10 pin green terminal) |
Ethernet | 2, 10/100/1000Mbps adaptive Ethernet |
WiFi frequency | 2.4G and 5G dual band |
WiFi，BT | 802.11 b/g/n/ac，BT4.0 |
5G antenna | 4-way onboard 5G module antenna |
WiFi antenna | 2 pieces |
Light button | Restart |
pilot lamp | Custom indicator lights |
4G communication | Scalable M.2 interface 4G module |
5G communication | Scalable M.2 interface 5G module |
TF card | 1-channel standard TF card socket |
SIM stand | 1-way Nano SIM card socket |
RTC real-time clock | support |
Timed power on/off | support |
system upgrade | Support local USB upgrade |
relative humidity | 0%~90% (no condensation) |
operation temperature | 0℃~+70℃ |
storage temperature | -40℃~+70℃ |
scope of application
AOS-SMBRK3390L belongs to Android industrial control box, and is widely used in various AI application fields such as cluster server, high-performance computing/storage, computer vision, edge computing, business display integrated equipment, medical and health equipment, vending machine, industrial equipment, etc.
