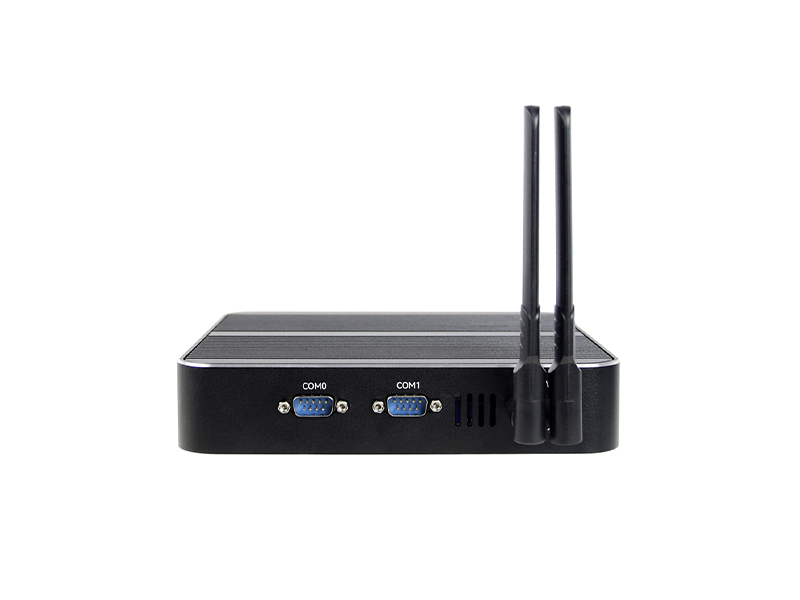

AOS- SMVEC3588L

Product introduction：

Scope of application

AOS-SMVEC3588L belongs to industrial control host and is widely used in smart display terminal products, video terminal products, and industrial control field terminal products, such as computer all-in-one computers, industrial control all-in-one computers, touch all-in-one computers, etc.

 Product Overview

AOS-SMVEC3588L adopts the Ruixin Micro RK3588 eight core processor, with a clock speed of up to 2.4GHz and super powerful general-purpose computing performance. Built in independent NPU, with computing power up to 6Tops. Supports dual screen display of HDMI and VGA. In terms of interfaces, it is equipped with Gigabit Ethernet, USB 3.0, DB-9, and supports multiple peripheral extensions.

Product Features

◆ Supports 10/100/1000M adaptive Ethernet;

◆ Supports up to 32GB of memory;

◆ Built in neural network NPU, supporting 6Tops computing power;

◆ Rich expansion interfaces, 8-way USB interface, 2-channel RS232 (optional RS485);

◆ Support dual screen display, HDMI up to 8K output, VGA up to 1080P output;

◆ Supports WiFi6, Bluetooth V5.0, and 4G networks (optional);

◆ Run Android 12.0 and Linux systems;

◆  Perfectly supports various mainstream touch screens such as infrared, capacitor, resistor, etc., and supports mainstream peripheral drivers;

◆ Support Android system customization and provide system call interface API reference code.

Operating System

Android system: Recommended Android 12.0

Linux system: optional Ubuntu 20.04 or Linux QT

Product hardware index

Main hardware specifications
Size	197 * 197 * 43.7mm (including foot pads)
CPU	Ruixin Micro RK3588, quad core Cortex-A76+quad core Cortex-A55, with a maximum frequency of 2.4GHz
GPU	Mali-G610 MC4
NPU	Supports up to 6Tops computing power
DDR	Standard 2GB LPDDR4, optional 4GB/8GB/16GB/32GB
Flash	Comes standard with 16GB, supports up to 128GB
HDMI Output	1 channel, supporting up to 8K output
VGA	1 channel, supporting up to 1080P output
Headphones	1-way, three-stage 3.5mm headphone jack
Microphone	1 channel, 3.5mm microphone socket
USB Host	4 USB 3.0, 4 USB 2.0
Serial Port	1 USB OTG
Ethernet	2-channel RS232 (optional RS485)
WiFi Frequency	1 channel, 10/100/1000M adaptive Ethernet
WiFi/BT	2.4G&5G dual band
WiFi ANT	WiFi6， Bluetooth V5.0
4G ANT	1 piece
5G ANT	1 piece (optional)
Lighted switch	support
RTC Real Time Clock	support
Timer switch	Support local USB upgrade
System Upgrade	0%~95% (non condensing)
Humidity	-20℃~70℃
Working Temp	9V~15V wide voltage DC
