AOS- SMUSEC3568L 2
Product introduction：
1.1 Scope of application
AOS- SMUSEC3568L is Android Industrial PC, it can be applied to Intelligent display terminal products, Video terminal products, Terminal products in the field of industrial control, Scenarios such as PC, industrial control, thin client etc.
1.1 Product overview

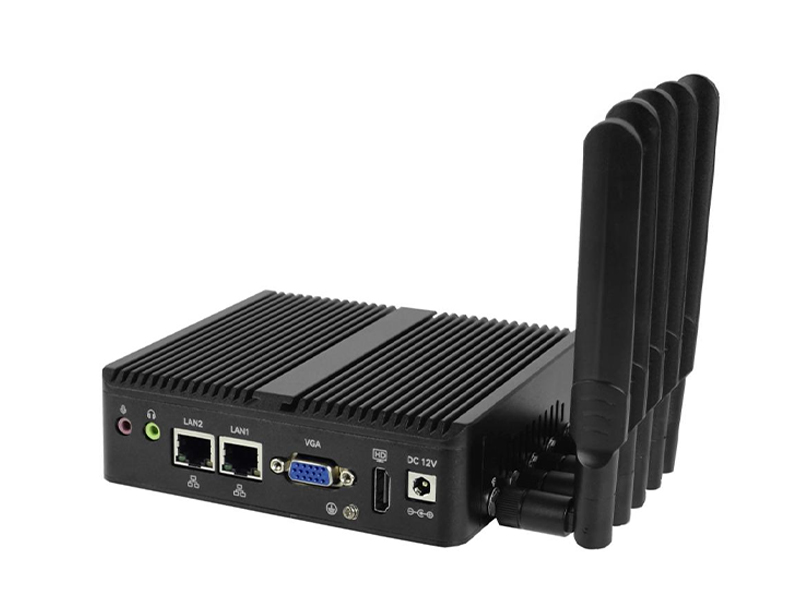

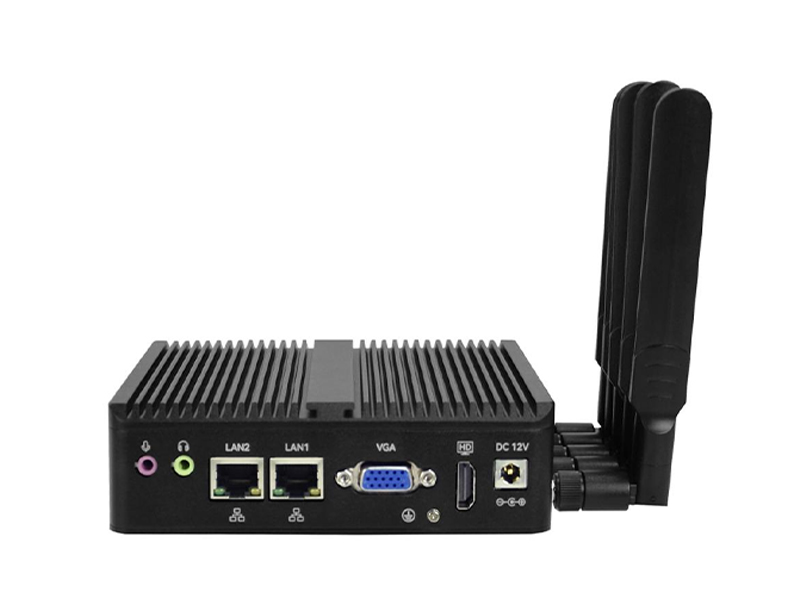

AOS- SMUSEC3568L uses Rockchip RK3568, quad-core Cortex-A55 processor, its main frequency is up to 2.0GHz, with super universal computing performance. Built-in independent NPU, computing power up to 1Tops; Support 4K display; Interface, the configuration of Gigabit Ethernet, USB 3.0 and DB9, support a variety of peripheral expansion, is your best choice in the industrial control project.
1.1 Product features
◆ Dual network port design, support 10/100/1000M adaptive Ethernet;
◆ Max support 8GB memory;
◆ Built-in neural network NPU, support 1Tops computing power;
◆ Rich expansion interface, 4 USB 3.0 interface, 2 RS232 (optional RS485);
◆ Support dual display, HDMI up to 4K output, VGA up to 1080P output;
◆ Support dual-band WiFi6, Bluetooth 5.0 and 4G/5G network (optional);
◆ Run Android 11.0 and Linux system;
◆ Perfect support for infrared, capacitance, resistance and other mainstream touch screen, support mainstream peripheral drive;
◆ Support Android system customization, provide system call interface API reference code.
1 Product hardware index
Main Hardware index | |

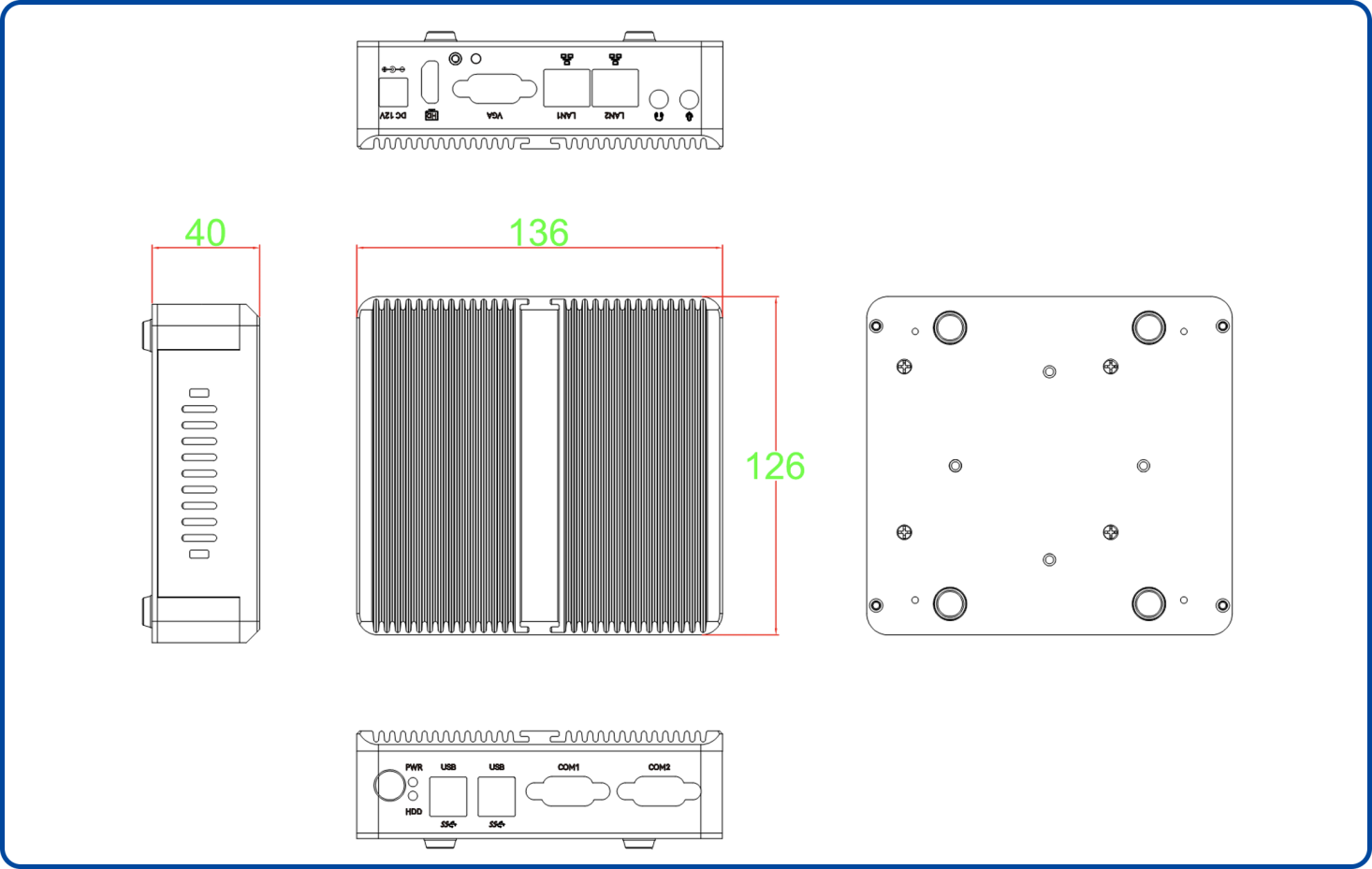

Size | 136*126*40mm |
CPU | RK3568, quad-Core A55, clocked at up to 2.4GHz |
GPU | Mali-G52 2EE |
NPU | Support 1Tops computing power |
DDR | With Standard 2GB LPDDR4, 4GB/8GB Optional |
Flash | Standard 16GB, up to 128GB |
HDMI Output | 1, supports up to 4K output |
VGA | 1, supports up to 1080P output |
Headphones | 1-way, three-section 3.5mm headphone socket |
Microphone | 1 channel, 3.5mm microphone socket |
USB Host | 4 USB3.0 |
Serial Port | 2 RS-232 Serial Port （RS-485 Optional） |
Ethernet | 2, 10/100/1000M adaptive Ethernet |
WiFi Frequency | 2.4G/5G dual frequency |
WiFi/BT | Built in WiFi6, BT5.0 |
WiFi ANT | 1 |
4G ANT | 1 (Optional) |
5G ANT | 3 (Optional) |
Lighted switch | Reboot |
RTC Real Time Clock | Support |
Timer switch | Support |
System Upgrade | Support local USB upgrade |
Humidity | 0%~95%（no condensation） |
Working Temp | -20C ~ 70℃ |
Power | 9V ~ 15V wide voltage DC |
No-load power | 2.35W |
