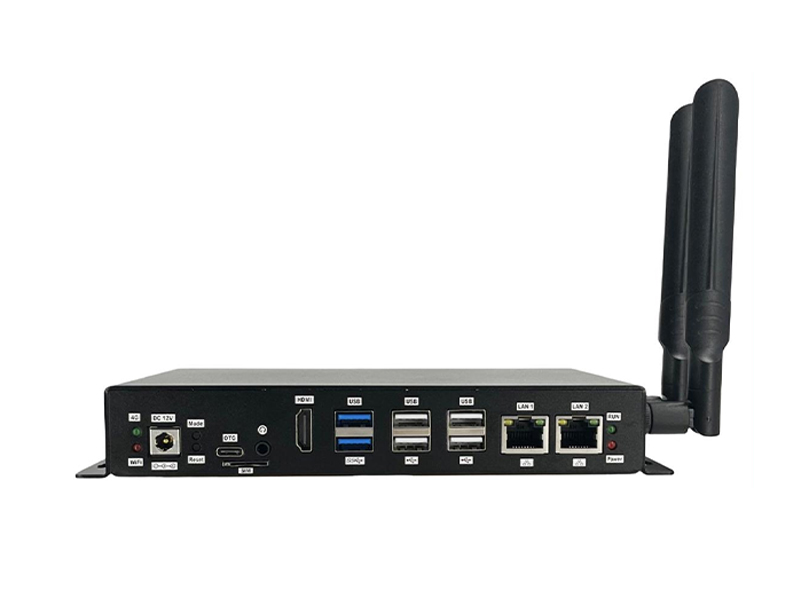

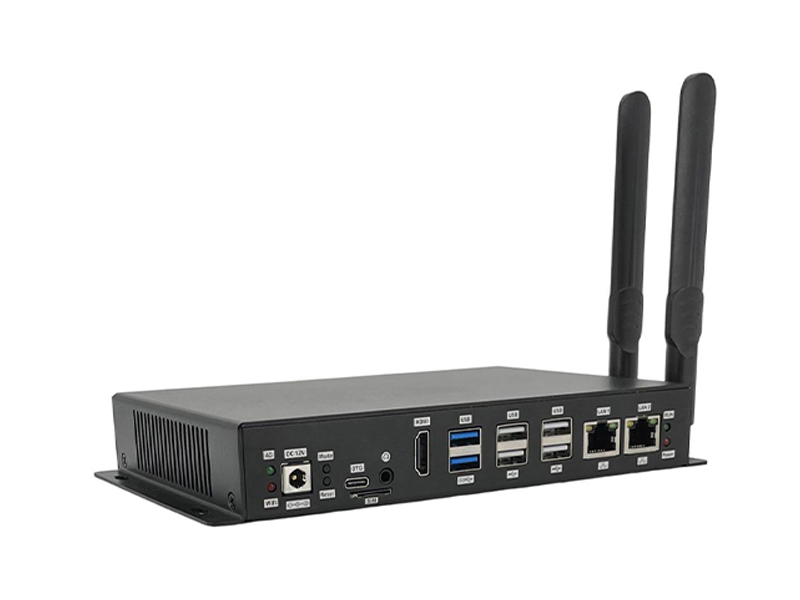

AOS- SMSST3399BOXL

Product introduction：

Product Overview

AOS-SSMSST3399BOXL is based on the Ruixin Micro RK3399 platform, with industrial grade configuration, dust-proof, earthquake resistant, and high temperature resistant. It can easily adapt to harsh deployment environments and can adapt to various terminal forms. It has rich expansion interfaces and can be widely used in fields such as vending machines, mobile robots, and IoT gateways.

Product Overview

AOS-SSMSST3399BOXL adopts Ruixin Micro RK3399 (dual core A72+quad core A53) six core processor, with a maximum clock speed of 1.8GHz, and has super powerful general-purpose computing performance; Using Mali-T860 GPU, supporting 4K decoding; Rich peripheral interfaces, equipped with dual Gigabit Ethernet HDMI/eDP/LVDS and other interfaces, supporting dual screen same display/different display.

Product Features

◆ RK3399 high-performance six core CPU provides super strong computing power.

◆  Rich external interfaces, 6-way USB interface, 4-channel RS232 serial port, KIO and control interface, speaker interface, backlight control interface, LVDS screen interface, eDP screen interface;

◆ Multiple function buttons (volume+/- button, restart button, burn button);

◆ HDMI 2.0, supports up to 4K output, LVDS and eDP support up to 1080P output, supports dual screen same display/different display;

◆  Supports 4G network (optional), 2.4G&5G WiFi (standard configuration is single frequency 2.4G);

◆  Perfectly supports various mainstream touch screens such as infrared, capacitor, resistor, etc., and supports mainstream peripheral drivers;

◆ Support Android system customization, provide system call interface API reference code。

Product Index

Main hardware specifications
Dimensions	206.4*124.2*31.5mm
CPU	Ruixin Micro RK3399, dual core Cortex-A72+quad core Cortex-A53
GPU	Main frequency up to 1.8GHz
DDR	Mali-T860
Flash	Standard 2GB LPDDR4, optional 4GB
HDMI output	Comes standard with 16GB, supports up to 128GB
HDMI version	1, supporting up to 4K output
LVDS	HDMI 2.0
eDP	30 pin standard dual LVDS interface, supporting up to 1080P output
speaker	20 pin standard eDP interface, supporting up to 1080P output
headset	1 left and right channel speaker interface
USB Host	1-way four segment earphone
USB OTG	4 USB 2.0, 2 USB 3.0
DB9 serial port	1 Type-C OTG
KIO and Control	4-channel RS232 serial port
Ethernet	Includes 1 RS485 serial port (optional TTL or RS232), 1 SPI interface, 1 relay, and 8 GPIO ports
WiFi frequency	2-channel, 10/100/1000M adaptive Ethernet
WiFi，BT	2.4G single frequency (optional 2.4G/5G dual frequency)
WiFi antenna	Built in WiFi, BT4.0
4G antenna	1 piece
TF card	1 piece (optional)
Burn button	Supports up to 128GB
Restart button	Firmware Upgrade
Volume+/- key	Restart
RTC real-time clock	Control the volume up and down
Timed power on/off	support
relative humidity	support
operation temperature	0%~90% (no condensation)
power supply	0℃~70℃
