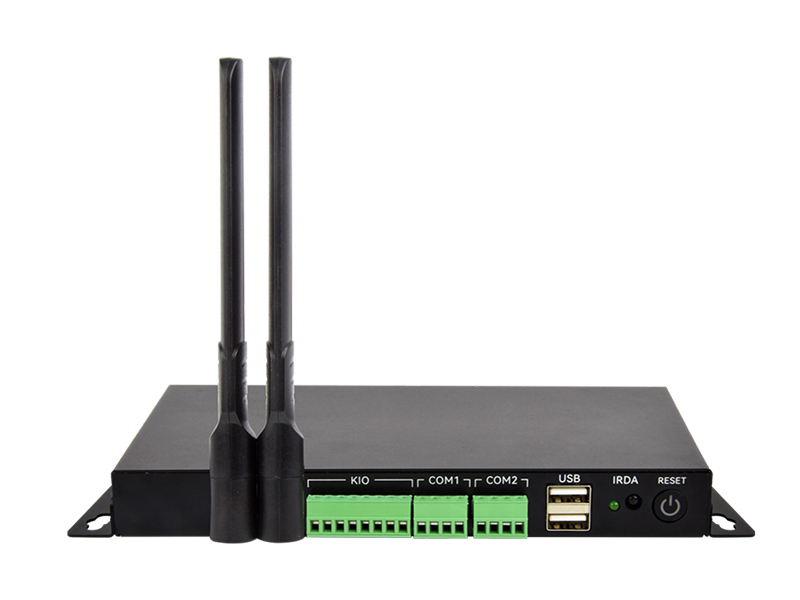

AOS-SMICD3588L

Product introduction：

Two CPU versions are available.

Version 1

Powered by the Rockchip RK3568 quad-core processor, clocked at up to 2.0GHz, with a built-in independent NPU and a computing power of up to 1 TOPs. It features a rich set of expansion ports, allowing for flexible integration with various peripherals. Its ultra-thin design accommodates diverse deployment scenarios.

Version 2

Powered by the Rockchip RK3588 octa-core processor, clocked at up to 2.4GHz, with a built-in independent NPU and a computing power of up to 6 TOPs. It features a rich set of expansion ports, allowing for flexible integration with various peripherals. Its ultra-thin design accommodates diverse deployment scenarios.

Product features

Dual Gigabit network ports;

Support 9V-15V wide voltage input;

Support up to 32GB RAM;

Built-in neural network NPU, supporting 6Tops computing power;

HDMI supports up to 8K resolution;

4 way USB interfaces, 2 way RS232 (optional 1 for RS485), 6 way KIO;

Support WiFi6, Bluetooth V5.0 and Ethernet;

Built-in PCIe interface, support a variety of PCIe 4G modules such as YUGE, Quectel (4G is optional);

Multiple function keys (1 button with light, 1 burning key);

Perfectly supports various mainstream touch screens such as infrared, capacitance, and resistance, and supports mainstream peripheral drivers;

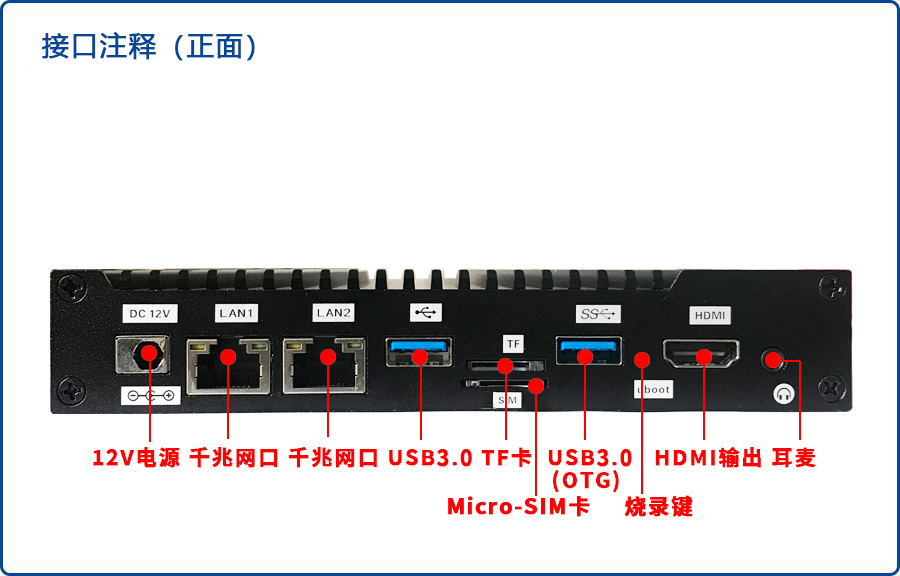

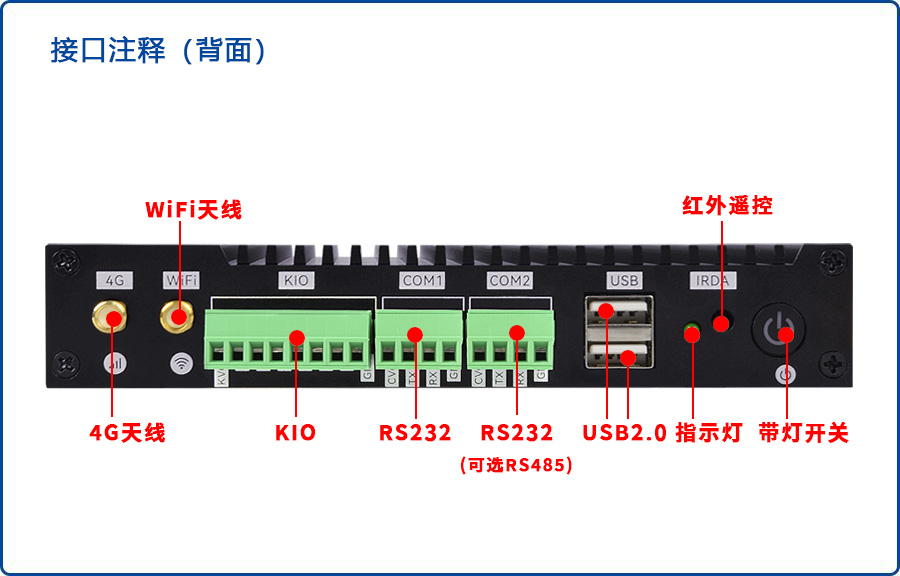

Specifications

Main Hardware index
Size	157*125*28mm
CPU	Rockchip RK3588, Quad-core Cortex-A76 + quad-core Cortex-A55, up to 2.4GHz Rockchip RK3568, quad-core Cortex-A55, up to 2.0GHz
GPU	Mail-G610 MC4
NPU	up to 6Tops
DDR	With Standard 2GB, 4GB/8GB/16GB/32GB Optional
Flash	Standard 16GB, up to 256GB
HDMI output	1, supports up to 8K output
Headphone	1-WAY, support CTIA 4-pole HP/Mic 3.5mm socket
USB Host	2 USB2.0, 2 USB3.0
USB OTG	1 USB 3.0 OTG
Serial Port	2 RS232 Serial Port （One RS485 port is Optional）
KIO	6
Ethernet	2, 10/100/1000M adaptive Ethernet
WiFi	WiFi6
Bluetooth	BT5.0
4G	Built-in Mini PCI-E interface (optional)
WiFi ANT	1
4G ANT	1 (optional)
Remote Control	1
LED	Remotes
TF Card	Support up to 256GB
SIM Slot	1 way Micro-SIM Slot
Power	9V ~ 15V wide voltage DC
Humidity	0%~95%（no condensation）
Working Temp	-20°C ~ 70°C

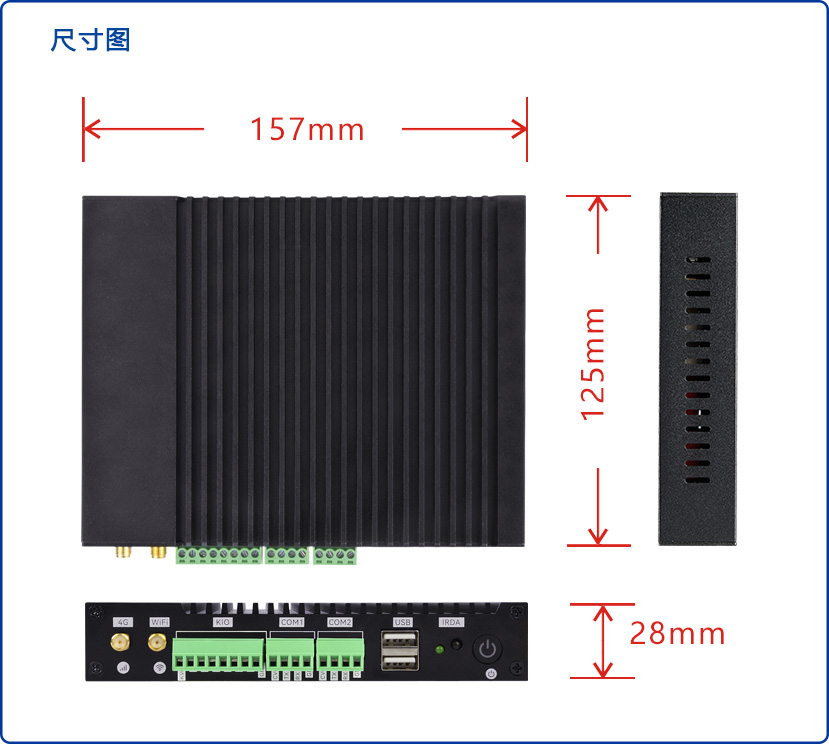

Dimensional drawing

Applications:

This device is an IoT controller and is widely applicable to applications such as vending machines, robots, self-service terminals, and edge computing devices.
