AOS-SMCA40IL
Product introduction：
Features
Version 1
Powered by the Allwinner A40i, a Cortex-A7 quad-core CPU, running Android 7.1, with a clock speed of up to 1.2 GHz. It features a Mali-400 MP2 GPU and 1080P decoding. It offers a rich selection of integrated connectivity, including Ethernet, HDMI, VGA, Wi-Fi, 4G (optional), and a 232 serial port. Its fanless design and built-in high-quality heat sink make it ideal for industrial and business applications.
Version 2
Powered by the Rockchip RK3288, a Cortex-A17 quad-core CPU, running Android 5.1, with a clock speed of up to 1.6 GHz. It features a Mali-T764 GPU and supports 4K display via HDMI. It also offers a rich selection of interfaces and supports a wide range of peripheral expansion options, including Ethernet, VGA, HDMI, Wi-Fi, Bluetooth, 4G (optional), and a 232 serial port.
Version 3
Powered by the Rockchip RK3399 hexa-core CPU (dual Cortex-A72 cores + quad Cortex-A53 cores), clocked at up to 1.8 GHz, it runs Android 7.1 and features a Mali-T860 GPU with 4K display support. Ports include VGA, Ethernet, HDMI, Wi-Fi, and optional 4G.
Product overview
The AOS-SMCA40IL features the Allwinner A40i Cortex-A7 quad-core CPU,
running Android 7.1, with a maximum clock speed of 1.2 GHz.
It also features a Mali-400 MP2 GPU and 1080P decoding.
It offers a rich array of integrated connectivity options, including Ethernet,
HDMI, VGA, Wi-Fi, 4G (optional), and a 232 serial port.
Its fanless design and built-in high-quality heat sink make it ideal f
or industrial and business applications.
Act 2Product Index
Species & Interface | Main Parameter |
Physical Size | Length*Width*Height (106mm*75.5mm*38mm) |
CPU | Cortex-A7 quad-core, 6Core，clocked at up to 1.8GHz, Android 7.1 Also supports Rockchip RK3399, Rockchip RK3288 CPU optional |
GPU | Mali- T860 high-performance GPU，Optional: Mali-T764 high-performance GPU, Mali-T860 GPU |
RAM | With Standard 1G, 2G , 4G Optional |
ROM | 16G, Support up to 128G |
HDMI Output | 1, Support 1080P@60Hz，4k output |
VGA Output | 1, Support 1080P output |
Video Format | Support WMV, AVI, M4V, MPG, MP4 etc. |
Picture Format | Support BMP, JPEG, PNG |
Headphone | 1-Way left and right channel headphones |
Audio Input | Support one channel mono MIC |
USB Interface | 4 USB 2.0 |
Serial Port | 2 Serial Ports (Optional) |
Ethernet | 1, 10/100M/1000Mbps |
WiFi & Bluetooth | Built in WiFi 2.4GH,, BT5.2 |
Micro SD Card | Self-elastic micro SD card socket, up to 128GB capacity |
3G/4G Network | Support PCI-E interface 4G Internet access (optional) |
SIM Socket | 1 Nano-SIM card socket |
RTC Real Time Clock | Ultra-low-power RTC circuit with timer |
Timer Switch | Support alarm functionalities |
System Upgrade | Support local USB upgrade |
Working Humidity | 0%~95% (no condensation) |
Working Temp | -20°~70° |
Storage Temp | -40°~70° |

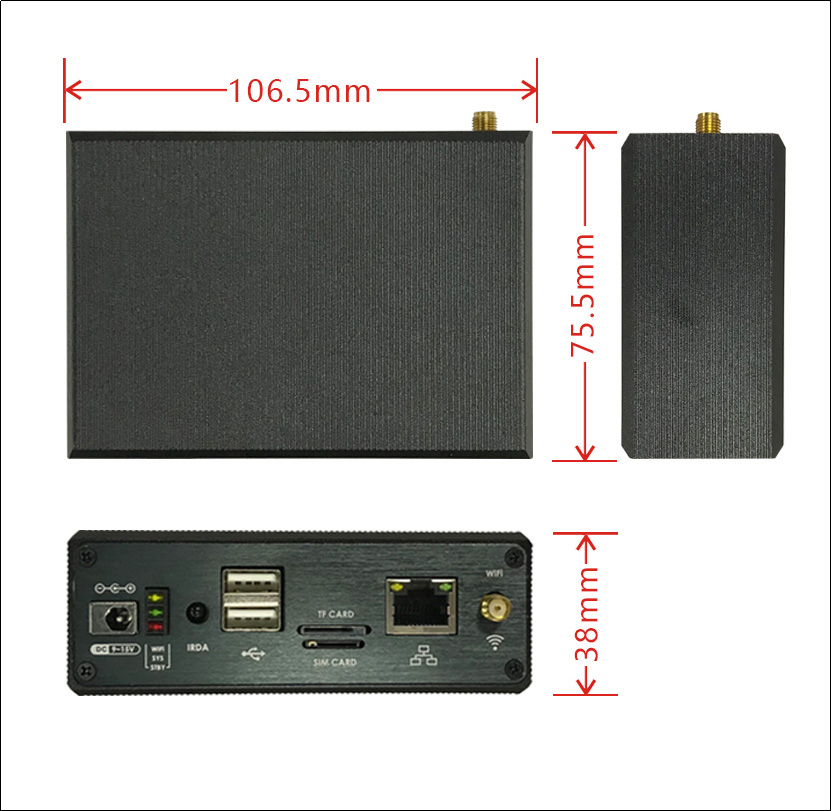

Product size chart:

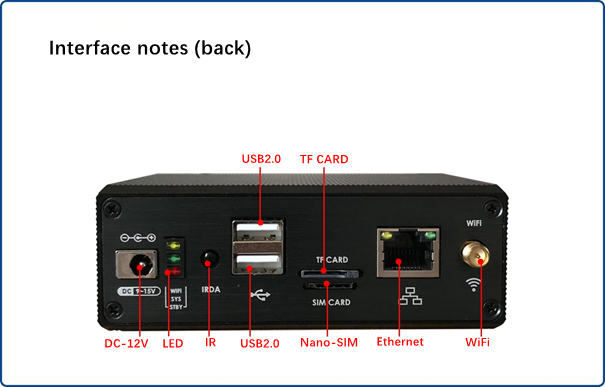

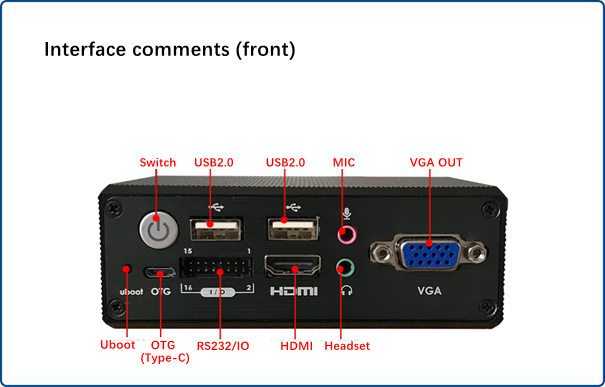

Interface annotation
Power Adapter
For your personal safety and proper use of this product, please ensure that the AC power source you are using meets the input specifications indicated on the back of the power adapter. Please use a three-pin power outlet with a reliable ground terminal. We recommend using the original power adapter provided with this product. If the original power adapter is unavailable, be sure to use a power adapter of the same specification.
