AOS-SNASN181SM4
Product introduction£º
Specification Parameters
processor | CPU
| Intel Alder Lake-N series processors N1004 core with 4 threads; N3058 core with 8 threads (optional) |
chip set | Intel® SOC | |
BIOS | The AMI 32Mbit model supports diskless boot, network wake-up, power-on startup, watchdog functionality, and other features. | |
internal storage | Preloaded memory Maximum supported memory | 1*SO-DIMM 16GB DDR5 (optional in the package) 1*SO-DIMM DDR5 4800 MHz, up to 32GB |
memory | TF card slot M.2 slot
| 1*TF card slot (front-facing, supports bootable guidance) 4 *M.2 (PCIEX1) NVMe2280,22110 (with quick-release support) 1*M.2 (PCIEX1) NVMe 2280 |
show | output | 1 ¡Á HDMI (maximum resolution: 3840x2160) 1 ¡Á DP (Maximum supported resolution: 4096¡Á2160) |
network | RJ45 | 4 * Intel i226-V |
I/O | DC HDMI DP USB
RJ45 | 1*DC 12V power input 1*HDMI 1*DP 1*USB3.2 (Front) 2*USB 2.0 (front) 2*USB 2.0 (10-pin) 1*USB 2.0 (5-pin interface on motherboard) 4*RJ45 |
other | applicable scene Video interface Fan temperature control Network wake-up port buzzer way to install | Server/Mini Host/Office Use/Industrial PC/Soft Router/All-in-One 1*HDMI1*DP Intelligent Temperature Control and Speed Regulation support support Desktop |
source | import | Standard DC12V power input (5525 interface) |
watchdog | output margin | Interrupt, system reboot Level 255 Fixed Interval |
Physical parameters | size | 147.5mm (depth) * 165mm (width) * 52mm (height), 59mm (including footrest height) |
environment | temperature humidity | Operating temperature: -0¡ãC to 70¡ãC Storage temperature: -20¡ãC to 70¡ãC 5%~85% without condensation |
operating system | edition | Windows / Linux / PVE / ESXI / Ubuntu / Debian / CentOS / Unraid / OMV / TrueNAS |
Order information
Sales model | explain |
AOS-SNASN181SM4 | Intel N100 quad-core processor with 4 threads, clock speed of 3.4GHz, 8GB RAM, and 128GB SSD Intel N100 core with 4 threads, clock speed 3.4GHz, 8GB RAM, 256GB SSD Intel N100 quad-core processor with 4 threads, clock speed of 3.4GHz, 16GB RAM, and 512GB SSD |
AOS-SNASN381SM4 | Intel N305 8-core 8-thread processor with a base clock speed of 3.8GHz, 8GB RAM, and 128GB SSD Intel N305 8-core 8-thread processor with a base clock speed of 3.8GHz, 8GB RAM, and 256GB SSD Intel N305 8-core 8-thread processor with 3.8GHz base clock speed, 16GB RAM, and 512GB SSD storage
|

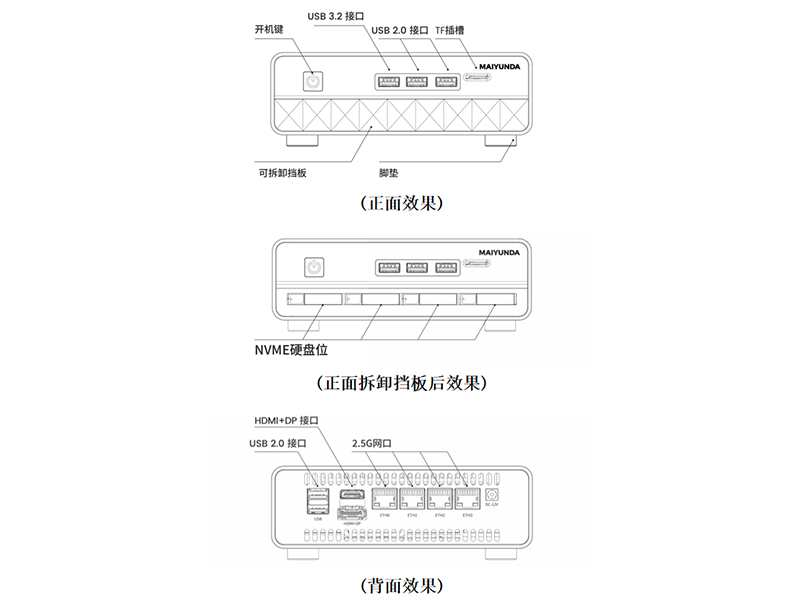

dimensional drawing
application area
Ideal for education, restaurants, hotels, shopping malls, corporate meetings, and government transparency initiatives.
