chip set

Intel® SOC

BIOS

AMI 32Mbit, supporting diskless booting, network wake-up, power-on startup, watchdog function, etc.

internal storage

capacity

The motherboard is equipped with LPDDR5 memory. It comes standard with 16GB (32GB is also available as an option)

memory

M.2

Equipped with 3 M.2 2280 NVMe slots (2 support 140T computing card expansion)

show

output

The maximum resolution of the HDMI + DP interface is 3840x2160

network

chip

WIFI

1xRJ45, Intel 1225/226V chip, dual 2.5G network cards (optional)

Supports dual-band wireless WiFi6 and Bluetooth 5.4

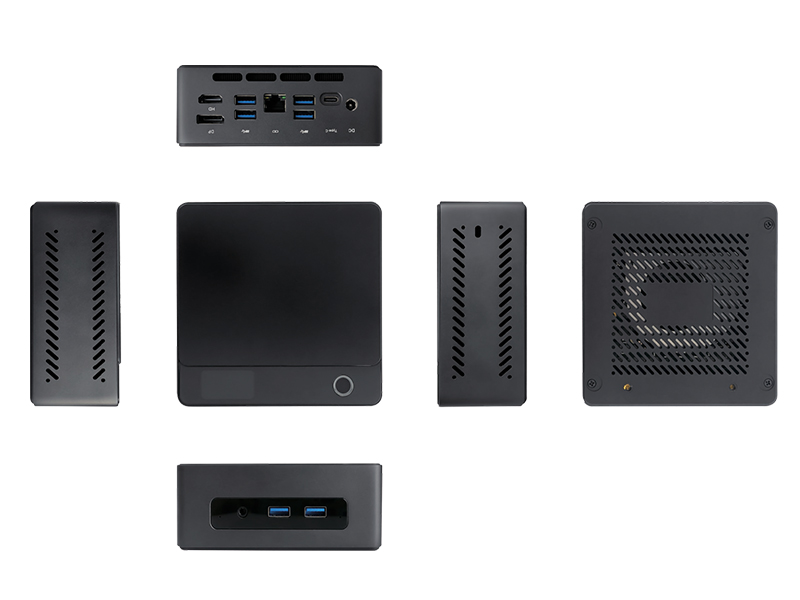

I/O

External device interface

6 USB 3.0 interfaces, 2 on the front panel of the case and 4 on the rear panel of the case

1 4-section 3.5mm audio interface for headphones/microphone, located on the front panel of the case

HDMI interface x1, DP interface x1, the interfaces are on the rear panel of the case

1 R-45 Gigabit network interface, located on the rear panel of the case

1 Type C interface, on the rear panel of the case

source

Input

Rated power consumption

Maximum overall power consumption ¡Ü 20W

Adapter specifications: 12V/5A

watchdog

Output

Interval

Interrupt, system restart

255-level timer interval

Physical Parameter

Size

Heat dissipation method

130mm ¡Á 129.5mm ¡Á 45.0mm

1 custom dedicated heat dissipation module

environment

Temperature
humidity

storage

0¡ãC ~ +50¡ãC

5% ~ 95% RH, non-condensing

-40¡ãC ~ +80¡ãC, 5% ~ 95% RH, non-condensing

operating system

versions

Domestic operating system

Certification

Safety Certification

Compliant with CCC, RoHS and other certifications

AOS-NUCD30M41SX

CPU£ºD3000M  4G+128G SSD

AOS-NUCD30M82SX

CPU£ºD3000M  8G+256G SSD

AOS-NUCD30M165SX

CPU£ºD3000M  16G+512G SSD
