AOS-NUCMUF81SZ
Product introduction£º
product presentation

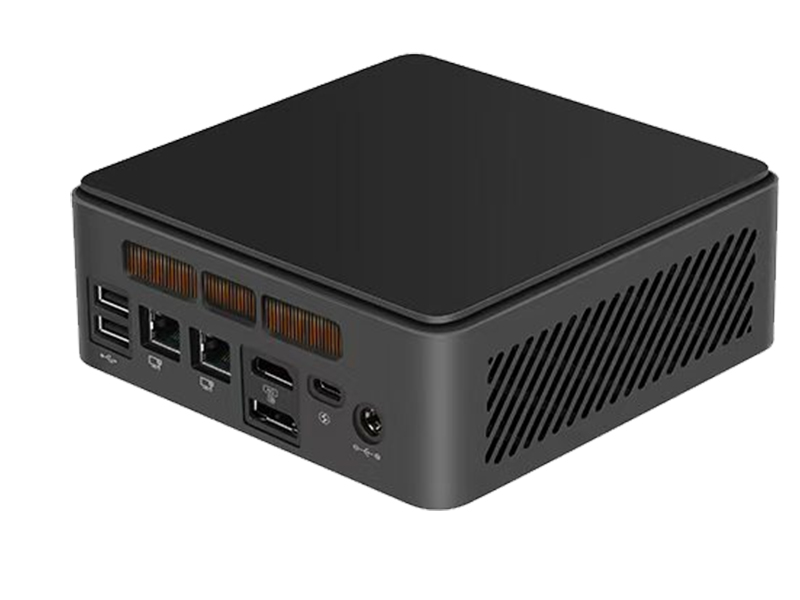

This is a MINI PC BOX specifically designed for cross-border e-commerce, supporting Linux operating systems including Windows 10, Windows 11, Ubuntu, and CentOS. Equipped with Intel® ALDER LAKE series processors, dual network cards, and an ultra-quiet cooling system, the device is suitable for applications such as cross-border e-commerce, commercial office use, and high-end cloud terminals.
Specification Parameters
processor | CPU | Intel 14thMetero Lake U/H Processor(125H/155H/185H) |
chip set | Intel® SOC | |
BIOS | The AMI 32Mbit model supports diskless boot, network wake-up, power-on startup, watchdog functionality, and other features. | |
internal storage | capacity | 2*SO-DIMM DDR5 5600MHz Max64GB |
memory | M.2 | 1M.2M Key, supports SATA/PCIe 4.0x4 adaptive technology 1*M.2 M Key, supports PCIe 4.0x4 |
show | output
| Three manifestations of simultaneous and asynchronous operations Intel® Arc™ graphics 1*HDMI+1*DP+1*Type-C 1¡ÁHDMI (Maximum supported resolution: 3840x2160) 1¡ÁDP (Maximum supported resolution: 4096¡Á2160) |
network | Chip | 2 x RJ45 ports, onboard Intel i226-V network card (2.5G speed) |

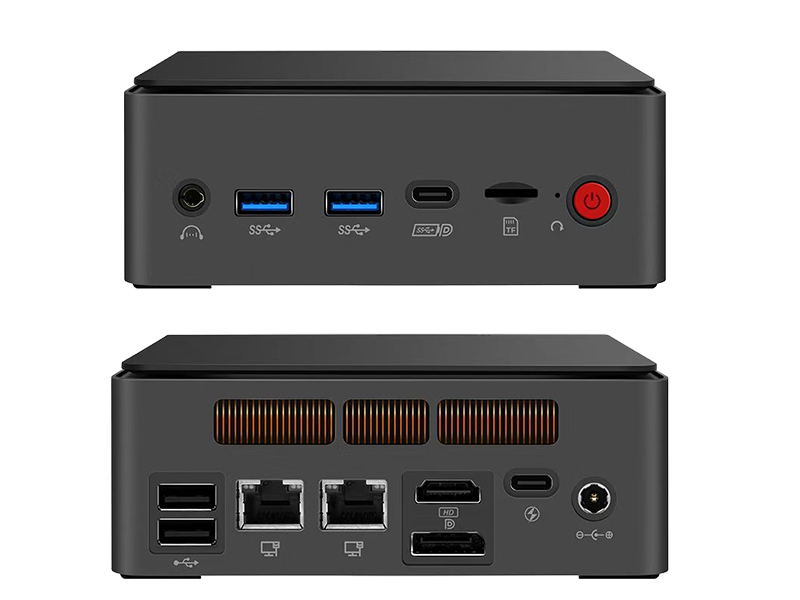

I/O | Rear I/O interface
Front-end I/O interface
TF Card audio frequency expansion slot I/O chip Heat Dissipation System | 1*DC_IN port 1 HDMI + DP port 2 LAN ports 2 USB 2.0 ports 1*PWRBTN button with indicator light 1*Reset&C_CMOS button 1*MicroSD card slot 1*Type-C port (Ö§³Ö Thunderbolt 4, power supply, and display) 2 USB 3.2 Gen 2 (10 Gbps) ports 1*Line Out & Mic In 2-in-1 port 1 ¡Á TF card On-board ALC897 audio decoding controller; 1*M.2 E Key, supports Wifi6/Bluetooth module expansion; IT8613E turbine radiator |
source | supply electricity | DC 19V (For 125V/155V systems, use a 19V 4.74A power adapter) (185H recommends using a 19V 6.32A power supply) |
watchdog | output margin | Interrupt, system reboot Level 255 Fixed Time Interval |
Physical Parameter | size | 128mm*128mm*48mm |
environment | temperature humidity | operating temperature: -10~60¡ãC; storage temperature: -20¡ãC~75¡ãC Relative humidity: 0% to 95%, no condensation |
operating system | edition | Win10 64-bit, Win11 64-bit, Ubuntu, CentOS, etc. |
surface | material quality pigment | Plastic Dark gray (customizable) |
Posthumous Certificate | Safety Certification | Complies with certification requirements such as CCC and RoHS |
Order Information
Sales Model | explain |
AOS-NUCMUF81SZ | CPU: Ultra 5 125H/U 14-core, 18-thread, 4.5 GHz; Memory: 8 GB; SSD: 128 GB CPU: Ultra 5 525H/U ¨C 14 cores, 14 threads, 4.9 GHz; Memory: 8 GB; SSD: 128 GB
|
AOS-NUCMUJ81SZ
| CPU: Ultra 7 155H/U 16-core 22-thread processor running at 4.8 GHz; RAM: 8GB; SSD: 128GB CPU: Ultra 7 255H/U ¨C 16 cores, 16 threads, 5.1 GHz; Memory: 8 GB; SSD: 128 GB
|
AOS-NUCMUX81SZ
| CPU: Ultra 9 185H/U 16-core 22-thread processor running at 5.1GHz; RAM: 8GB; SSD: 128GB CPU: Ultra 9 285H/U ¨C 16 cores, 16 threads, 5.4 GHz; Memory: 8 GB; SSD: 128 GB |
application area
It is suitable for various applications including smart transportation, industrial control, digital signage systems, education, restaurants, hotels, shopping malls, corporate conferences, and government transparency initiatives.
