AOS-NUCN5041SBW
Product introduction£º
NUC Computer
Powered by Intel's 11th-generation Jasper Lake N5095 CPU
Supports 6 USB ports (4 USB 3.0 / 2 USB 2.0)
HDMI & Type-C support 4K@60Hz, 1 Type-C port
Supports HDMI, VGA, and Type-C, supporting triple displays
Utilizes Realtek's RTL8111H Gigabit Ethernet and 7.1-channel high-definition audio
Supports Wake-on-LAN, Power-on, and Watchdog Timer
Complies with CE, FCC, and ROHS regulations
Dimensions: 125mm (L) x 103mm (W) x 20mm (H)
Product Introduction
It is a MINI PC BOX tailored for VDI cloud desktop terminals, supporting Win10, Win11/Ubuntu, CentOS, and other Linux operating systems. The product uses Intel® Jasper Lake series processors, with a compact size of only 0.34L and an ultra-quiet design. It can be applied in educational cloud terminals, enterprise office cloud terminals, financial cloud terminals, personal cloud terminals, and other application areas.
Specifictions
Processorr | CPU | Intel Jasper Lake N5095 2.0GHz qual-core Maximum Turbo Frequency 3.4GHz £¨Intel® Celeron® Processor N5095/N5095A/N5100/N5105 Can choice£© |
Chipset | Intel® SOC | |
BIOS | AMI 32Mbit, supports diskless boot, Wake-on-LAN, power-on boot, watchdog and other functions | |
Memory | Capacity | Onboard LPDDR4£¬Support 2933 MHz£¬2G/4GB/8G |
Storage | eMMC5.1 SSD Expansion solet M.2 SSD
| 10G/16G/32G/64G/128G 0G/64G/128G/256G/512G 1 x M.2 2280 SATA/NVME SSD£¨default SATA signal£© |
Display | Graphics card Output | Intel® UHD Graphics 500 1 x VGA/1 x DP£¬VGA 2K@60Hz/DP 4K@60Hz(Choose one of two£© 1 x HDMI£¬4K@60Hz 1 x TYPE-C£¬4K@60Hz |
Internet | LAN WIFI | 1 x RJ45£¬ RTL8111H Chip£¬Gigabit Network Card 802.11 b/g/n/ac Dual-Band Wi-Fi, or BlueTooth 4.2 |
I/O | USB 3.0 USB 2.0 LAN HDMI VGA type-c RJ45 Microphone Jack Power button Reset LED DC JACK Audio | 4 x USB3.0 2¡ÁUSB2.0 1¡ÁLAN 1¡ÁHDMI 1¡ÁVGA 1¡Átype-c 1¡ÁRJ45 1 ¡Á Microphone Jack 1 ¡Á power button 1 ¡Á Reset button 1 x Power indicator LED & 1 ¡Á HDD indicator LED 1 ¡Á DC JACK REALTEK ALC897£¬7.1 High-Fidelity Multi-Channel Sound Card |
Power | Input Rated power | DC 12V Power consumption varies by configuration |
Watchdog | Output Interval | Can trigger interrupt or system reboot 255-level programmable timing interval |
Physical Parameters | Dimensions | 125mm (L) x 103mm (W)x20mm(H) |
Environment | Temperature Humidity | Operating temperature: 0¡ãC ~ 50¡ãC Storage temperature: -20¡ãC ~ 70¡ãC 5%~90% non-condensing |
Operating System | Versions | Windows 10/Linux |
Appearance | Materila Color | Plastic + fabric wrap / plastic + metal Silver gray / dark gray (customizable) |
Certification | Safety Certifications | Complies with CCC, RoHS and other certification requirements |
Ordering information
Sales model | Descripition |
AOS-NUCN541SBW | CPU£ºN5105 2.90 GHz 4GB 128GB SSD |
AOS-NUCN5041SBW | CPU£ºN5095 2.90GHz 4GB 128GB SSD |
AOS-NUCN5141SBW | CPU£ºN5100 2.80 GHz 4GB 128GB SSD |
AOS-NUCN4541SBW | CPU£ºN4500 2.80 GHz 4GB 128GB SSD |
AOS-NUCN60541SBW | CPU£ºN6005 3.30 GHz 4GB 128GB SSD |

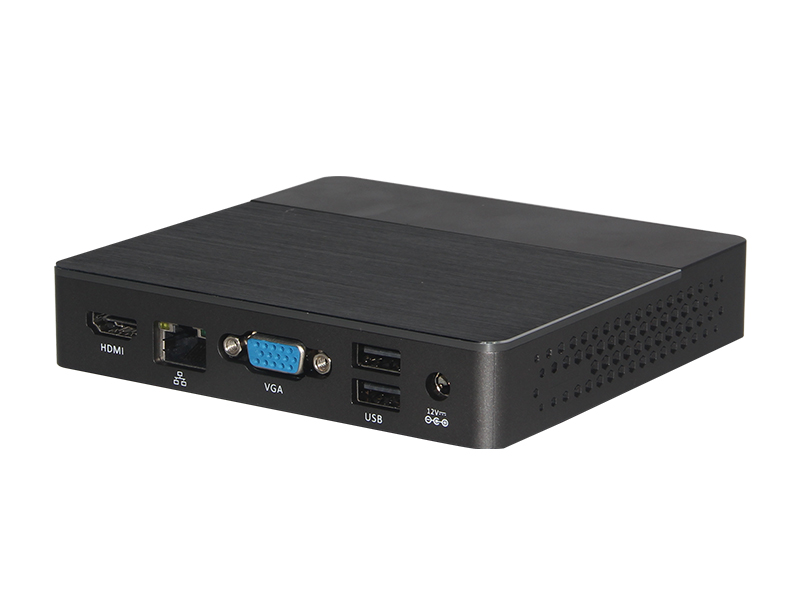

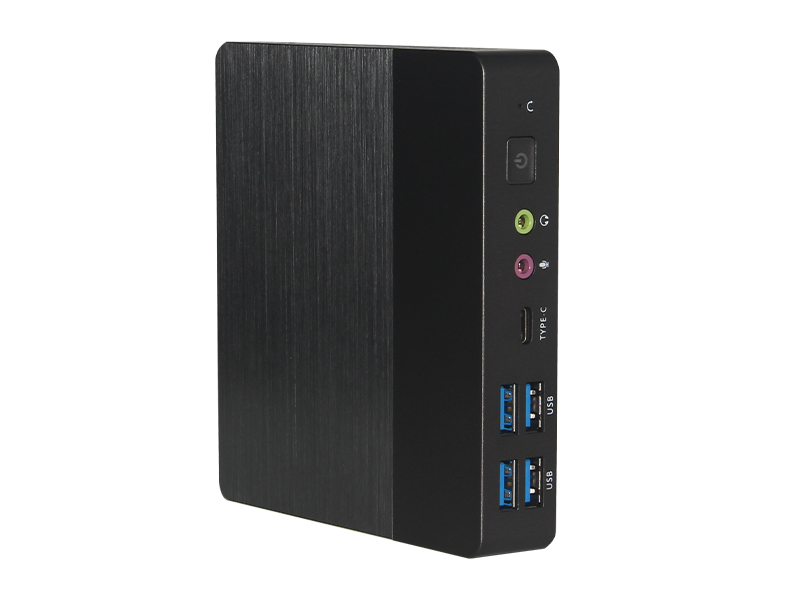

Product image
Applications
Suitable for education, restaurants, hotels, shopping malls, corporate meetings, government information disclosure, and other fields.
