AOS-NUCN1041S2LW
Product introduction£º
NUC computer
Supports AlderLake-N N100/N95/N97 CPUs
Integrated Intel UHD Graphics Gen12 high-performance graphics
Using the RTL8111H dual-core design, internal and external network separation is possible
Supports 1 x HMDI + 1 x DP, dual-display 4K@60Hz output
Ultra-quiet cooling fan design, less than 38 decibels
Supports Wi-Fi 6/5 for easy wireless high-speed transmission
LPDDR5 fifth-generation DDR high-speed and efficient
Dimensions: 125mm (L) x 112mm (W) x 43mm (H)
Product Introduce
It is a MINI PC BOX custom-designed for cross-border e-commerce, supporting Win10, WIN11 / Ubuntu, CentOS, and other LINUX operating systems. The product features an Intel® ALDER LAKE series processor, dual network cards, and an ultra-quiet cooling design. It can be used in cross-border e-commerce, commercial office, high-end cloud terminals, and other application areas.
Specifications
Processor | CPU | Intel Alder Lake-N Intel® Alder Lake N95/N100/N300/N30 |
Chipset | Intel® SOC | |
BIOS | AMI 32Mbit, supports diskless boot, Wake-on-LAN, power-on boot, watchdog and other functions | |
Memory | Capacity | LPDDR5 8G Support 4800 MHz |
Storage | UFS2.1 SATA 3.0 M.2 SSD | 0G/128G/256G Can Installations 2.5inch HDD/SSD (7MM) 1 x M.2 2280 SATA/NVME SSD£¨default SATA signal) |
Display | Graphics card Output | Intel® UHD Graphics Gen12 HDMI+DP single , double Display£¨synchronous/Asynchronous display£©Support 4K@60Hz 1¡ÁHDMI £¨MAX£º3840x2160£© 1¡ÁDP £¨MAX£º4096¡Á2160£© |
Internet | LAN WIFI | 2 x RJ45£¬RTL8111H chip£¬Dual Gigabit Network Cards 802.11 b/g/n/ac Dual-Band Wi-Fi, or BlueTooth 4 |
I/O | USB 3.0 USB 2.0 LAN HDMI DP RJ45 Power button Reset TF card LED DC JACK Audio | 1 x USB3.0 3¡ÁUSB2.0 2¡ÁLAN 1¡ÁHDMI 1¡ÁDP 2¡ÁRJ45 1 ¡Á power button 1 ¡Á Reset button 1 ¡Á TF Card 1 x Power indicator LED & 1 ¡Á HDD indicator LED 1 ¡Á DC JACK ALC269 |
Power | Input Rated power | DC 12V Power consumption varies by configuration |
Watchdog | Output Interval | Can trigger interrupt or system reboot 255-level programmable timing interval |
Physical Parameters | Dimensions | 125mm (L) x 112mm (W)x43mm(H) |
Environment | Temperature Humidity | Operating temperature: 0¡ãC ~ 50¡ãC Storage temperature: -20¡ãC ~ 70¡ãC 5%~90% non-condensing |
Operating System | Versions | Win10 64 bit¡¢Win11 64 bit¡¢Ubuntu ¡¢CentOS etc |
Appearance | Materila Color | Plastic Black (color customizable) |
Certification | Safety Certifications | Complies with CCC, RoHS and other certification requirements |
Ordering informations
Sales model | Descriptions |
AOS-NUCN9541S2LW | CPU£ºN95 3.40 GHz |
AOS-NUCN9741S2LW | CPU£ºN97 3.60 GHz |
AOS-NUCN1041S2LW | CPU£ºN100 3.40 GHz |
AOS-NUCN10541S2LW | CPU£ºN105 3.80 GHz |
AOS-NUCN15041S2LW | CPU£ºN150 3.70 GHz |
AOS-NUCN2041S2LW | CPU£ºN200 3.70 GHz |
AOS-NUCN3041S2LW | CPU£ºN300 3.80 GHz |
AOS-NUCN30541S2LW | CPU£ºN305 3.80 GHz |

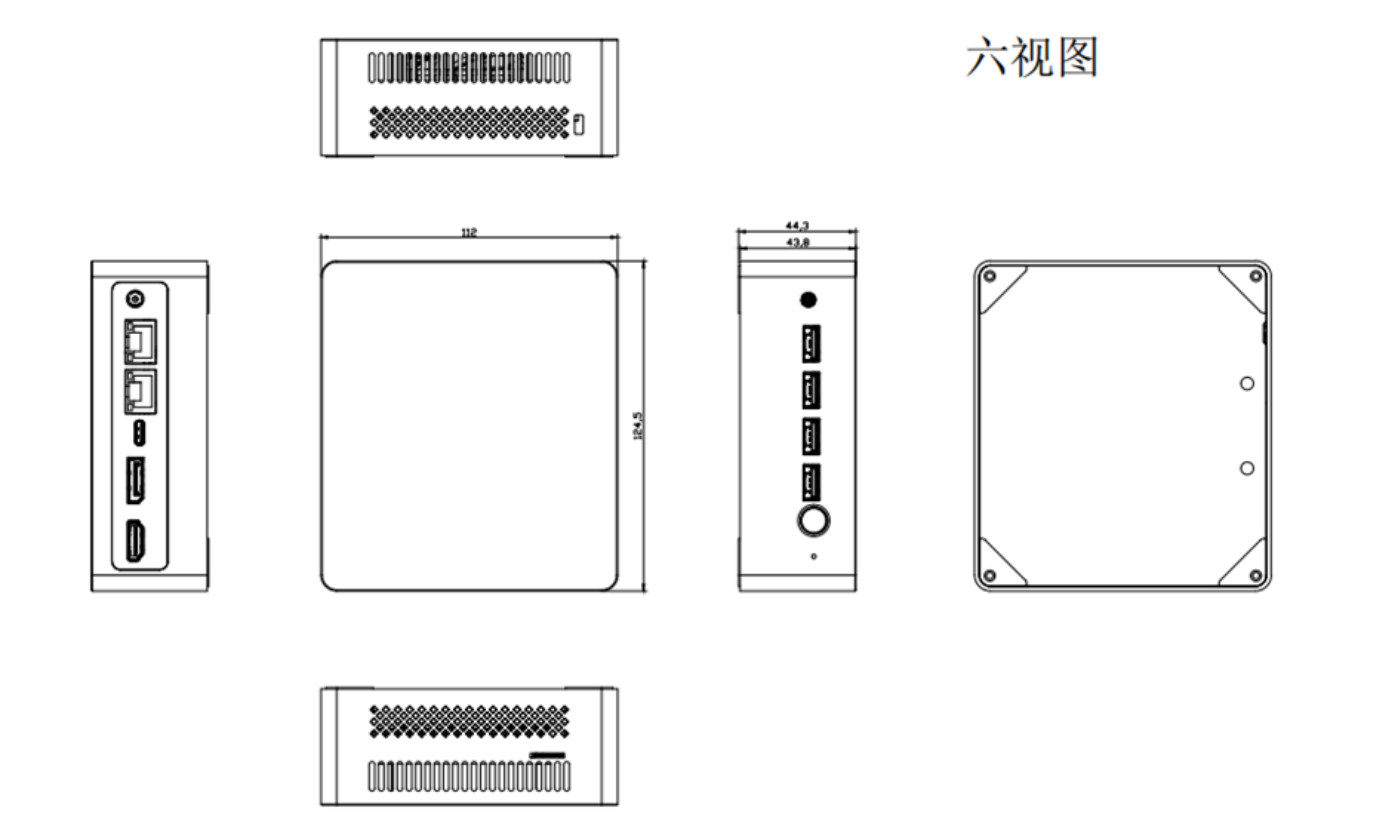

Parameter Image

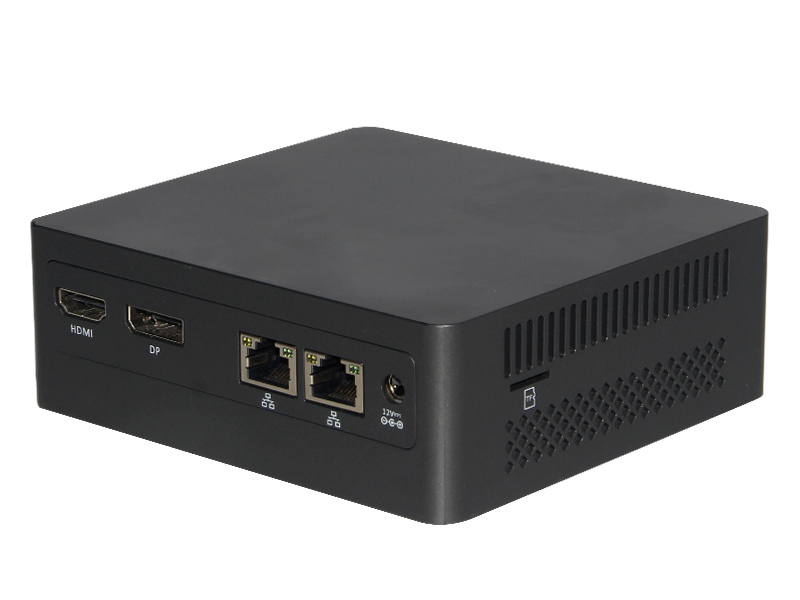

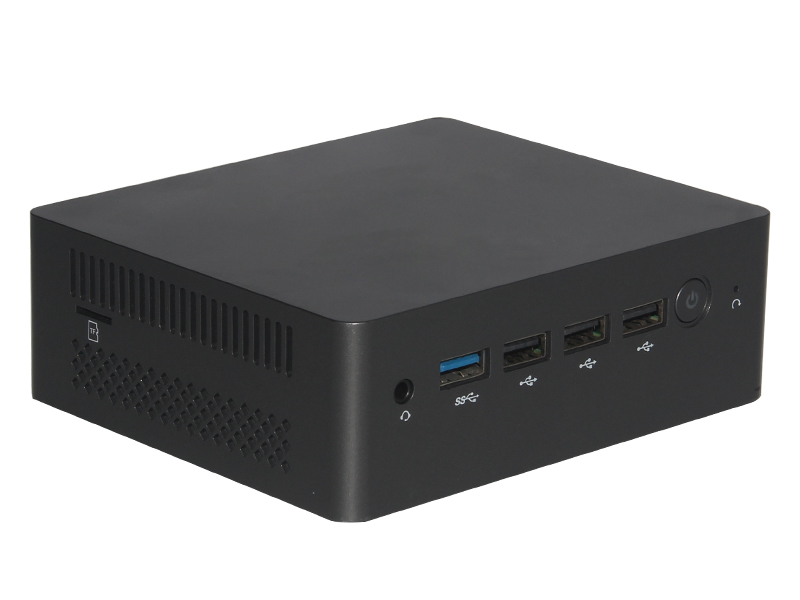

Product Image
Applications
Applicable to smart transportation, industrial control, digital signage education, restaurants, hotels,shopping malls, company meetings, government transparency, and other fields.
