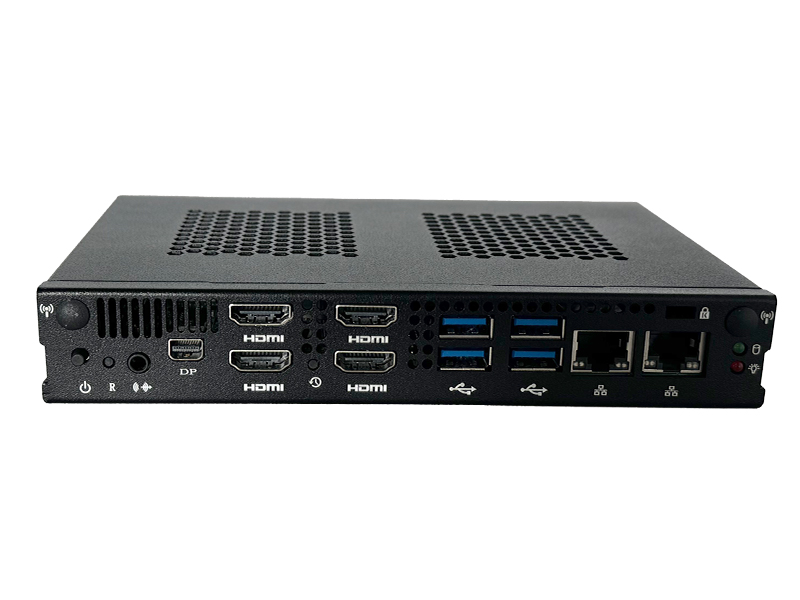

AOS-SDN1041S3D


Product introduction£º
Product introduction
2-3 Display Multi-Screen Terminal
Multi-Screen Display and Playback Terminal
Alder Lake Platform N95/N97/N100/N105/N200/I3 N300/I3 N305 (8-core) CPU optional
Supports 4 USB ports (4 USB 3.1)
Supports Gigabit Ethernet (optional dual Ethernet) and Type-C
Supports 4x HDMI 2.0 + DP 1.4 + LVDS (4-screen synchronous/asynchronous display)
Supports up to 3-channel 4K (3840 x 2160)
Supports Wake-on-LAN, EUP energy saving, power-on start, watchdog timer, etc.
Complies with CE, FCC, and ROHS regulations
Dimensions: 180mm x 119mm x 30mm
Specification
Cpu | CPU | Intel Alder lake N100 CPU Or Supports N95/N97/N105/N200/I3 N300/I3 N305(8core)Choice |
Chipset | Intel® SOC | |
BIOS | AMI 32Mbit, Diskless boot, Networking awakeing, Power-on boot, watchdog, ect | |
Memory | Capacity | 4GB SO-DIMM 1xDDR4 2400 MHz memory , Max.32GB |
Storage | SATA M.2
| 2.5¨•HDD(Choice) 1Xm.2 NGFF/NVME |
Disply | Integrated garphics output
| CPU Intel® UHD Graphics 4*HDMI+DP Single Disply,dual Disply,Triple Dieply¡¢quad£¨Synchronous/Asynchronous/Splicing Disply£© 1 ¡ÁHDMI2.0 £¨Max£º4096x2304 60HZ£© 1X DP1.4 (Support£º4096*230460HZ)4K LVDS/EDP |
Internet | Lan WIFI | 1 ¡Á 10/100/1000M(Choice2*RJ45) 1 x WIFI Module support 802.11b/g/n £¨M.2 PCIE half card£© |
I/O | USB 3.1 Type-c Power button COM LED Light One-click restore DC JACK Audio | 4x USB3.1 1x type-c(Choice RJ45 LAN) 1 ¡Á power button 1 ¡Á RS232 COM£¨Choice£© 1 x Power Light &1xHDDLight 1 x One-click restore for the hardware system 1 ¡Á DC JACK 1 ¡Á LINE-OUT & MIC-IN |
Power | Input Rated Power | DC 12~19V 45-90W |
WatchDog | Input Interval | Interrupt, system restart 255 time interval |
Physical Parameters | Dimension | 180mm (L) x 119mm (W)x30mm(H) |
Environment | Temperature Humidity | Working Temp.: 0¡ãC ~50¡ãC, Storage Temp.: -20~70¡ãC 5%~90% No Condensation |
Operating System | Version | Windows 10/Windows 11 / Linux |
Ordering Informations
Sales Model | Sperification |
AOS-SDN1041S3D | CPU£ºN100 4G Memory 128G SSD |
AOS-SDN15041S3D | CPU£ºN150 4G Memory 128G SSD |
AOS-SDN9741S3D | CPU£ºN97 4G Memory 128G SSD |
AOS-SDN9541S3D | CPU£ºN95 4G Memory 128G SSD |
AOS-SDN10541S3D | CPU£ºN105 4G Memory 128G SSD |
AOS-SDN20041S3D | CPU£ºN200 4G Memory 128G SSD |
AOS-SDN30041S3D | CPU£ºN300 4G Memory 128G SSD |
AOS-SDN30541S3D | CPU£ºN305 4GÄÚ´æ 128G SSD |
Areas of Appliation
Application to Educational£¬Restaurant£¬Hotel£¬Shopping£¬Compang meeting£¬Goverment Affairs Disclosur¡£
